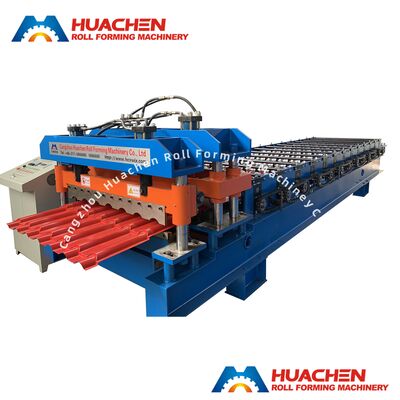

4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating

4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating
4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating
4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating 4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating 4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating

Large Image :  4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC24-161-970
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Contact Now

4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 1200mm Roller Stations: 13stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: Φ70mm
Cutter Material: CR12 Drive Type: Chain Drive
Speed: 4m/min Total Power: 5.5 + 5.5 KW
Voltage: 380V 50Hz 3 Phases
Highlight:

roll forming equipment

,

cold roll forming machine

6.5T Steel Glazed Tile Roll Forming Machine
Production Speed: 2-4 m/min | 10 Years Life Time
This glazed tile roofing sheet machine is designed for manufacturing high-quality glazed tile roofing sheets used in various construction applications including residential buildings, commercial complexes, industrial plants, shopping malls, stadiums, hotels, villas, and greenhouses. The equipment can be customized according to specific customer requirements.
Production Process
Uncoiling → Feeding material into machine → Roll forming → Measuring length → Step formed → Auto cutting → Products receiving
Main Technical Parameters
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1200mm
Roller Stations 13 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 4 m/min
Total Power 5.5 + 5.5 KW
Voltage 380V 50Hz 3 phases
Component Specifications
5T Manual Decoiler
4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating 0
Supports coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable). Equipped with brake device to prevent machine damage from impact during operation.
Feeding Table & Pre-Cutter
4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating 1
Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.
Shaft & Roller
4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating 2
Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.
Hydraulic Pump Station
4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating 3
Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.
Touch Screen Control Cabinet
4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating 4
Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.
Pressing Section & Cutter
4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating 5
Blade and pressing mould material is CR12. Features high strength, excellent hardenability, and superior wear resistance.
Output Table
4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating 6
Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.
Included Spare Parts
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Machine Gallery
4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating 7 4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating 8 4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating 9 4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating 10
Key Advantages
Professional Expertise
15 years' rich experience! Specialized in roll forming machine since 1998 with continuous quality improvements.
Competitive Pricing
Save your money from every part! Benefits from low labor cost, convenient transportation, and complete supporting industries.
PLC Control System
Ensuring high accuracy and easy operation! Full automatic operation: simply input sheet length and quantity requirements.
OEM / ODM Services
Customers' design, color & logo are also accepted! Our specialized experts and skilled workers ensure high quality manufacturing.
Comprehensive Warranty
One-year warranty with whole life service! Replacement parts supplied free of charge for any damaged parts caused by quality problems within warranty period.
Our Services
  • One-Year Product Warranty
  • Training and Installation Available
  • Technical Support for the Entire Machine Life
Frequently Asked Questions
Can you make the machine according to my design or photo type?
Yes. We have an experienced team to work out the most suitable design and production plan for the machine.
How can we be assured that you will deliver us quality machine with spare parts?
1. Customers can send technical people to our factory for quality checking. 2. We can send technicians to the buyer's factory for machine installation.
What is your guarantee policy?
Within the one-year period, we supply replacement parts free of charge for any damaged parts caused by quality problems. After two years, parts are available at factory cost.
