4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations Roller

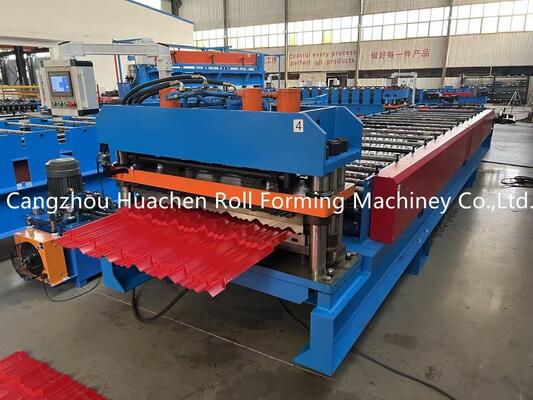

Large Image : 4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations Roller

Product Details:

Place of Origin:	China
Brand Name:	HC
Certification:	CE
Model Number:	HC25-196-1000-1200

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time:	25-30 days
Payment Terms:	T/T,L/C
Supply Ability:	20 sets/month

Contact Now

4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations Roller

Description

Material Type:	PPGI/GI	Material Thickness:	0.3-0.6mm
Material Width:	1000mm,1200mm	Roller Stations:	12Stations
Roller & Shaft Material:	45# Steel Quenching And Plating	Diameter Of Shaft:	Φ70mm
Cutter Material:	CR12	Drive Type:	Chain Drive
Speed:	4m/min	Total Power:	5.5+5.5KW
Voltage:	380V 50Hz 3Phases
Highlight:	roll forming equipment , cold roll forming machine

4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine 1200mm Coil Width

Dominica style 1220mm coil width glazed tile metal roofing roll forming machine

Technical Specifications

Parameter	Specification
Material Type	PPGI/GI
Thickness	0.3-0.6mm
Width	1000mm, 1200mm
Roller Stations	12 Stations
Roller & Shaft Material	45# Steel Quenching and Plating
Diameter of Shaft	Φ70mm
Cutter Material	CR12
Drive Type	Chain Drive
Speed	4 m/min
Total Power	5.5 + 5.5 KW
Voltage	380V 50Hz 3 phases

Component Specifications

5T Manual Decoiler

This part is used to support coil and make the coil rotate. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.

Feeding Table & Pre-Cutter

Guides the coil into correct position for roll forming. Includes hand pull cutting device for pre-cutting when changing color or thickness.

Shaft & Roller

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch sheets during operation.

Hydraulic Pump Station

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

Touch Screen Control Cabinet

Features automatic and manual modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system.

Electrical Component Brands:

VFD: Delta
Circuit breaker: Delixi
Contactor: Delixi
Relay: Xinling
PLC: Delta
Transformer: Delixi

Pressing Section & Cutter

Blade and pressing mould material is CR12. Features high strength, excellent hardenability, and good wear resistance.

Output Table

Collects formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.

Spare Parts Included

Part	Quantity
Chains	2 Sets
Solenoid Valve	1 Set
Travel Switch	2 Sets
Open-End Wrenches	2 Sets
Hexagon Wrench	2 Sets
Counter	1 Set
Wrench	2 Sets
Oil Seals	1 Set

Troubleshooting Guide

1. Oil pump cannot start, manual cannot work:

(1) Zero line not fixed. Voltmeter shows more than 200V normal, more than 200V indicates zero line fault.

(2) Emergency stop button locked. Rotate clockwise to release.

2. Oil pump can be started but cannot be manually operated:

Hand auto button not in manual position or damaged.

3. Manual normal, but no automatic:

(1) Automatic hand knob not in automatic position or damaged. Start button damaged.

(2) Knife not reversed at upper limit or upper and lower limits.

(3) Mold not reversed at upper limit or upper and lower limits.

(4) Data setting error.

4. Knife keeps going up and pump is blocked:

(1) Upper limit improperly adjusted or switch damaged.

(2) K1 and K2 reversed.

(3) Solenoid valve stuck. Turn off oil pump and press knife to cut off. When hearing "click" sound, turn on pump and raise knife to upper limit position.

5. Knife keeps moving downwards and holds pump:

(1) Lower limit improperly adjusted or switch damaged.

(2) Solenoid valve stuck. Turn off oil pump, press knife to cut off. When hearing "click" sound, turn on pump to raise knife to upper limit position.

6. Mold keeps going upwards and holds oil pump:

(1) Upper limit improperly adjusted or switch damaged.

(2) K3 and K4 reversed.

(3) Solenoid valve stuck. Turn off oil pump and press down on lift and pressure type respectively. When hearing "click" sound, turn on pump to raise mold to upper limit position.

7. Mold keeps going downwards and holds pump:

(1) Lower limit improperly adjusted or switch damaged.

(2) K3 and K4 reversed.

(3) Solenoid valve stuck. Turn off oil pump and press down pressure boosting type. When hearing "click" sound, turn on pump and raise knife to upper limit position.
