1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction

Name: 1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction
Brand: Cangzhou Huachen Roll Forming Machinery Co., Ltd.
SKU: HC40-165-990
Price: 35,950.00 USD
Availability: InStock

All Products

Glazed Tile Roll Forming Machine
(132)

Roofing Sheet Roll Forming Machine
(166)

Double Layer Roll Forming Machine
(231)

Wall Panel Roll Forming Machine
(51)

Ridge Cap Roll Forming Machine
(58)

Door Frame Roll Forming Machine
(29)

Shutter Door Roll Forming Machine
(57)

Floor Deck Roll Forming Machine
(57)

Downspout Roll Forming Machine
(32)

Slitter Cutter Machine
(30)

Cold Roll Forming Machine
(22)

CZ Purlin Roll Forming Machine
(59)

Gutter Roll Forming Machine
(50)

Stone Coated Roof Tile Machine
(11)

Highway Guardrail Forming Machine
(14)

Sandwich Panel Roll Forming Machine
(8)

Roof Sheet Crimping Machine
(12)

Corrugated Roll Forming Machine
(19)

Stud And Track Roll Forming Machine
(55)

Best Products

CE Steel Glazed Tile Roll Forming Machine 380V

Glazed Steel Tile Roll Forming Machine 220V 60Hz 3 Phase

2m/Min PLC Control Antique Glazed Tile Roll Forming Machine

Customer Reviews

Machine easy to use. The boss is very nice.

—— Mr.Angolon From Europe

This is a good manufacturer, a good English communicater, and I like your machines. It is good quality, and pretty!

—— Mr.Mark From Africa

Nice supplier! I like your swift delivery and quick production cycle, will keep in touch with you guys.

—— Mr.Jack From America

I'm Online Chat Now

1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction

Large Image : 1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction

Product Details:

Place of Origin:	China
Brand Name:	HC
Certification:	CE
Model Number:	HC40-165-990

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time:	25-30days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/month

Contact Now

1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction

Description

Material Type:	PPGI/GI	Material Width:	1220mm
Material Thickness:	0.3-0.6mm	Roller Stations:	18Stations
Roller & Shaft Material:	45# Steel Quenching And Plating	Diameter Of Shaft:	Φ70mm
Cutter Material:	CR12	Drive Type:	Chain Drive
Speed:	4m/min	Total Power:	5.5+5.5KW
Voltage:	380V 50Hz 3Phases(can Be Customized)
Highlight:	roll forming equipment , cold roll forming machine

1220 Width Panel Glazed Tile Roll Forming Machine For Steel Construction

Product Overview

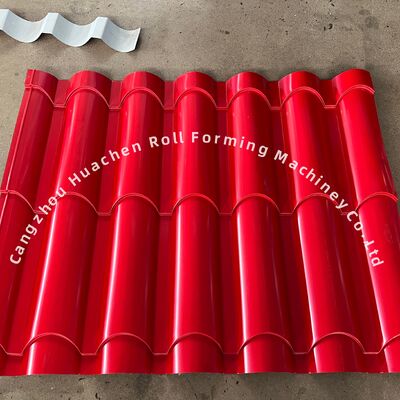

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.

Production Process

Decoiling the sheet
Sheet guiding
Roll forming
Measure length
Cutting the panel
Panels to the supporter

Technical Specifications

Parameter	Specification
Material Type	PPGI/GI
Thickness	0.3-0.6mm
Width	1220mm
Roller Stations	18 Stations
Roller & Shaft Material	45# Steel Quenching and Plating
Diameter of Shaft	Φ70mm
Cutter Material	CR12
Drive Type	Chain Drive
Speed	4 m/min
Total Power	5.5 + 5.5 KW
Voltage	380V 50Hz 3 phases

Component Details

5T Manual Decoiler

This component supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.

Feeding Table & Pre-Cutter

Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

Shaft & Roller

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.

Hydraulic Pump Station

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

Touch Screen Control Cabinet

Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

Pressing Section & Cutter

Blade and pressing mould material is CR12. Features high strength, excellent hardenability, and superior wear resistance.

Output Table

Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.

Spare Parts Included

Component	Quantity
Chains	2 Sets
Solenoid Valve	1 Set
Travel Switch	2 Sets
Open-End Wrenches	2 Sets
Hexagon Wrench	2 Sets
Counter	1 Set
Wrench	2 Sets
Oil Seals	1 Set

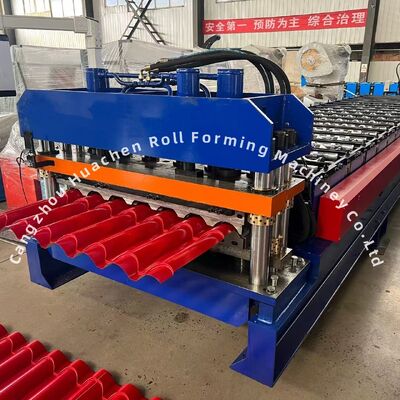

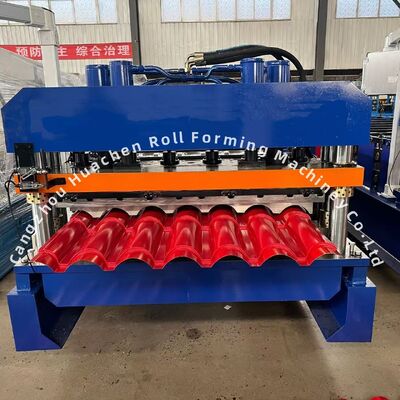

Additional Machine Images

Frequently Asked Questions

Can you make the machine according to my design or photo type?

Yes. We have an experienced team to work out the most suitable design and production plan for the machine.

How can we be assured that you will deliver us quality machine with spare parts?

1. Customers to send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer's factory for the installation of the machine.

What policy of your guarantee?

Within the One-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems after two years, you need to buy by factory cost.

Tag:

Contact Person: Miss. Jing

Tel: +86 188 2511 7789

Fax: +86-317-5666689
