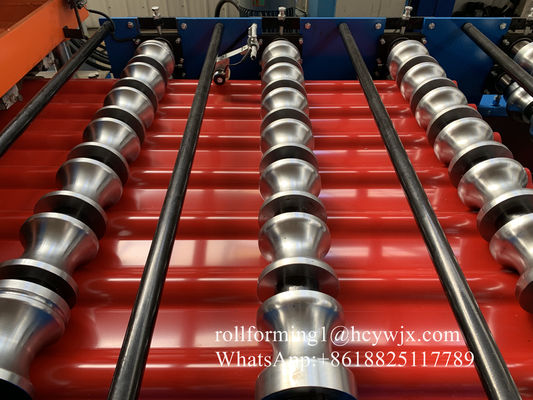

Metecopo Steptile Corrugating Machine

Metecopo Steptile Corrugating Machine
Metecopo Steptile Corrugating Machine Metecopo Steptile Corrugating Machine Metecopo Steptile Corrugating Machine Metecopo Steptile Corrugating Machine Metecopo Steptile Corrugating Machine

Large Image :  Metecopo Steptile Corrugating Machine

Product Details:
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO/CE
Model Number: HC24-161-970-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30Days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 Sets/Month

Metecopo Steptile Corrugating Machine

Description
Weight: 4-5T Usage: Glazed Tile Roofing Panel
Control System: PLC Control Feeding Width: 1200mm
Material Thickness: 0.3-0.6mm Warranty: 12 Months After Shipping
Voltage: 380V 50Hz 3Phases
High Light:

roll forming equipment

,

cold roll forming machine

Glazed Steel tile Cold Roll Former for Manufacturing Steel Tiles



Specification

Uncoil manual uncoil
Raw material thickness 0.2mm-0.8mm
Material as your requirements
Machine dimension 8500mm*1200mm*1300mm(L*W*H)
Feeding width according to your profile
Forming station 13-18 steps or more
Shaft diameter 70 mm
Shaft material high grade 45# steel
Roller material high grade 45# steel,coated with 0.05mm chrome
Forming speed 3-4m/ min(adjustable)
Transmission type chain transmission
Machine frame stand welded structural steel,thickness is 18mm
Motor from Shanghai,China
Main motor power 7.5 kw
Cutting type stop hydraulic cutting
Cutting power 5.5 kw
Cutter material Cr12 with quenched treatment HRC 58-62
Cutting length error ±1mm
Voltage 380V & 50HZ & 3 or according to your requirement
Control system PLC control system
Size of PLC 700mm*1000mm*300mm



Description:


Composition of machine
Roll forming main machine……………………………1 unit
Cutting system………………………………………..1 unit
Pressing system………………………………………1 unit
Manual de-coiler……………………………………… 1 unit
Control panel…………………………………………..1 unit
Hydraulic station…………………………………… …1 unit
Manual out table……………………… ……………….2 unit
Spare tools……………………………………………...1 box



Applications:



The Roofing tile roll forming machine design allows for the production of traditional tile panels and fastened tile panels. The step width and depth can be varied via the touch screen control. It produces a profile that has an adjustable depth and an adjustable reveal that gives panels the true appearance of clay tiles. This machine can produce through fastened panels in steel. It is capable of forming two different roof tiles with the same tooling, creating a perfect, scrape-free finish.



Metecopo Steptile Corrugating Machine 0Metecopo Steptile Corrugating Machine 1Metecopo Steptile Corrugating Machine 2Metecopo Steptile Corrugating Machine 3

Competitive Advantage:

One roofing tile roll forming machine only can produce one profile, we can manufacture as per customer

provided drawings or real objects of sectional materials, customization is welcome. The following is some

profiles as reference.



We have developed more than 10 series of steel roof metalic sheet machine which can meet the requirements of all steel construction, such as production lines for wall &roof sheet, color steel tile, C&Z&Wshape purlin and floor decking sheet as well as production line for all kinds of sandwich panels, curving machines for roof sheets. We also supply production lines of guardril sheet for expressway, shutter doors,garages doors downpipe. Besides, we devoted to the research and development of various kinds of other products related to steel structure, shearing machine, slitting machine, etc



FAQ

1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

3. How to visit your company?

Fly to Beijing Airport,we can pick you up to our factory.

4. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts free,but you need pay the express cost yourself.if after warranty period,we can through negotiation to solve the problems,and we supply the technical support for the whole life of the equipment.

5. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.
