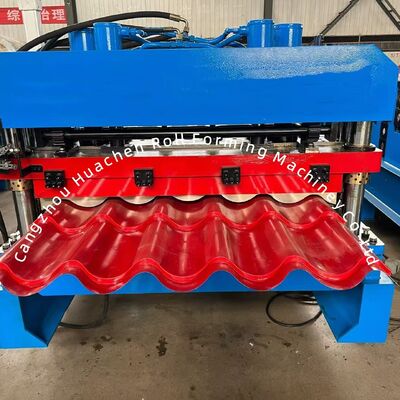

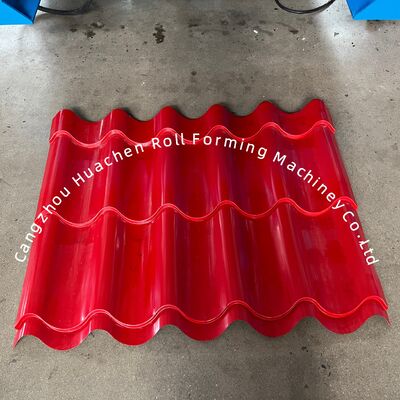

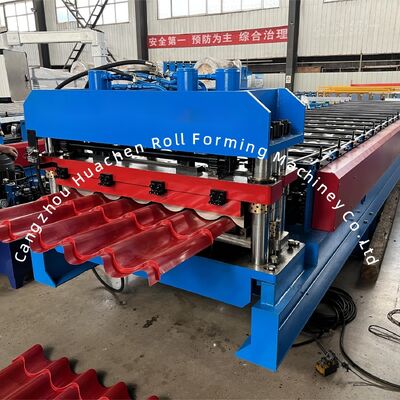

Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile

Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile
Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile
Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile

Large Image :  Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC40-200-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30 days
Payment Terms: L/C,T/T
Supply Ability: 20 sets per month
Contact Now

Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 1220mm Roller Stations: 18Stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: Φ70mm
Cutter Material: CR12 Drive Type: Chain Drive
Speed: 4m/min Total Power: 5.5+5.5KW
Voltage: 380V 50Hz 3Phases(can Be Customized)
Highlight:

roll forming equipment

,

roof tile roll forming machine

Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine
Product Overview

Professional metal roof tile roll forming machine designed for color steel tile production with customizable 13-22 forming stations.

Key Features
  • Impeccable performance
  • Robust construction
  • Maintenance free operation
  • Long functional life
Technical Specifications
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1220mm
Roller Stations 18 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 4 m/min
Total Power 5.5 + 5.5 KW
Voltage 380V 50Hz 3 phases
Machine Components
5T Manual Decoiler
Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile 0

Supports coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable). Equipped with brake device to prevent machine damage from impact during operation.

Feeding Table & Pre-Cutter
Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile 1

Guides coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

Shaft & Roller Assembly
Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile 2

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.

Hydraulic Pump Station
Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile 3

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling. Solenoid valve brand: Huade.

Touch Screen Control Cabinet
Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile 4

Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

Pressing Section & Cutter
Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile 5
Output Table
Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile 6

Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.

Included Spare Parts
Component Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Note: All parameters can be customized according to your specific requirements.
Operation Process
  1. Decoiling
  2. Feeding & Guiding
  3. Roll Forming
  4. Cutting
  5. Finished Products to Support Table
Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile 7
Packing and Delivery Information
  1. Main Steel Villa Roof Glazed Tile Roll Forming Machine and un-coiler is nude packing (water-proof plastic available upon request)
  2. PLC control system and motor pump are packed with water proof paper, spare parts in carton box
  3. One set of machine requires a 40' container for shipping
Custom 13-22 Forming Station Metal Roof Tile Roll Forming Machine with 380V Voltage and 5.5+4KW Power for Color Steel Tile 8
