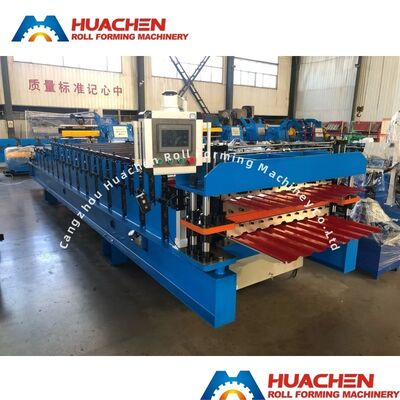

Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width

Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width
Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width
Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width

Large Image :  Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC8-18-1250
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Contact Now

Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 1250mm Roller Stations: Upper: 12 Stations; Down: 15 Stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: φ70mm
Cutter Material: Cr12 Drive Type: Chain Drive
Speed: 15m/min Total Power: 5.5+5.5kw
Voltage: 380V 50Hz 3phases(Customizable)
Highlight:

sheet metal roll forming machines

,

corrugated roll forming machine

Lightweight Aluminum Roof Double Layer Roll Forming Machine with Panasonic PLC Control
Product Overview
The Roof Panels manufactured by our Roll Forming Machine feature beautiful appearance and bright color. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures, and modern villas.
Production Workflow
Decoiling the sheet → Sheet guiding → Roll forming → Measure length → Cutting the panel → Panels to the supporter
Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width 0
Technical Specifications
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1250mm
Roller Stations Upper: 10 Stations; Down: 15 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (can be customized)
Component Details
Component Description & Specifications
5T Manual Decoiler Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width 1 This part supports coil and enables rotary movement.
  • Bearing capacity: 5T
  • Inner diameter: 470-530mm (adjustable)
  • Equipped with brake device to prevent machine damage
Feeding Table & Pre-Cutter Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width 2 Guides coil into correct position and directs to roll forming section. Includes hand pull cutting device for convenient pre-cutting during material changes.
Shaft & Roller Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width 3 Material: 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and prevent sheet scratching.
Hydraulic Pump Station Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width 4 Drives cutter for cutting operations. Uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling. Solenoid valve brand: Huade.
Touch Screen Control Cabinet Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width 5 Features automatic and manual modes. Allows setting unit length and quantity via touchscreen. Electrical components:
  • VFD: Delta
  • Circuit breaker: Delixi
  • Contactor: Delixi
  • Relay: Xinling
  • PLC: Delta
  • Transformer: Delixi
Pressing Section & Cutter Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width 6 Blade material: CR12. Features high strength, excellent hardenability, and superior wear resistance.
Output Table Collects formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.
Spare Parts Inventory
Part Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Additional Product Images
Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width 7 Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width 8 Lightweight Aluminum Roof Panel Roll Forming Machine with Panasonic PLC Control and 1250mm Material Width 9
Key Features & Benefits
Professional Expertise
15 years' rich experience! Specialized in roll forming machines since 1998 with continuous quality improvements.
Cost Efficiency
Save your money from every part! Benefits from low labor costs, convenient transportation, and complete supporting industries.
PLC Control System
Ensuring high accuracy and easy operation! Full automatic operation: Input sheet length and quantity, machine executes accordingly.
Customization Options
OEM / ODM services available! Accept customer designs, colors, and logos. Expert team ensures high-quality customization.
Warranty & Support
One-year warranty with lifetime service! Replacement parts provided free of charge for any quality-related issues within warranty period.
