Double Layer Roll Forming Machine for Glazed Panel with 1250mm Width, 15m/min Speed and PPGI/GI Material

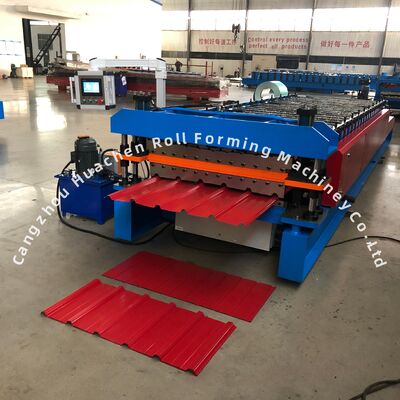

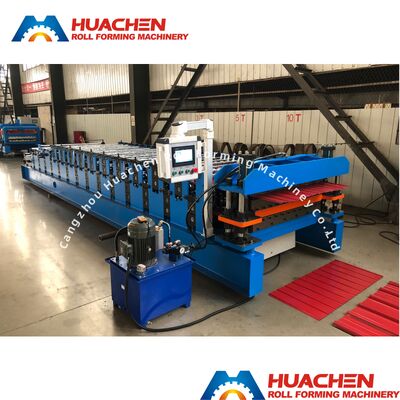

Large Image : Double Layer Roll Forming Machine for Glazed Panel with 1250mm Width, 15m/min Speed and PPGI/GI Material

Product Details:

Place of Origin:	China
Brand Name:	HC
Certification:	CE
Model Number:	HC10-25-1250

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time:	25-30days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/month

Contact Now

Double Layer Roll Forming Machine for Glazed Panel with 1250mm Width, 15m/min Speed and PPGI/GI Material

Description

Material Type:	PPGI/GI	Material Thickness:	0.3-0.6mm
Material Width:	1250mm	Roller Stations:	Upper:10stations ; Down:14stations
Roller & Shaft Material:	45# Steel Quenching And Plating	Diameter Of Shaft:	φ70mm
Cutter Material:	Cr12	Drive Type:	Chain Drive
Speed:	15m/min	Total Power:	5.5+5.5kw
Voltage:	380V 50Hz 3phases(Customizable)
Highlight:	sheet metal roll forming machines , corrugated roll forming machine

Glazed Panel Color Steel Double Layer Roll Forming Machine

CE certified sheet metal roll former for industrial manufacturing applications.

Technical Specifications

Parameter	Specification
Material Type	PPGI/GI
Thickness	0.3-0.6mm
Width	1250mm
Roller Stations	Upper: 10 Stations; Down: 14 Stations
Roller & Shaft Material	45# Steel Quenching and Plating
Diameter of Shaft	Φ70mm
Cutter Material	CR12
Drive Type	Chain Drive
Speed	15m/min
Total Power	5.5+5.5KW
Voltage	380V 50Hz 3Phases (can be customized)

Component & Technical Parameters

Component	Description
5T Manual Decoiler	This part is used to support coil and make the coil in a rotary way. Bearing capacity: 5T Inner diameter: 470-530mm (adjustable according to demand) Equipped with brake device to prevent machine damage from impact
Feeding Table & Pre-Cutter	Guides the coil into correct position and directs it to the roll forming part. Includes a hand pull cutting device for convenient pre-cutting when changing color or thickness.
Shaft & Roller	Material is 45# Steel Quenching and Plating. The processed rollers are smooth, hard and will not rust. Will not leave any scratches on the sheet when working.
Hydraulic Pump Station	Drives the cutter to start cutting works. The hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to ensure the oil pump station will not be affected by high oil temperature during working. Solenoid valve brand: Huade
Touch Screen Control Cabinet	The control cabinet has two modes: automatic and manual. The unit length of the targeted sheet and quantity can be set in the touchscreen. The system is simple and easy to operate. Electrical Component Brands: VFD: Delta Circuit breaker: Delixi Contactor: Delixi Relay: Xinling PLC: Delta Transformer: Delixi
Pressing Section & Cutter	The material of blade is CR12. With high strength, better hardenability and good wear resistance.
Output Table	This part is used to collect the formed products. The bracket is equipped with rollers to facilitate product forwarding without being scratched.

Spare Parts

Part	Quantity
Chains	2 Sets
Solenoid Valve	1 Set
Travel Switch	2 Sets
Open-End Wrenches	2 Sets
Hexagon Wrench	2 Sets
Counter	1 Set
Wrench	2 Sets
Oil Seals	1 Set

Flow Chart

Frequently Asked Questions

What's your delivery time?

Depending on the type of machine, duration of 1.5 days to 60 days from the date of order.

Do you have after-sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

Do you sell only standard machines?

No, most of our machines are built according to customers specifications, using top brand components.

What will you do if the machine is broken?

Our machine's warranty period is 12 months. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Can you be responsible for transport?

Yes, please tell me the destination port or address. We have rich experience in transporting.

How to visit your company?

1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).

2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 h), then we can pick up you.

Can you make the machine according to my design or photo type?

Yes. We have an experienced team to work out the most suitable design and production plan for the machine.

How can we be assured that you will deliver us quality machine with spare parts?

1. Customers to send the technical people to our factory for checking the quality.

2. We can send the technicians to the buyer's factory for the installation of the machine.

What policy of your guarantee?

Within the One-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems after two years, you need to buy by factory cost.

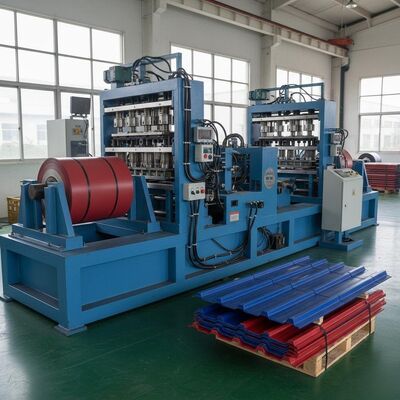

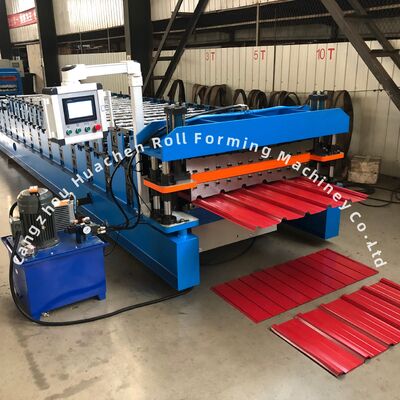

Additional Machine Images
