Double Layer Roof Sheet Roll Forming Machine

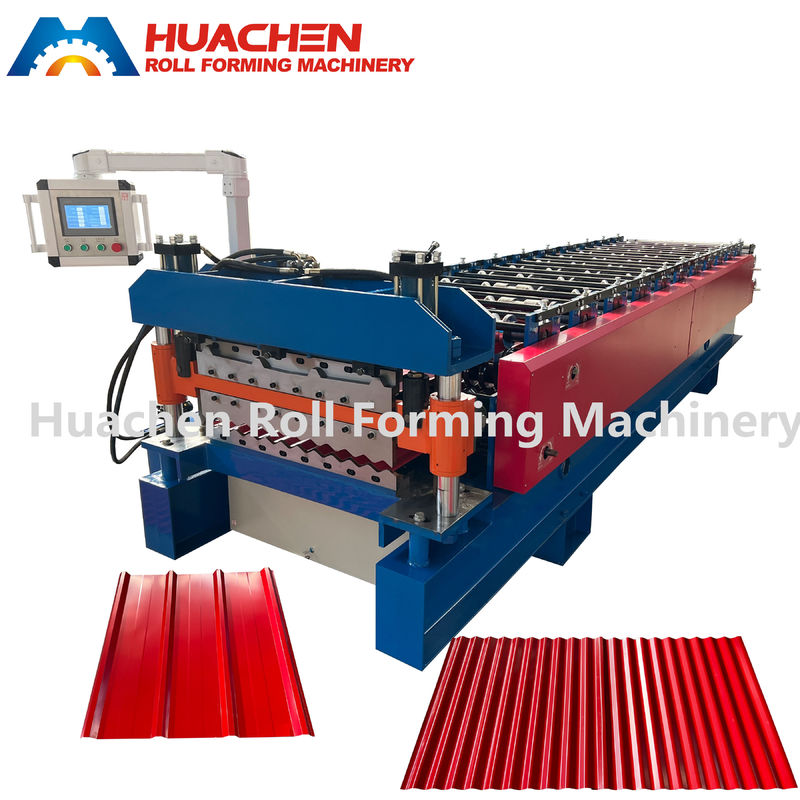

Large Image : Double Layer Roof Sheet Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	HC
Certification:	CE
Model Number:	HC26/25-1220

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Main machine is nude. The machine needs a 40GP container to be shipped by sea..
Delivery Time:	20-30 work days
Payment Terms:	L/C,T/T
Supply Ability:	20set per month

Contact Now

Double Layer Roof Sheet Roll Forming Machine

Description

Material Type:	PPGI/GI	Material Thickness:	0.3-0.6mm
Material Width:	1220mm	Roller Stations:	11+12 Stations
Roller & Shaft Material:	45# Steel Quenching And Plating	Diameter Of Shaft:	Φ70mm
Cutter Material:	CR12	Drive Type:	Chain Drive
Speed:	20m/min	Total Power:	5.5+5.5KW
Voltage:	380v 50Hz 3phases(can Be Customized)
Highlight:	Roof Roll Forming Machine

Main Technical Parameters

Material	Type	PPGI/GI
	Thickness	0.3-0.6mm
	Width	1220mm
Roller Stations		11+12Stations
Roller & Shaft Material		45# Steel Quenching and Plating
Diameter of Shaft		Φ70mm
Cutter Material		CR12
Drive Type		Chain Drive
Speed		20m/min
Total Power		5.5+5.5KW
Voltage		380V 50Hz 3Phases

Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

Decoiler

This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

Feeding Table & Pre-Cutter

Guide the coil come into the correct position and passed to the roll forming machine.
Also including a pre-cut device, it is convenient to pre-cut the coil when want to using other color or thickness coils.

Hydraulic Pump Station
It use 46# hydraulic oil.
The purpose of this pumping station is to
Supply the power to the cutter, so that the cutter can work.

Shaft & Roller
Material is 45# Steel with Chrome Treatment.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual. It can be adjusted according to operation requirement.
The unit length of the targeted sheet can be set in the control cabinet.
The system is simple and easy to operate.

Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
