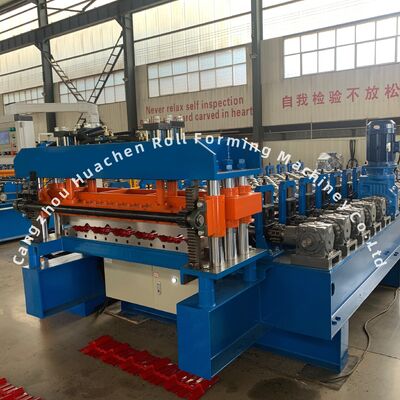

CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets

CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets
CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets
CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets

Large Image :  CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC24-200-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30 work days
Payment Terms: L/C,T/T
Supply Ability: 20 sets per month
Contact Now

CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 1200mm Roller Stations: 12Stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: Φ70mm
Cutter Material: CR12 Drive Type: Chain Drive
Speed: 4m/min Total Power: 5.5+5.5KW
Voltage: 380V 50Hz 3Phases(can Be Customized)
Highlight:

roll forming equipment

,

cold roll forming machine

CE Standard Steel Roofing Sheet Forming Machine with Safe Cover

With our in-depth knowledge and experience, we are engaged in manufacturing, exporting and supplying an excellent quality Metal Roof Glazed Tile Roll Forming Machine. Our machine is manufactured using optimum quality components and modular technology in adherence with international standards.

Key Features
  • Impeccable performance
  • Robust construction
  • Maintenance free operation
  • Long functional life
Technical Specifications
Main Technical Parameters
ParameterSpecification
Material TypePPGI/GI
Thickness0.3-0.6mm
Width1200mm
Roller Stations12 Stations
Roller & Shaft Material45# Steel Quenching and Plating
Diameter of ShaftΦ70mm
Cutter MaterialCR12
Drive TypeChain Drive
Speed4 m/min
Total Power5.5 + 5.5 KW
Voltage380V 50Hz 3 phases
Component Specifications
5T Manual Decoiler
CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets 0

This component supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.

Feeding Table & Pre-Cutter
CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets 1

Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

Shaft & Roller
CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets 2

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.

Hydraulic Pump Station
CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets 3

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

Touch Screen Control Cabinet
CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets 4

Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

Pressing Section & Cutter
CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets 5

Blade and pressing mould material is CR12. Features high strength, excellent hardenability, and superior wear resistance.

Output Table
CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets 6

Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.

Included Spare Parts
ComponentQuantity
Chains2 Sets
Solenoid Valve1 Set
Travel Switch2 Sets
Open-End Wrenches2 Sets
Hexagon Wrench2 Sets
Counter1 Set
Wrench2 Sets
Oil Seals1 Set
Operation Process

Decoiling → Feeding & Guiding → Roll Forming → Cutting → Finished Products To Support Table

CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets 7 CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets 8 CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets 9
Packing and Delivery Information
  • Main Steel Roof Glazed Tile Roll Forming Machine and un-coiler is nude packing (water-proof plastic available upon request)
  • PLC control system and motor pump are packed with water proof paper
  • Spare parts are packed in carton boxes
  • One set of machine requires a 40' container for shipping
CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets 10 CE Standard Glazed Tile Roll Forming Machine with 12 Stations and Chain Drive for Steel Roofing Sheets 11
