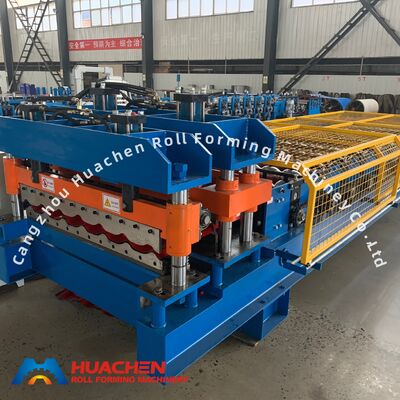

Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive

Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive
Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive
Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive

Large Image :  Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC25-180-1080
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Contact Now

Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive

Description
Material Type: PPGI/GI Material Width: 1250mm
Material Thickness: 0.3-0.6mm Roller Stations: 12Stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: Φ70mm
Cutter Material: CR12 Drive Type: Chain Drive
Speed: 4m/min Total Power: 5.5+5.5KW
Voltage: 380V 50Hz 3Phases(can Be Customized)
Highlight:

roll forming equipment

,

cold roll forming machine

Automatic Metal Roof Glazed Tile Roll Forming Machine 0.3 - 0.6mm Thickness
Product Overview

Professional supplier of automatic metal roof glazed tile roll forming machines with 15+ years of manufacturing experience.

Product Description

The roof panels produced by our roll forming machine feature beautiful appearance and bright colors, making them suitable for various applications including gardens, factories, resorts, hotels, exhibition halls, vacation lands, ancient architectures, and modern villas.

Working Process
  • Decoiling the sheet
  • Sheet guiding
  • Roll forming
  • Measure length
  • Cutting the panel
  • Panels to the supporter
Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive 0
Technical Specifications
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1250mm
Roller Stations 12 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 4 m/min
Total Power 5.5 + 5.5 KW
Voltage 380V 50Hz 3 phases
Component Specifications
5T Manual Decoiler
Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive 1

Supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.

Feeding Table & Pre-Cutter
Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive 2

Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

Shaft & Roller
Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive 3

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.

Hydraulic Pump Station
Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive 4

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

Touch Screen Control Cabinet
Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive 5

Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

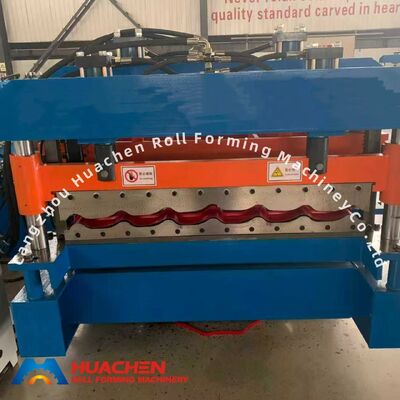

Pressing Section & Cutter
Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive 6

Blade and pressing mould material is CR12. Features high strength, excellent hardenability, and superior wear resistance.

Output Table
Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive 7

Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.

Included Spare Parts
Component Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive 8
Company Advantages
Professional 15 years' rich experience! Specialized in roll forming machine since 1998. Keeping improving the quality.
Low Price Save your money from every part! Low labor cost; Convenient transportation; Complete supporting industries.
PLC Control Ensuring high accuracy and easy to operate! Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
OEM / ODM Customers' design, color & logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
Warranty & Service One-Years warranty, whole life service! Within the One-YEAR period, we supply replacement parts free of charge for any damaged parts caused by quality problems.
Our Services
  • One-Year product warranty
  • Training and installation available
  • Technical support for the whole life
Frequently Asked Questions
Can you make the machine according to my design or photo type?

Yes. We have an experienced team to work out the most suitable design and production plan for the machine.

How can we be assured that you will deliver us quality machine with spare parts?

1. Customers can send technical people to our factory for checking the quality.
2. We can send technicians to the buyer's factory for the installation of the machine.

What is your guarantee policy?

Within the One-YEAR period, we supply replacement parts free of charge for any damaged parts caused by quality problems. After two years, you need to buy by factory cost.
