Product Details:
|
Type: | Chain Drive Tile Roll Forming Machine | Thickness: | 0.3-0.6mm |
---|---|---|---|
Width: | 1250mm | Warranty: | 1 Year |
Dimension: | 6.7*1.6*1.3m | Equipment Base: | 300H Steel Frame |
Highlight: | roll forming equipment,cold roll forming machine |

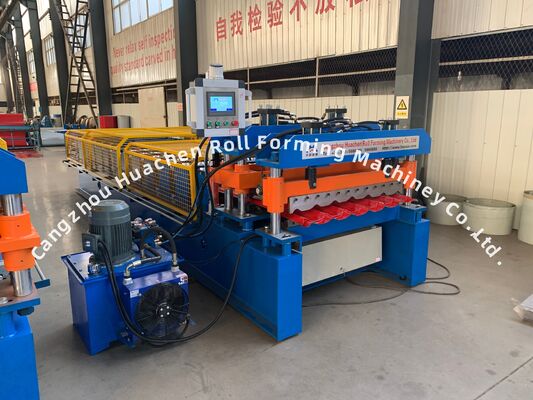

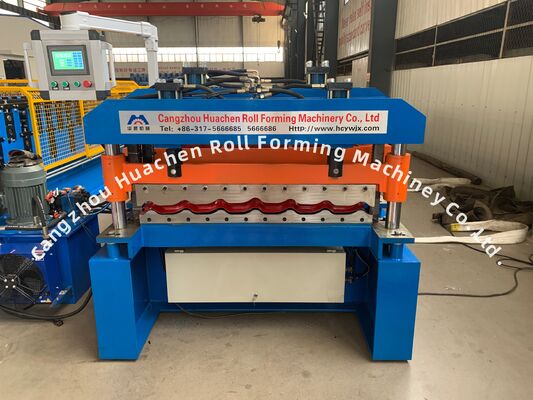

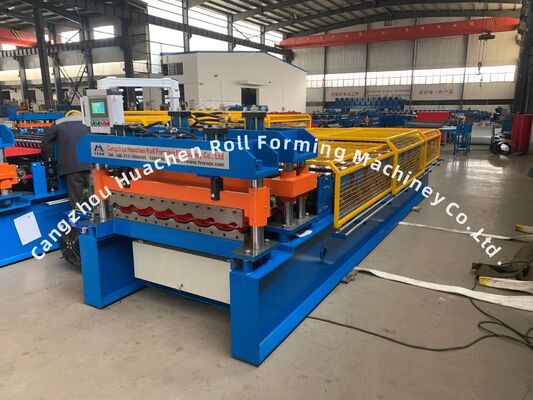

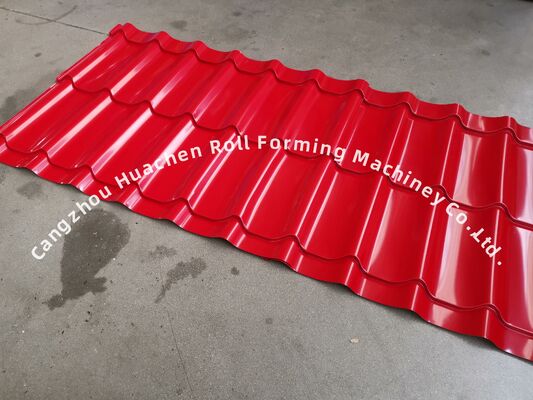

Product Show:
Note:
♦If the plate with a coating,the coating should be consistent with coating inspection standards of the relevant color-coated,should not have skin off,so as not to effect quality of roll forming.
♦If the material is galvanized steel,the galvanized should be consistent with the relevant testing standards of the galvanized steel,should not have zinc layer off,so as not to effect the quality of roll forming.
Working Flow& Layout
Material spec: | Color steel sheet; |
Thickness: | 0.4 mm to 0.8 mm |
Coil width: | depends |
Working speed: | 0-15m/min. (Nodal distance at 250mm) |
Cutting tolerance: | ±2mm |
Hydraulic station power: | 3Kw |
Main roller qty: | about 4 stands but depends on last design |
Type of cutting: | Roll-formed and length-set cutting |
Main body dimension: | About 1700mm*1300mm*1200mm |
Line Components and Characteristic
Spare parts(for free)
No. | Name | Quantity | Country |
1 | Rely | Several | China |
2 | Encoder | 1pcs | China |
3 | Fuses | 2pcs | China |
4 | Normal Button | 2pcs | China |
5 | Switch button | 2pcs | China |
6 | Forming station bearing | 1pcs | China |
7 | Sensor | 4pcs | China |
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.
Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!
The real data, the most professinal foreign trade team, your best trustable partner.
