Product Details:
|
Type: | Chain Drive Tile Roll Forming Machine | Thickness: | 0.3-0.8mm |
---|---|---|---|
Width: | 1220mm | Warranty: | 1year |
Equipment Base: | 300H Steel Frame | Roof Model: | Tile |
Roller Drive: | By Chain | Thickness Of Feeding: | 0.3-0.8mm |
Roller Shaft Diameter: | 80mm | Cutter Materia: | Cr12 Heat Treatment |
Hs Code: | 8455221000 | Weight: | 8.5T |
Highlight: | roll forming equipment,cold roll forming machine |
Main Components

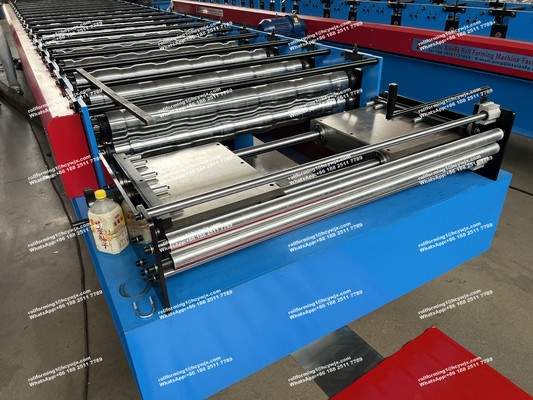

Decoiler / Uncoiler | 1 Unit |
Feeding Guide | 1 Unit |
Main Tile Roll Forming Machine | 1 Unit |
Hydraulic Pressing for Step | 1 Unit |
Hydraulic Cutting System | 1 Unit |
Hydraulic Station | 1 Unit |
PLC Computer Control Box | 1 Unit |
Support Tables | 2 Units |
Specifications

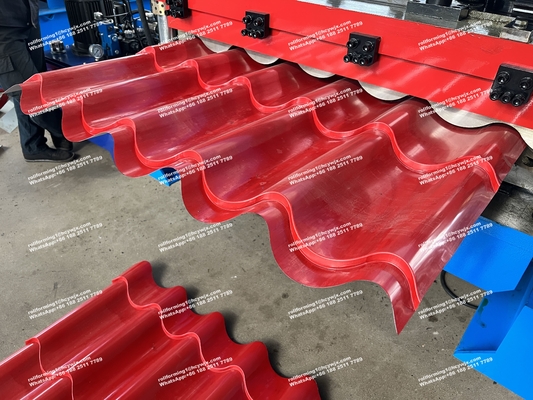

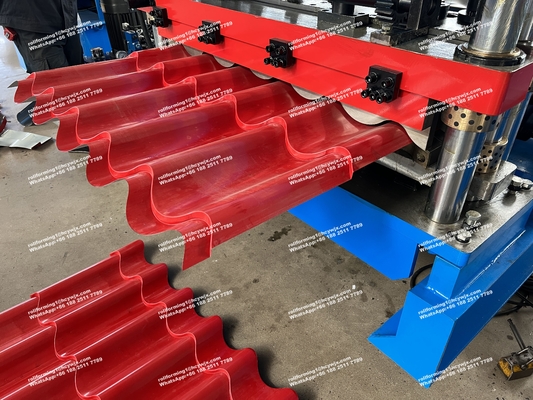

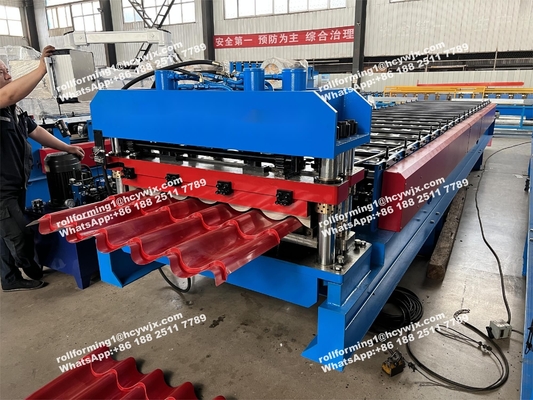

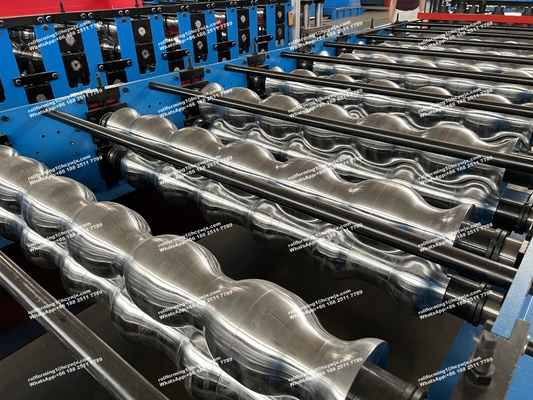

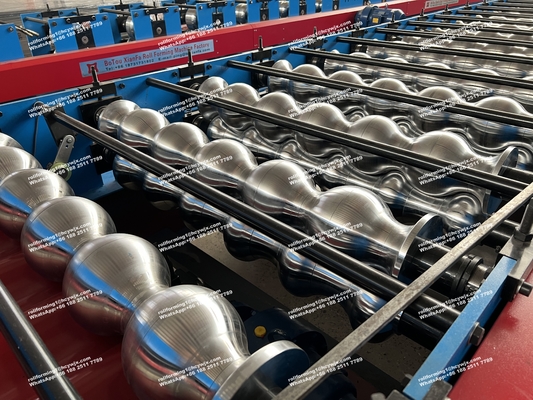

Machine Name | Glazed Roof Tile Roll Forming Machine | |
Material | Thickness | 0.3-0.8mm |
Coil width | Custom-made, 1000mm or 1220mm or 1250mm | |
Yield Strength | 250-300 Mpa | |
Material | PPGI, Color Steel, GI. | |
Decoiler / Uncoiler | Uncoiler Type | Manual or Hydraulic or Auto Type |
Coil Width | Max. 1250mm | |
I.D | 508-610mm | |
O.D | Max. 1500mm | |
Glazed Tile Roll Forming Machine | Forming Stations | 13-18 Stations ( Depend on Profiles ) |
Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
Diameter of shaft | 80mm | |
Shaft material | High grade 45# steel | |
Drive type | Chain transmission | |
Forming speed | 0-15m/min | |
Main power | 5.5KW | |
Pressing Device | Pressing Type | Hydraulic type pressing |
Pressing Mould | Cr12 Mov steel, HRC58-62 | |
Cutting Device | Cutting type | Hydraulic cutting |
Cutting Die Material | Cr12Mov steel, HRC58-62 | |
CuttingTolerance | 10m+/-1.5mm | |
Encoder | OMRON Brand | |
PLC Electrical Control Board | PLC | PANASONIC Brand |
Inverter | YASKAWA Brand | |
Touch screen | PANASONICE | |
Operation type | Touch screen & Button | |
Hydraulic Station | Hydraulic station | Famous Chinese brand |
Hydraulic Power | 5.5KW | |
Runout Tables | Table type | Simple nonpower type |
Function | To support the finished panels |
Maintenance of Steel Glazed Tile Roll Forming Machine
Daily maintenance plays an very importance role in extending the operation time and of roof color steel tile roll forming machine and the good quality finished roof tiles. The following points should be part of the machine's daily production and usage routine.
