Aluminum Roofing Sheet Roll Forming Machine Metal Tile Making Machine

Main Technical Parameters

Product Introduction

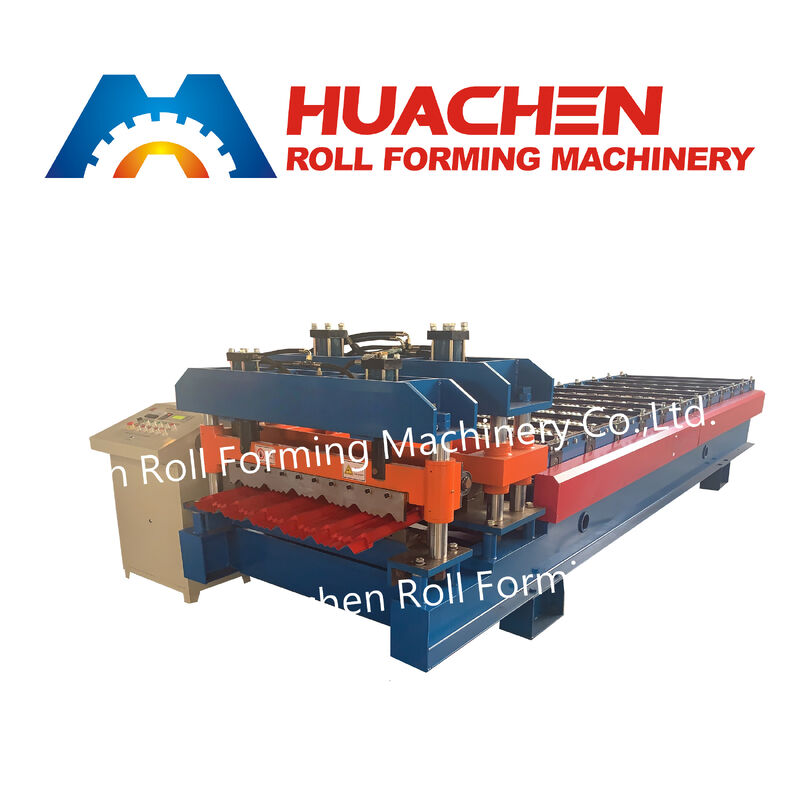

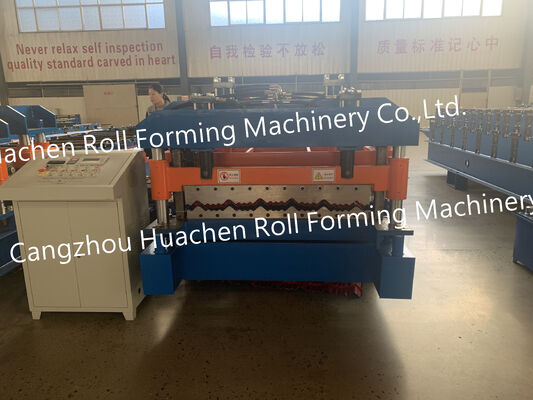

The 12 Station Color Steel Tile Roll Forming Machine is designed to continuously form steel sheets into roofing tile profiles. The forming process is completed through a series of roller stations, allowing the material to gradually reach the required shape.

This model is equipped with 12 roller stations, 45# steel rollers and shafts with quenching and plating, a Φ70mm shaft, and a CR12 cutter. It uses chain drive transmission and provides a specified forming speed of 15–20m/min.

Technical Specifications

Applications

The equipment is suitable for:

• Color steel tile manufacturing
• Metal roofing sheet production
• Roofing profile forming
• Steel structure material processing
• Building roof material production

Product Advantages

Efficient Roller Forming
The 12-station configuration supports progressive shaping of steel sheet through multiple forming stages.

45# Steel Roller System
The rollers and shafts are specified as 45# steel and receive quenching and plating treatment.

CR12 Cutting Material
The cutting section uses CR12 material for the specified machine configuration.

Chain Drive Structure
A chain transmission system is used to transfer mechanical power during operation.

Stable Production Configuration
The machine is specified to operate at 15–20m/min, making it suitable for continuous roofing profile forming.

Manufacturing & Quality

The machine is manufactured according to the confirmed technical configuration, covering the roller station quantity, roller and shaft material, shaft diameter, cutter material, drive system, speed, power, and voltage.

The machine specifications can be checked during assembly and before shipment to ensure they correspond with the confirmed requirements.

Why Choose This Machine?

For roofing profile production, the machine configuration should be selected according to the required profile shape, material, forming process, production speed, cutting requirements, and electrical supply.

This 12 Station Color Steel Tile Roll Forming Machine provides a defined configuration for continuous metal roofing profile manufacturing.

FAQ

How many forming stations does this machine have?
It has 12 roller stations.

What are the roller and shaft materials?
They are specified as 45# steel with quenching and plating treatment.

What is the shaft diameter?
The shaft diameter is Φ70mm.

Which material is used for the cutter?
The specified cutter material is CR12.

What is the machine speed?
The specified speed is 15–20m/min.

What voltage does the machine use?
The specification is 380V / 50Hz / 3 Phases.
