Rolling forming machine suitable for steel roof systems - Titanium metal

Main Technical Parameters

How the Machine Works

The production process begins with feeding metal coil into the forming section. The material then moves through 18 roller stations, where the rollers progressively shape it into the configured roofing profile. Once the sheet reaches the required length, the cutting system separates it for collection.

The finished profile depends on the roller design and machine configuration.

Main Technical Features

Progressive Roller Forming

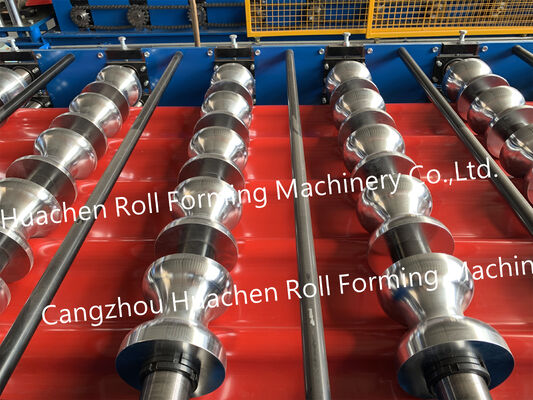

Eighteen roller stations are arranged to shape the metal strip through successive forming stages.

45# Steel Roller and Shaft Material
The specified roller and shaft material is 45# steel, with quenching and plating as the stated treatment process.

Φ70 mm Shaft Diameter
The machine uses shafts with a diameter of Φ70 mm.

CR12 Cutting Material
The cutting component uses CR12 material for the sheet-cutting process.

Chain Drive Transmission
The chain drive system transfers mechanical power to the forming section.

Specified Production Parameters
The machine operates at 15–20 m/min, with total power of 4+4 KW and an electrical supply specification of 380V, 50Hz, three phases.

Potential Applications

According to the selected profile and material configuration, the machine can be used in the production of metal roofing sheets for:

• Industrial buildings and workshops
• Warehouses and storage facilities
• Commercial roofing projects
• Agricultural structures
• General metal roofing applications

Buyers should confirm the required sheet profile and dimensions before placing an order.

Purchasing and Installation Considerations

When evaluating this roofing sheet forming machine, buyers should confirm the intended roofing profile, metal material, sheet dimensions, and cutting requirements. The installation site should also support the specified three-phase, 380V, 50Hz power supply.

The production speed and machine configuration should be assessed against the requirements of the intended manufacturing process.

Frequently Asked Questions

1. How many forming stations are included?
The machine is equipped with 18 roller stations.

2. What is the roller and shaft material?
The specified material is 45# steel, with quenching and plating.

3. What is the shaft diameter?
The shaft diameter is Φ70 mm.

4. Which material is used for the cutter?
The cutter material is CR12.

5. What is the production speed?
The specified speed is 15–20 m/min.

6. What are the power and voltage specifications?
Total power is 4+4 KW. The voltage specification is 380V, 50Hz, 3 phases.
