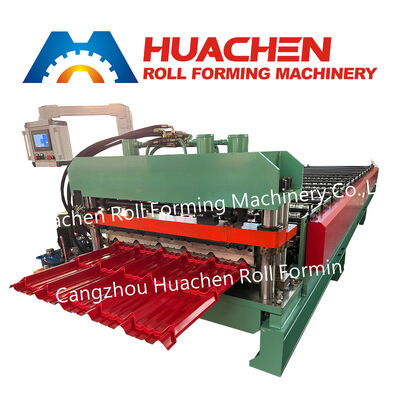

Steel Tile Roll Forming Corrugated Iron Roofing Sheet Making Machine for Sale

Main Technical Parameters

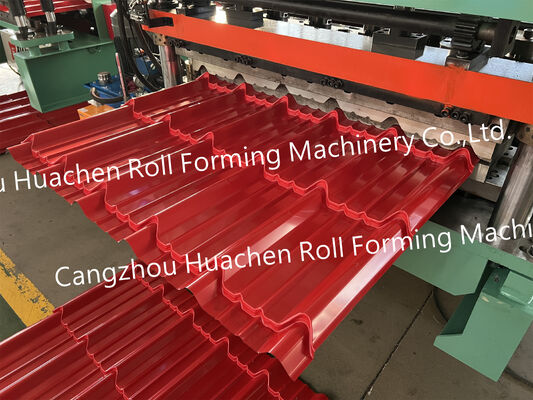

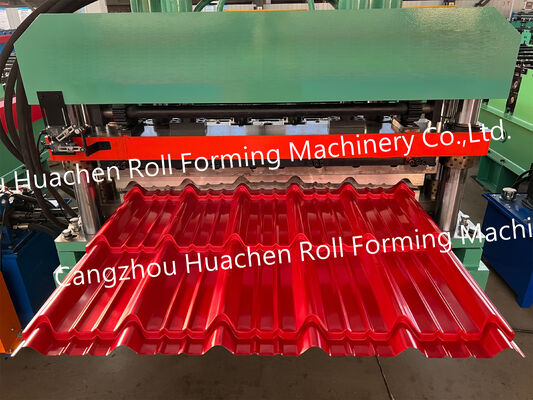

From Metal Coil to Roofing Sheet

The forming process is based on successive roller operations. After the metal strip enters the machine, the 12 stations progressively shape it into the required profile. The cutting unit then separates the formed material according to the production setup.

The final sheet design depends on the selected forming rollers and machine configuration.

Component Specifications Explained

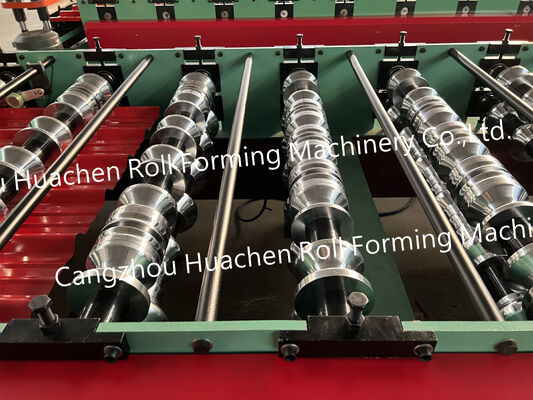

Forming rollers and shafts
The specified material is 45# steel, with quenching and plating. The shafts have a diameter of Φ70mm.

Twelve forming stations
The machine uses 12 roller stations to progressively shape the metal material during production.

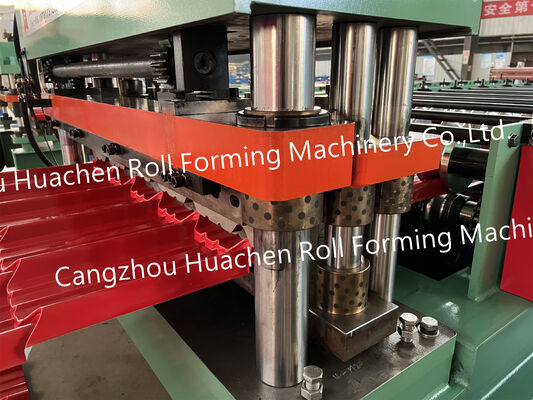

CR12 cutter
The cutting component is specified as CR12 material and is used to separate the formed sheet.

Chain drive
The machine uses a chain drive transmission arrangement to transfer power to the forming mechanism.

Power system
The total power is 4+4KW. The electrical specification is 380V, 50Hz, three-phase power.

Suitable Production Scenarios

With the appropriate roller profile, this type of equipment can be used by metal roofing manufacturers serving:

• Residential and commercial roofing projects
• Industrial plants and workshops
• Warehouses and storage buildings
• Agricultural structures
• General construction applications involving profiled metal sheets

Customers should confirm the required sheet shape, material thickness, and finished dimensions before selecting the machine configuration.

Common Buyer Questions

How many stations are used for forming?
The machine has 12 roller stations.

What is the machine's rated production speed?
The specified speed is 15–20m/min.

What are the roller and shaft material details?
They use 45# steel with quenching and plating.

What is the shaft diameter?
The specified diameter is Φ70mm.

What cutter material is listed?
The cutter material is CR12.

Which electrical supply is specified?
The machine is listed for 380V, 50Hz, 3 phases, with total power of 4+4KW.
