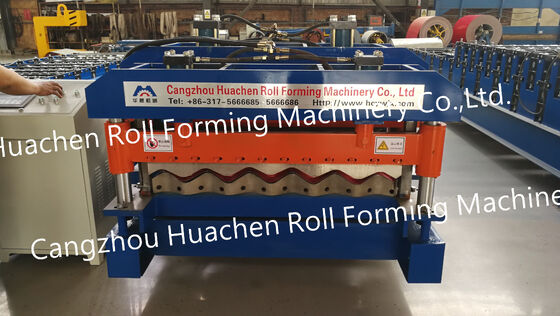

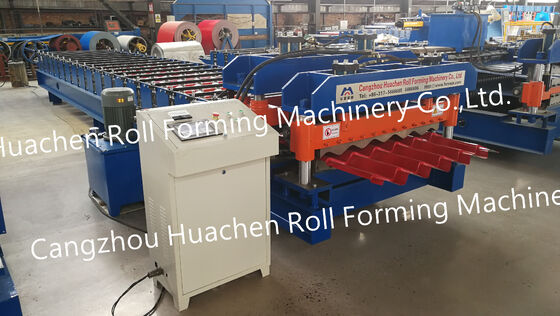

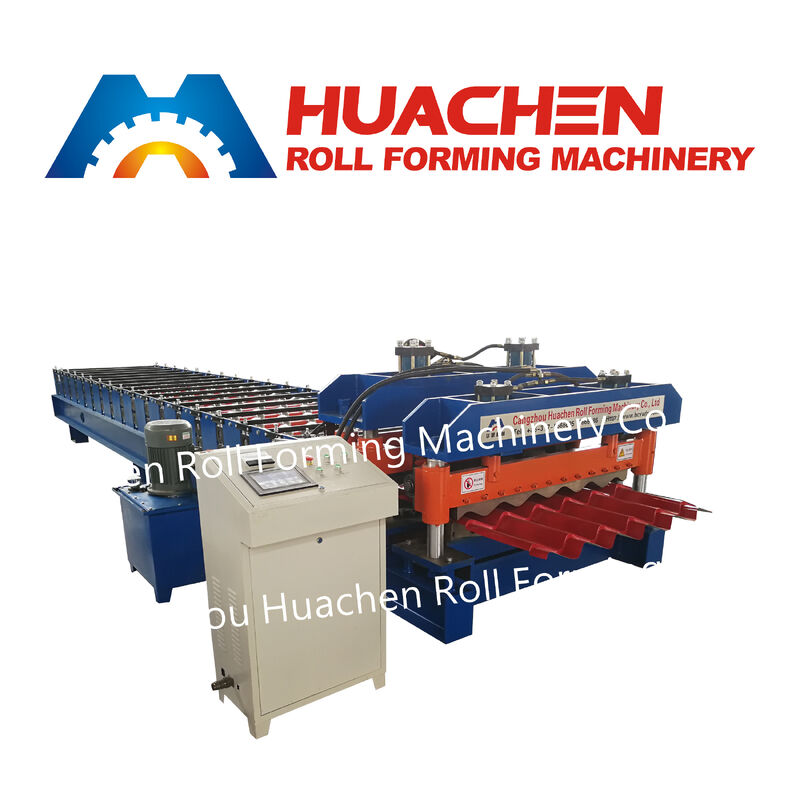

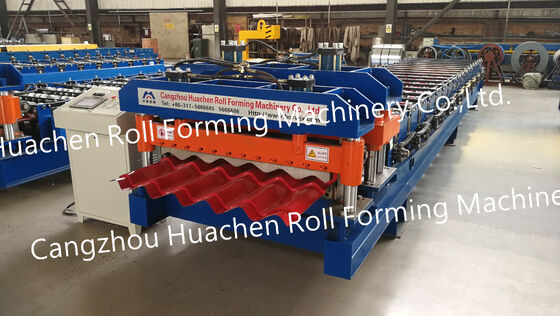

Steel Pbr Panel Roofing Sheet Roll Forming Machine with

Main Technical Parameters

Product Overview

Machine Configuration and Functions

1. Twelve-Station Forming System

The machine uses 12 roller stations to progressively shape metal material into the required roofing profile. The forming process takes place in successive stages as the material passes through the rollers.

2. Roller and Shaft Assembly

The rollers and shafts are made from 45# steel and undergo quenching and plating. The shaft diameter is Φ70 mm, providing the specified structural configuration for the forming section.

3. CR12 Cutting Component

The cutting system uses CR12 material. It is designed to cut the formed sheet according to the required production length and machine setup.

4. Chain Drive Transmission

A chain drive transfers power through the machine’s transmission system, supporting the movement of the forming rollers during operation.

5. Power and Production Speed

The machine has a total power configuration of 4+4 KW and operates at a specified speed of 15–20 m/min. Its electrical requirements are 380V, 50Hz, three-phase power.

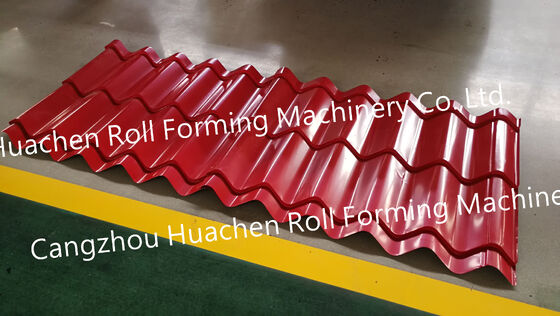

Typical Production Uses

Depending on the selected roller profile and machine setup, this type of equipment can be used for producing metal roofing sheets for:

• Industrial and commercial buildings
• Workshops and warehouses
• Agricultural buildings
• Roofing and exterior construction projects
• Other applications requiring formed metal roofing panels

The final sheet profile and dimensions depend on the machine’s forming design and configuration.

Information for Buyers

Before ordering, buyers should confirm the required roofing profile, sheet dimensions, material specifications, and production requirements with the manufacturer. Electrical compatibility should also be checked to ensure that the machine’s 380V, 50Hz, three-phase configuration matches the installation site.

Frequently Asked Questions

Q1: How many roller stations does this machine have?
It is equipped with 12 roller stations.

Q2: What materials are used for the rollers and shafts?
The specified material is 45# steel, with quenching and plating.

Q3: What is the shaft diameter?
The shaft diameter is Φ70 mm.

Q4: What is the cutting material?
The cutter material is CR12.

Q5: What is the operating speed?
The specified production speed is 15–20 m/min.

Q6: What are the machine’s power and voltage requirements?
The total power is 4+4 KW, and the voltage specification is 380V, 50Hz, 3 phases.
