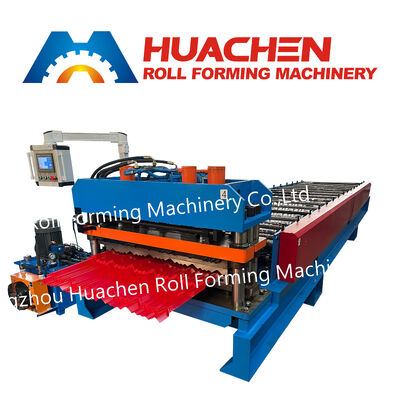

Aluminum and galvanized sheet metal color steel plate single-layer platform trapezoidal profile forming machine

Main Technical Parameters

Manufacturing Process

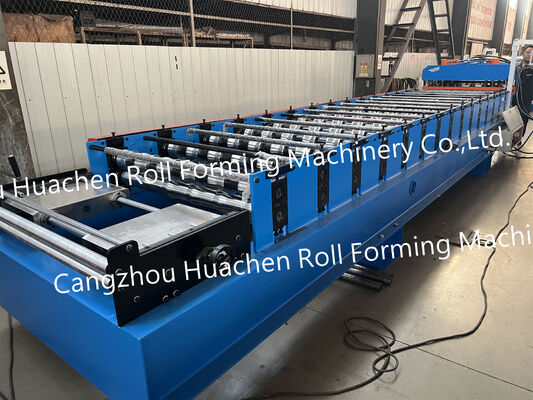

Metal Feeding and Forming

Metal material enters the machine and moves through the 12-station roller assembly. Each forming stage contributes to shaping the strip into the required roofing profile.

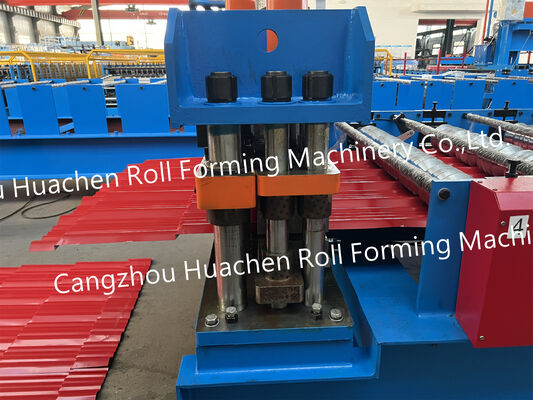

Profile Cutting

After forming, the cutting unit separates the sheet according to the specified production length. The cutter material listed for this model is CR12.

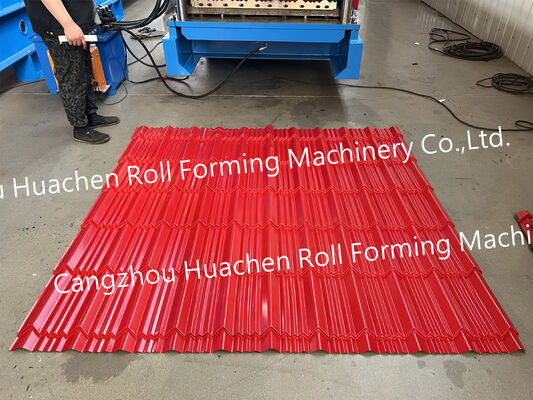

Finished Sheet Handling

The formed and cut sheets can then be collected for subsequent handling, storage, or installation.

The final roofing shape and dimensions depend on the selected roller profile and machine setup.

Key Configuration Details

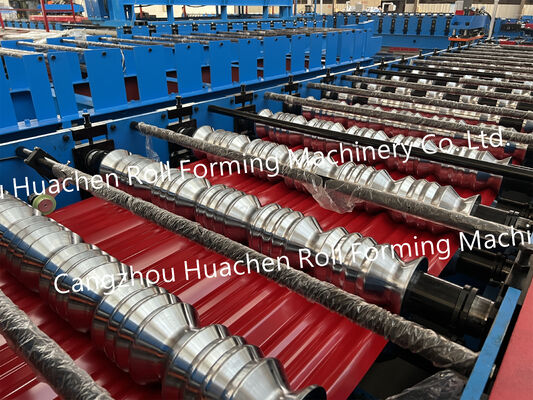

Roller System: Twelve roller stations provide the progressive forming arrangement.

Roller and Shaft Material: The specified material is 45# steel, with quenching and plating.

Shaft Diameter: The machine uses a Φ70mm shaft specification.

Transmission: Chain drive is used to transmit power to the forming mechanism.

Power Requirements: The total power is 4+4KW, with an electrical specification of 380V, 50Hz, three phases.

Application Areas

With the appropriate forming profile, this equipment can support production of metal roofing sheets for:

• Residential construction
• Industrial buildings and workshops
• Warehouses and storage facilities
• Commercial roofing projects
• Agricultural structures

Before purchasing, customers should confirm the desired roofing profile, metal thickness, sheet width, and cutting length.

Frequently Asked Questions

How many roller stations are included?
The machine has 12 roller stations.

What is the specified forming speed?
The listed speed is 15–20m/min.

What are the roller and shaft material specifications?
They are specified as 45# steel with quenching and plating.

What cutter material is used?
The cutter material is CR12.

Which drive system does the machine use?
It uses chain drive transmission.

What are the electrical requirements?
The specified voltage is 380V, 50Hz, three phases, with total power of 4+4KW.
