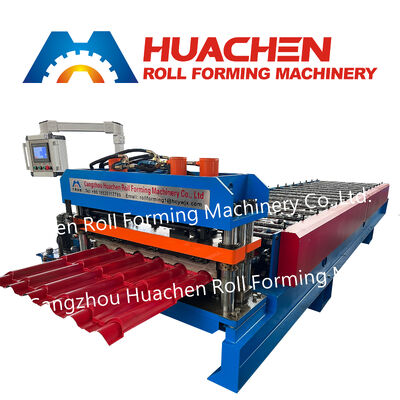

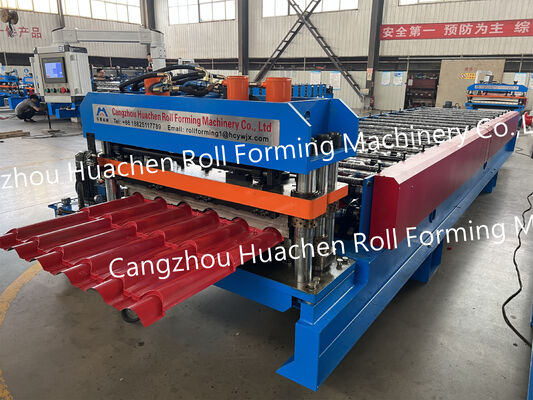

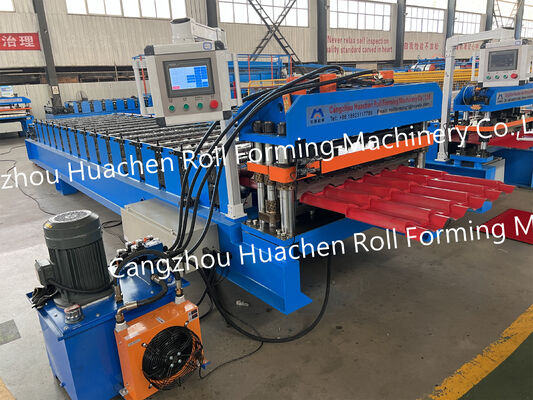

Ibr Glass Brick Roof Wall Panel Production Line - Cold Rolling Forming Processing Machine

Main Technical Parameters

3. Forming Procedure

The production line processes metal material through several stages:

1. Feeding: The metal strip enters the machine according to the production setup.
2. Roll Forming: The material passes through 12 roller stations, with each stage contributing to the required profile.
3. Cutting: The CR12 cutter separates the formed sheet at the specified length.

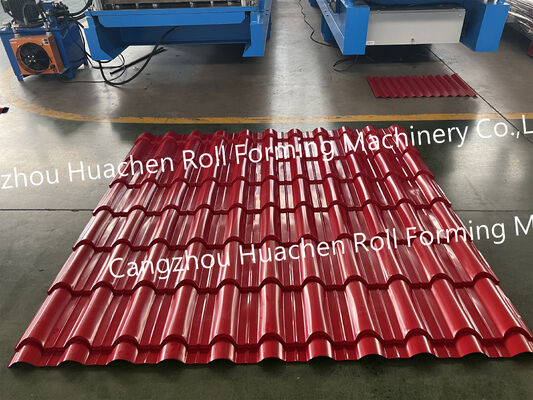

4. Collection: The completed sheets are removed for handling, storage, or installation.

The finished profile depends on the roller configuration and the roofing design required by the buyer.

4. Key Machine Components

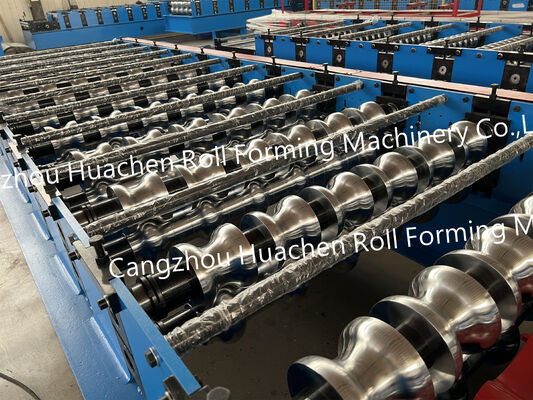

Forming rollers and shafts
The rollers and shafts use 45# steel with quenching and plating. The shaft diameter is Φ70mm.

Roller station arrangement
Twelve forming stations progressively shape the incoming metal material.

Cutting system
The specified cutter material is CR12, used in the sheet-cutting section.

Drive mechanism
The machine adopts chain drive transmission to operate the forming system.

Electrical configuration
The equipment has a total power rating of 4+4KW and a voltage specification of 380V, 50Hz, 3 phases.

5. Roofing Production Applications

Subject to the selected roller profile, the machine can be used to manufacture metal roofing sheets for:

• Residential roofing projects
• Industrial workshops and factories
• Commercial buildings
• Warehouses and storage facilities
• Agricultural structures

Before ordering, customers should confirm the required sheet profile, material thickness, finished dimensions, and cutting length.

6. Frequently Asked Questions

Q: How many roller stations does the machine have?
A: It is equipped with 12 roller stations.

Q: What is the specified production speed?
A: The stated speed is 15–20m/min.

Q: What materials are specified for the rollers and shafts?
A: They are made from 45# steel with quenching and plating.

Q: What is the shaft diameter?
A: The shaft diameter is Φ70mm.

Q: Which cutter material is used?
A: The specified cutter material is CR12.

Q: What are the power supply requirements?
A: The stated voltage is 380V, 50Hz, 3 phases, with total power of 4+4KW.
