High-Speed Roll Forming Machine for Large-Scale Metal Profile Manufacturing

Main Technical Parameters

Product Introduction

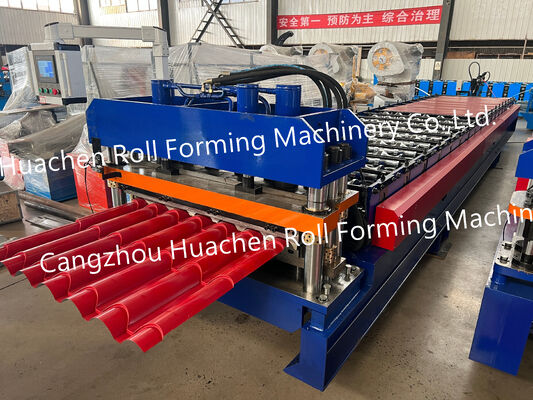

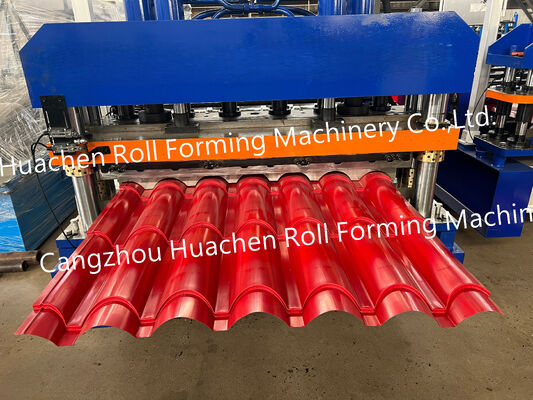

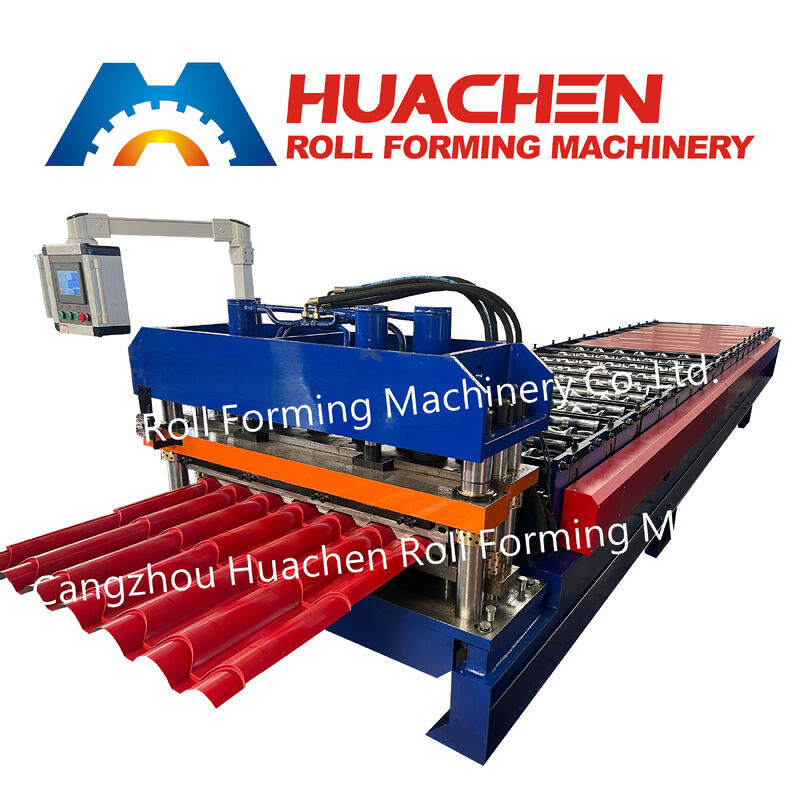

The 18 Station Color Steel Tile Roll Forming Machine is designed for continuous production of color steel roofing tile profiles. During operation, steel sheet passes through the forming section and is shaped step by step by the roller system.

This model is configured with 18 roller stations, 45# steel rollers and shafts featuring quenching and plating treatment, a Φ70mm shaft diameter, and a CR12 cutter. The machine uses chain drive transmission and provides a specified speed of 15–20m/min.

Technical Specifications

Applications

The machine can be used for:

• Color steel roofing tile production
• Metal roofing sheet forming
• Roofing profile manufacturing
• Steel structure building materials
• Construction roofing material processing

Product Advantages

18-Station Forming Structure

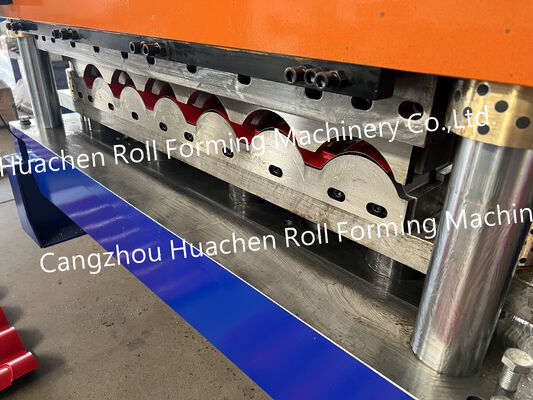

The forming section contains 18 roller stations, allowing the steel sheet to be shaped progressively through multiple stages.

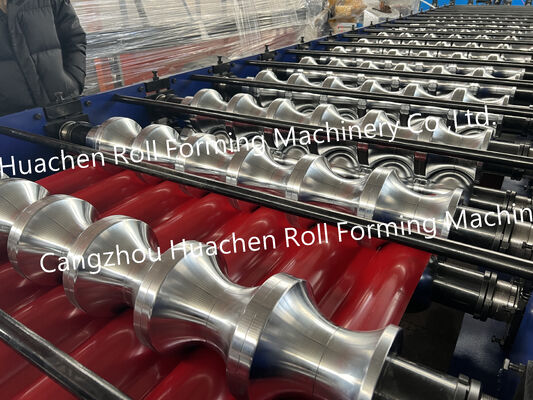

45# Steel Roller & Shaft System
The rollers and shafts use 45# steel with quenching and plating treatment according to the specified configuration.

CR12 Cutting Component
The cutting system is equipped with CR12 cutter material for the configured machine setup.

Chain Drive Transmission
The machine uses a chain drive system for mechanical power transmission.

Continuous Production Design
The specified operating speed of 15–20m/min supports continuous forming of roofing profiles.

Manufacturing & Quality

The equipment is configured according to the confirmed technical requirements, including roller station quantity, roller and shaft material, shaft diameter, cutter material, transmission type, operating speed, total power, and voltage.

The main specifications can be checked during machine assembly and before shipment to ensure consistency with the confirmed configuration.

Why Choose This Machine?

When selecting roofing roll forming equipment, customers should consider the finished profile, raw material, number of forming stations, required production speed, cutting configuration, and available electrical supply.

The 18 Station Color Steel Tile Roll Forming Machine provides a defined configuration for continuous metal roofing profile production.

FAQ

How many roller stations does this model have?
It is equipped with 18 roller stations.

What material are the rollers and shafts made from?
They use 45# steel with quenching and plating treatment.

What is the shaft diameter?
The shaft diameter is Φ70mm.

What is the cutter material?
The cutter material is CR12.

What is the machine speed?
The specified speed is 15–20m/min.

What is the electrical specification?
The machine uses 380V / 50Hz / 3 Phases.
