Metal Glazed Roof Tile Roll Forming Machine

Product Introduction

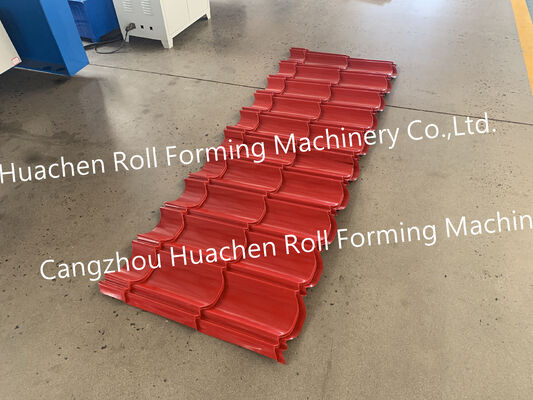

The 12 Station Color Steel Tile Roll Forming Machine is designed for continuous forming of color steel roofing tile profiles. Steel sheet is guided through the roller section and shaped progressively to achieve the required roofing profile.

This model is equipped with 12 roller stations, 45# steel rollers and shafts with quenching and plating treatment, a Φ70mm shaft diameter, and a CR12 cutter. The transmission system uses chain drive, with a specified production speed of 15–20m/min.

Applications

Suitable for:

• Color steel roofing tile production
• Metal roofing sheet forming
• Roofing profile manufacturing
• Steel structure materials
• Construction roofing applications

Product Advantages

12-Station Roller System

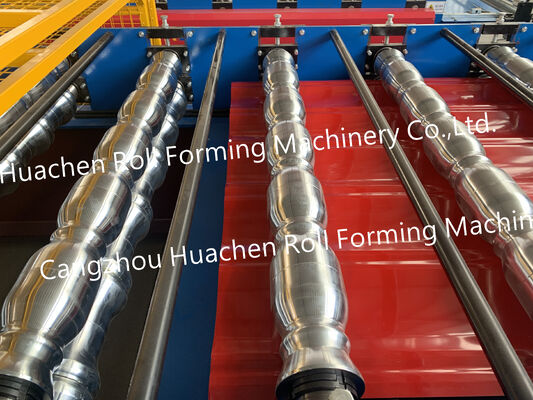

The forming section uses 12 stations to shape the steel sheet through successive roller operations.

Treated 45# Steel Components
The rollers and shafts are made from 45# steel with quenching and plating treatment.

CR12 Cutter Configuration
The cutting section is equipped with CR12 cutter material according to the specified setup.

Chain Drive Transmission
The machine uses a chain drive system for mechanical power transmission.

Continuous Forming
The specified 15–20m/min speed supports continuous production of roofing profiles.

Manufacturing & Quality

The machine configuration is based on the confirmed technical specifications, covering the roller stations, roller and shaft material, shaft diameter, cutter material, drive system, speed, power, and voltage.

The main specifications can be checked during assembly and before shipment according to the confirmed machine configuration.

Why Choose This Machine?

When selecting roofing roll forming equipment, customers should consider the required profile, steel material, roller station quantity, production speed, cutting system, and electrical requirements.

This 12 Station Color Steel Tile Roll Forming Machine provides a defined configuration for continuous color steel roofing profile production.

FAQ

How many roller stations does the machine have?
It has 12 roller stations.

What are the rollers and shafts made of?
They use 45# steel with quenching and plating treatment.

What is the shaft diameter?
The shaft diameter is Φ70mm.

What cutter material is used?
The specified cutter material is CR12.

What is the machine speed?
The specified speed is 15–20m/min.

What is the voltage specification?
The machine is specified for 380V / 50Hz / 3 Phases.

Main Technical Parameters
