Ribbon tiles, high quality, low price, steel plate metal roof, cold rolling forming machine

Main Technical Parameters

Product Overview

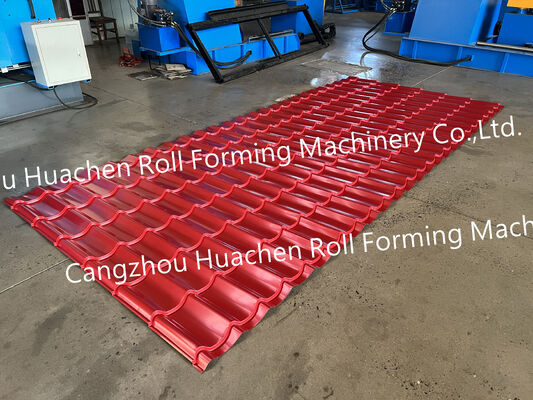

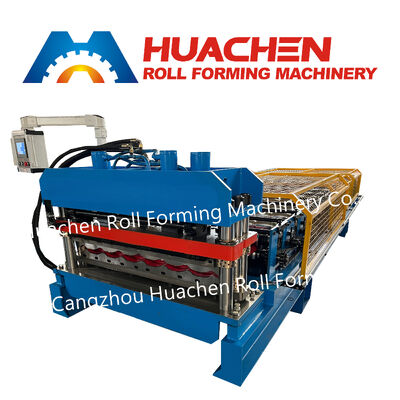

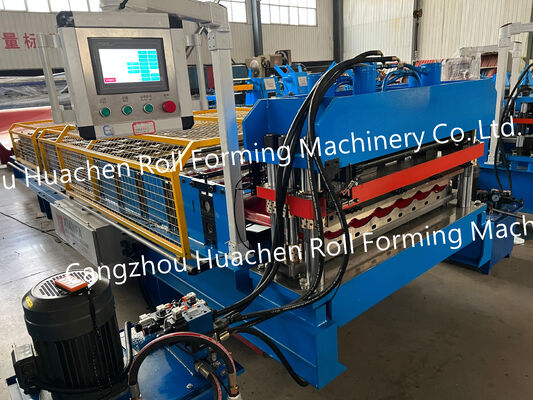

The 12 Station Color Steel Tile Roll Forming Machine is designed for producing continuous color steel roofing tile profiles. During forming, the steel sheet passes through a sequence of rollers and is gradually shaped into the required roofing profile.

The machine is configured with 12 roller stations, 45# steel rollers and shafts with quenching and plating treatment, a Φ70mm shaft diameter, and a CR12 cutter. It features chain drive transmission and a specified working speed of 15–20m/min.

Technical Specifications

Applications

Designed for applications including:

• Color steel tile manufacturing
• Metal roofing sheet forming
• Roofing profile production
• Steel structure material processing
• Construction roofing material production

Product Advantages

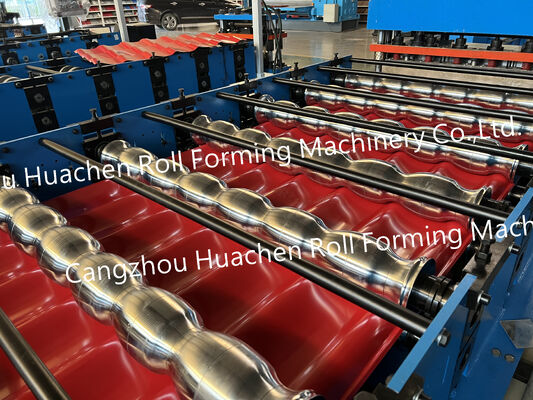

Progressive Roller Forming
The 12 forming stations shape the steel sheet step by step through the roller section.

45# Steel Forming Components
Rollers and shafts are specified in 45# steel with quenching and plating treatment.

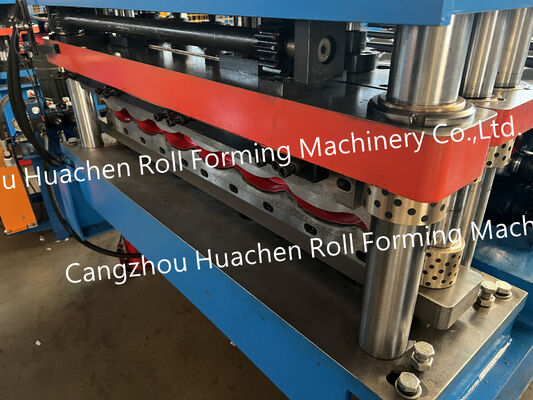

CR12 Cutter
The cutting section is configured with CR12 cutter material.

Chain Drive System
Chain transmission is used for the machine's mechanical drive system.

Continuous Production
The specified 15–20m/min speed supports continuous roofing profile forming.

Manufacturing & Quality

The machine configuration follows the confirmed specifications for roller stations, component materials, shaft diameter, cutter material, transmission system, operating speed, power, and voltage.

The equipment specifications can be checked during assembly and before shipment against the confirmed configuration.

Why Choose This Machine?

For roofing profile production, buyers should consider the required profile design, steel material, number of forming stations, operating speed, cutting configuration, and electrical requirements.

This 12 Station Color Steel Tile Roll Forming Machine provides a defined configuration for continuous metal roofing profile production.

FAQ

How many roller stations are included?
The machine has 12 roller stations.

What material is used for the rollers and shafts?
They are specified as 45# steel with quenching and plating treatment.

What is the shaft diameter?
The shaft diameter is Φ70mm.

What is the cutter material?
The cutter material is CR12.

What is the production speed?
The specified speed is 15–20m/min.

What is the electrical specification?
The machine uses 380V / 50Hz / 3 Phases.
