Single-layer durable galvanized sheet steel roof panel forming machine

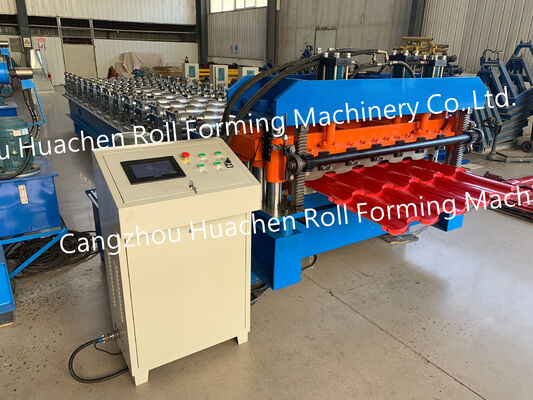

Machine Overview

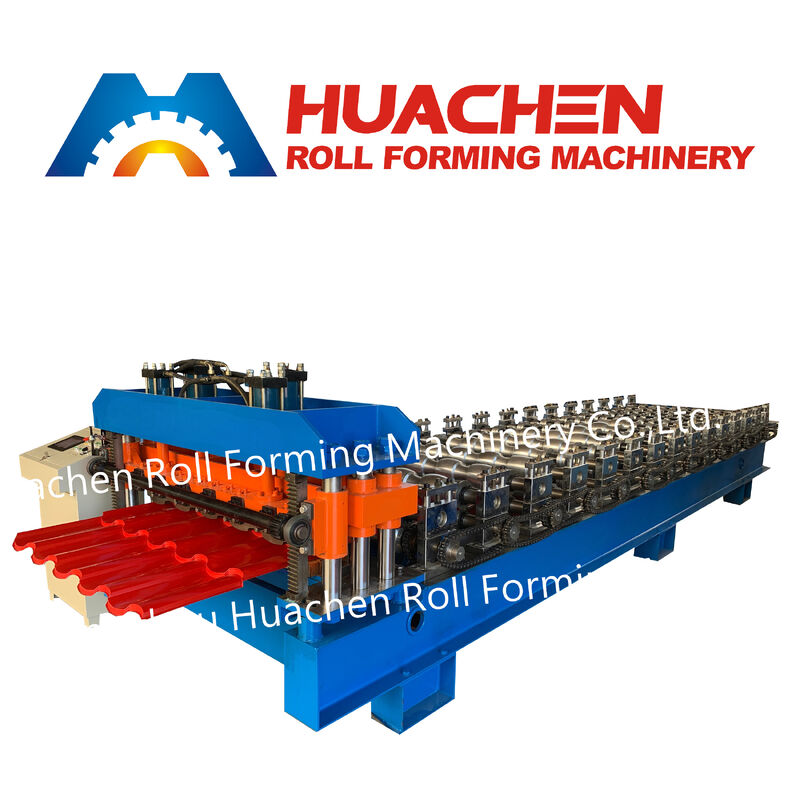

Designed for metal roofing profile production, this 15 Station Color Steel Tile Roll Forming Machine uses a staged roller-forming process to transform steel sheet into continuous roofing tile profiles.

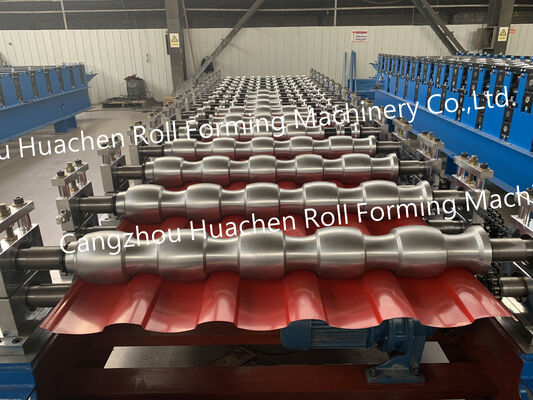

The forming line is equipped with 15 roller stations. Its main mechanical configuration includes 45# steel rollers and shafts with quenching and plating treatment, a Φ70mm shaft, and a CR12 cutter. A chain transmission system is used for machine drive.

Configuration at a Glance

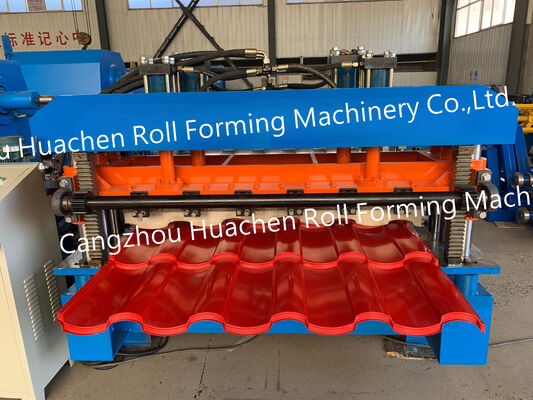

Forming Process

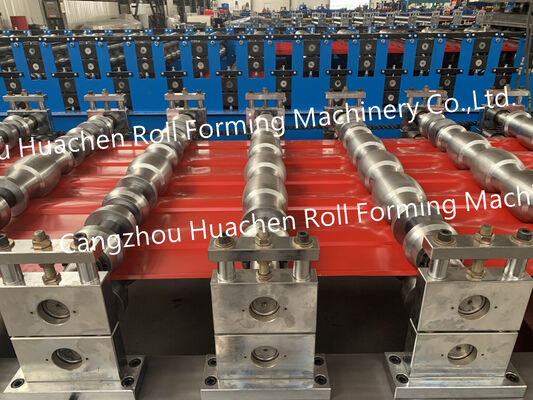

Steel sheet enters the roller section and is gradually shaped as it travels through the 15 forming stations. Each stage contributes to the final roofing profile, making the machine suitable for continuous profile-forming operations.

The actual profile configuration should be matched with the customer's required roofing sheet design.

Key Equipment Features

Treated 45# Steel Rollers and Shafts

The forming rollers and shafts are specified as 45# steel, with quenching and plating treatment.

Φ70mm Shaft

The forming assembly uses a Φ70mm shaft diameter according to the supplied specification.

CR12 Cutting Material

A CR12 cutter is included in the specified cutting configuration.

Chain Transmission

The equipment uses chain drive as its mechanical transmission method.

Production & Power

The specified machine speed is 15–20m/min, with a total power configuration of 4+4KW.

The electrical specification is:

380V / 50Hz / 3 Phases

The customer's local power conditions should be confirmed before installation.

Suitable Applications

This equipment can be considered for:

• Color steel roofing tile production
• Metal roof profile manufacturing
• Roofing sheet processing
• Steel structure material production
• Construction roofing applications

Selection Notes

Before ordering a roll forming machine, customers should confirm the required finished profile, raw material specifications, production requirements, and local electrical standard.

For customized machine configurations, the finished profile drawing or sample is useful for confirming the forming arrangement.

FAQ

What is the forming capacity of this model?
The machine is configured with 15 roller stations and a specified speed of 15–20m/min.

What are the main roller and shaft materials?
The specified material is 45# steel with quenching and plating.

What cutter is specified for this machine?
The supplied specification lists CR12 as the cutter material.

What transmission method is used?
The machine uses a chain drive system.

What power supply is required?
The specified electrical configuration is 380V / 50Hz / 3 Phases.
