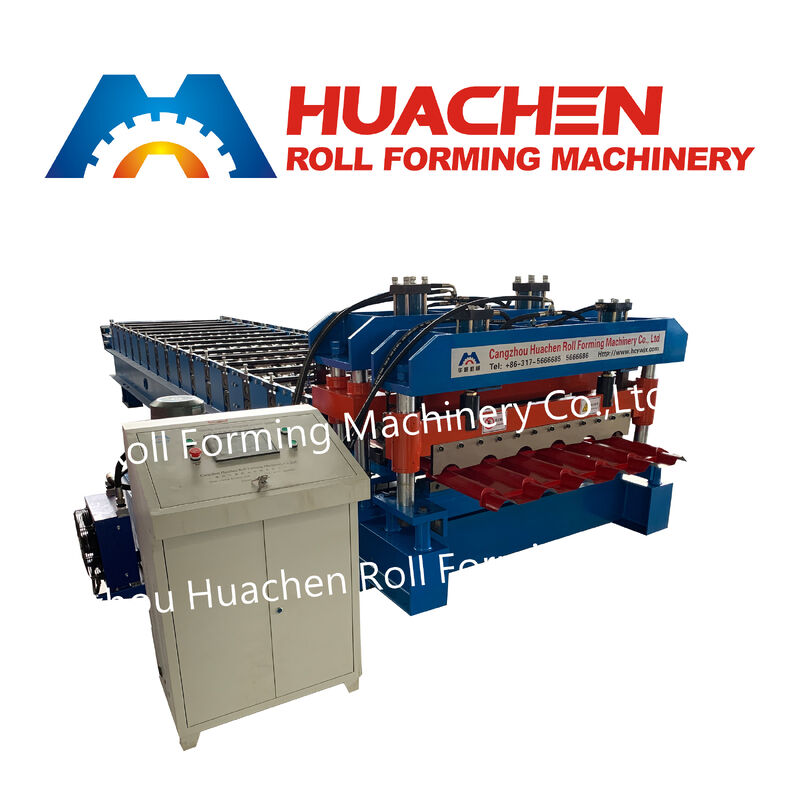

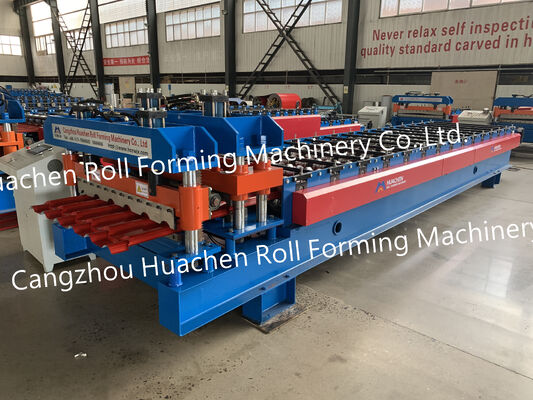

High-strength steel tile roof panel rolling press machine for construction materials

Main Technical Parameters

Working Characteristics

The steel sheet enters the forming section and passes through the roller stations in sequence. The profile is gradually shaped during the forming process rather than being produced in a single operation.

The 15-station configuration provides the machine with a multi-stage forming arrangement for roofing profile production.

Component Configuration

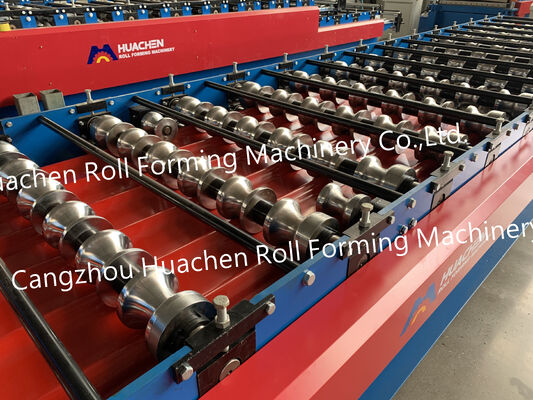

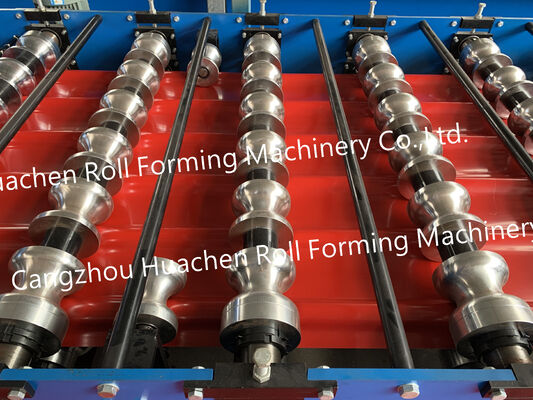

Forming Rollers & Shafts
45# steel is specified for the rollers and shafts, with quenching and plating treatment.

Shaft Diameter
The forming system uses a Φ70mm shaft according to the supplied specification.

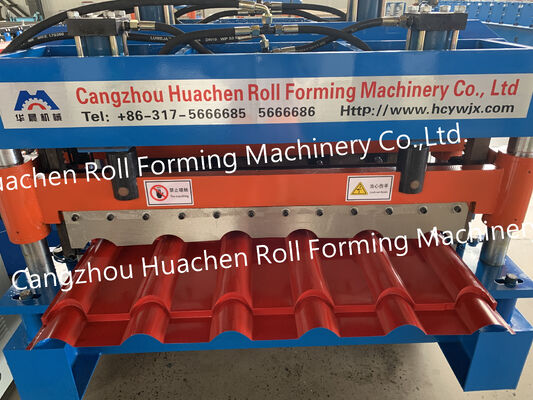

Cutting Section
The cutter material is specified as CR12.

Transmission
Mechanical power is transferred through a chain drive system.

Production Information

• Forming speed: 15–20m/min
• Total power: 4+4KW
• Power supply: 380V / 50Hz / 3 Phases
• Roller stations: 15 Stations

Typical Applications

The machine configuration is suitable for continuous production of:

• Color steel roofing tiles
• Metal roofing profiles
• Roofing sheets
• Steel building materials
• Construction roof panels

Purchasing Considerations

For a roofing roll forming machine, the finished profile, forming requirements, roller configuration, cutting method, production speed, and electrical supply should be confirmed before production.

The supplied technical specifications can be used as the reference configuration for this 15 Station Color Steel Tile Roll Forming Machine.

Frequently Asked Questions

How many forming stations are included?
This configuration has 15 Stations.

What is the shaft diameter?
The specified shaft diameter is Φ70mm.

What material is specified for the cutter?
The cutter material is CR12.

What transmission system is used?
The machine uses Chain Drive.

What is the specified production speed?
The speed is 15–20m/min.

What is the electrical requirement?
The specified voltage is 380V 50Hz 3 Phases.
