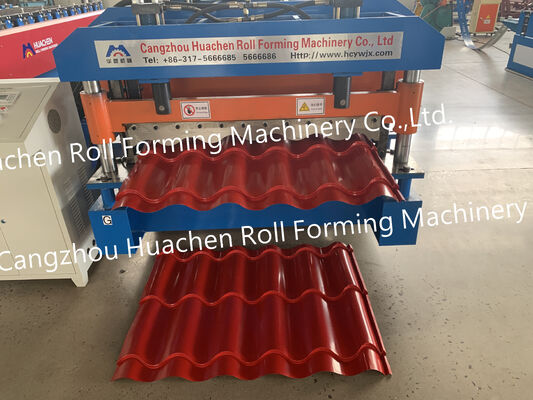

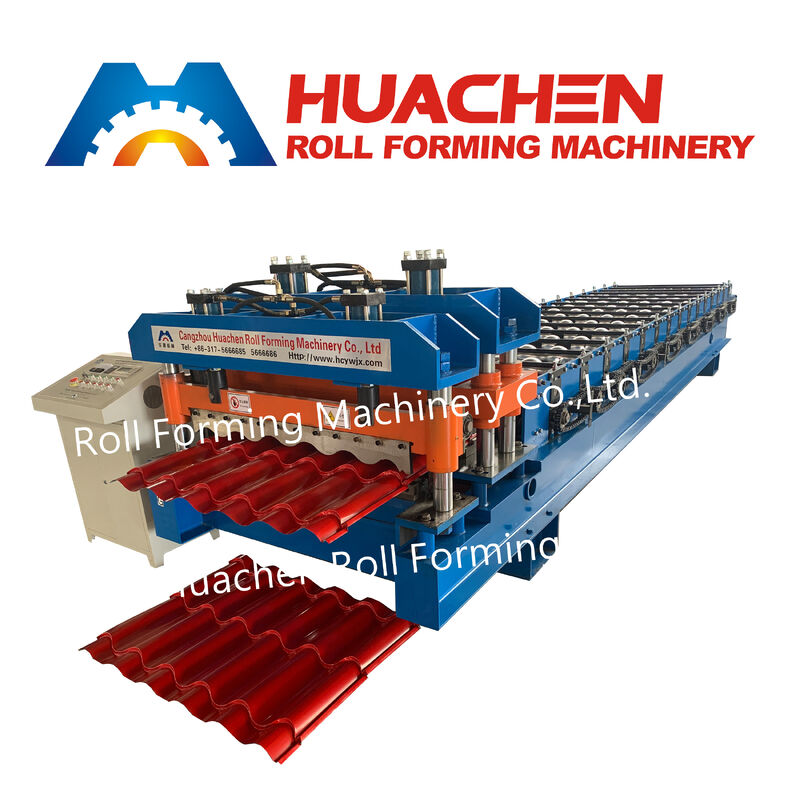

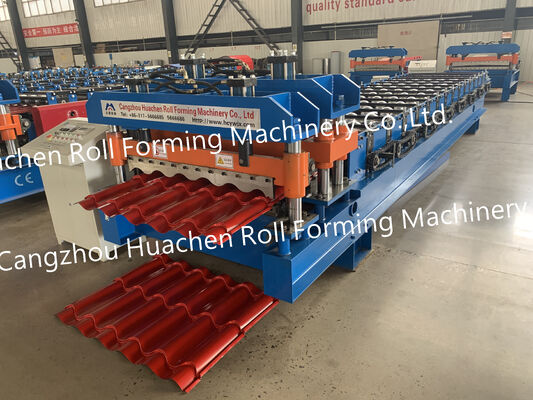

Steel Tile Roofing Sheet Roll Forming Machine for Building Material

Main Technical Parameters

Forming Method

The steel sheet is fed into the forming section and passes through the 15 roller stations in sequence. Each set of rollers performs a progressive forming operation, allowing the flat sheet to develop into the required roofing profile.

This type of continuous forming arrangement is suitable for regular production of metal roofing materials.

Main Configuration

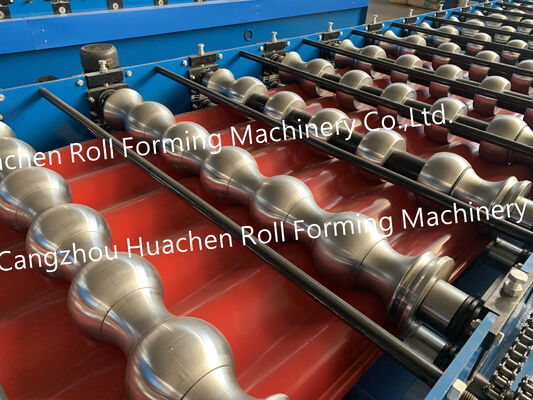

Roller & Shaft System

The forming rollers and shafts are made from 45# steel with quenching and plating treatment, according to the supplied machine specification.

Shaft

The shaft diameter is Φ70mm, providing the specified support for the roller assembly.

Cutting Unit

The cutting component uses CR12 material as specified.

Drive System

A chain drive is used for mechanical transmission between the machine components.

Production Parameters

The machine is specified with a production speed of 15–20m/min and a total power configuration of 4+4KW.

The required electrical supply is:

380V / 50Hz / 3 Phases

Application Areas

The equipment can be used for manufacturing:

• Color steel roofing tiles
• Metal roof sheets
• Roofing profile panels
• Steel building materials
• Construction roof products

Configuration Notes

The final machine setup should correspond to the required roofing profile and confirmed technical specifications. Before production and installation, customers should verify the profile requirements and local electrical conditions.

This configuration is based on the supplied parameters for a 15 Station Color Steel Roofing Tile Roll Forming Machine.

FAQ

What is the number of roller stations?
The machine is configured with 15 Stations.

What treatment is applied to the rollers and shafts?
They use 45# steel with quenching and plating.

What is the shaft diameter?
The shaft diameter is Φ70mm.

Which cutter material is specified?
The cutter uses CR12.

How is the machine driven?
The transmission system uses Chain Drive.

What is the specified forming speed?
The production speed is 15–20m/min.
