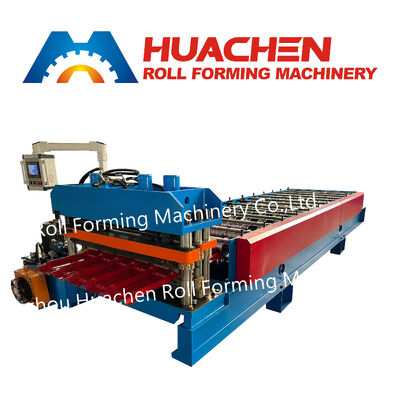

Galvanized and PPGI colored sheet roofing panels, color steel profiles, cold-rolled forming processing equipment

Main Technical Parameters

How the Machine Forms Roofing Sheets

The steel coil sheet is introduced into the forming section and moves through the roller stations one after another. Each station applies a controlled forming step, allowing the material to gradually develop the final roofing tile shape.

The 12-station configuration is specified for the supplied machine setup.

Main Components

Rollers and Shafts
The forming rollers and shafts use 45# steel with quenching and plating treatment.

Shaft Assembly
The specified shaft diameter is Φ70mm.

Cutting Component
The cutting unit is configured with CR12 cutter material.

Transmission System
Mechanical movement is transferred through a chain drive system.

Production & Electrical Data

Speed: 15–20m/min
Total Power: 4+4KW
Voltage: 380V
Frequency: 50Hz
Phase: 3 Phases

These values represent the supplied machine configuration.

Typical Uses

The machine can be applied to production involving:

• Color steel roofing tiles
• Metal roofing sheets
• Roofing profile panels
• Steel construction materials
• Building roof components

Buyer Information

Before purchasing, the required roofing profile, sheet material, production requirements, and electrical supply should be confirmed.

For customized roll forming equipment, the required profile drawing or sample can be used as a reference for machine configuration.

Frequently Asked Questions

What is the roller station configuration?
The machine has 12 Stations.

What material is specified for the roller and shaft?
The specification is 45# Steel with Quenching and Plating.

What is the shaft diameter?
The shaft diameter is Φ70mm.

What is the cutter material?
The cutter material is CR12.

What type of drive is used?
The machine uses Chain Drive.

What is the specified operating speed?
The speed is 15–20m/min.

What electrical supply is specified?
380V / 50Hz / 3 Phases.
