Main Technical Parameters
|
Roller Stations
|
12Stations
|
|
Roller & Shaft Material
|
45# Steel Quenching and Plating
|
|
Diameter of Shaft
|
Φ70mm
|
|
Cutter Material
|
CR12
|
|
Drive Type
|
Chain Drive
|
|
Speed
|
15-20m/min
|
|
Total Power
|
4+4KW
|
|
Voltage
|
380V 50Hz3Phases
|

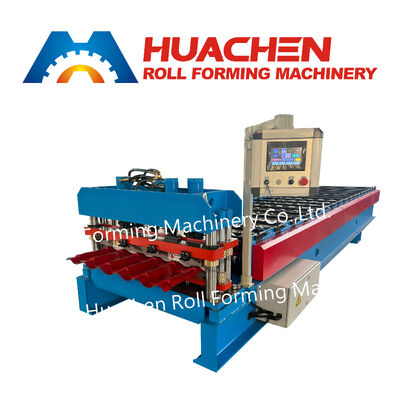

Product Overview
Forming System
During operation, the steel sheet travels through the roller section continuously. The 12 forming stations work successively to change the flat sheet into the specified roofing tile shape.
This progressive forming method is intended for continuous production of metal roofing profiles.
Key Specifications
- 45# Steel Rollers & Shafts — quenching and plating treatment
- Φ70mm Shaft — specified shaft diameter
- CR12 Cutter — specified cutting material
- Chain Drive — mechanical transmission method
- 15–20m/min — specified production speed
- 4+4KW — total power configuration
Application
The equipment can be used in roofing and construction material production, including:
Color Steel Tiles
For forming steel sheets into roofing tile profiles.
Metal Roofing Profiles
Suitable for continuous production of formed metal roof sections.
Construction Materials
Applicable to manufacturers producing steel roofing components for building projects.
Power Supply
The specified electrical configuration is:
380V / 50Hz / 3 Phases
The actual site power supply should be confirmed before machine installation.
Configuration Notes
The machine specification is based on the supplied parameters. The final roller profile and forming arrangement should correspond to the required roofing sheet design.
For a customized configuration, a profile drawing or sample can be used to confirm the forming requirements.
FAQ
What is the roller station quantity?
The machine has 12 Stations.
What material is used for the rollers and shafts?
The specified material is 45# Steel with Quenching and Plating.
What is the shaft diameter?
The shaft diameter is Φ70mm.
What cutter material is specified?
The cutter material is CR12.
What drive system is used?
The machine uses Chain Drive.
What is the specified speed?
The production speed is 15–20m/min.
What is the total power?
The specified total power is 4+4KW
