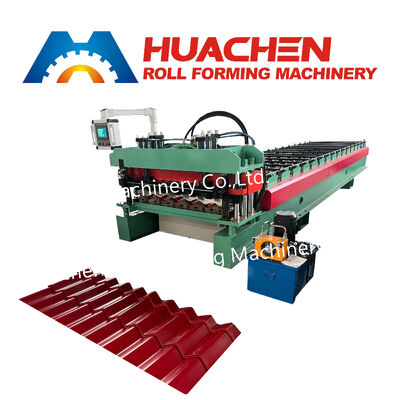

Roof Tile Forming Machine Glazed Tile Making Machine Steel Sheet Roll Former

Main Technical Parameters

Production Features

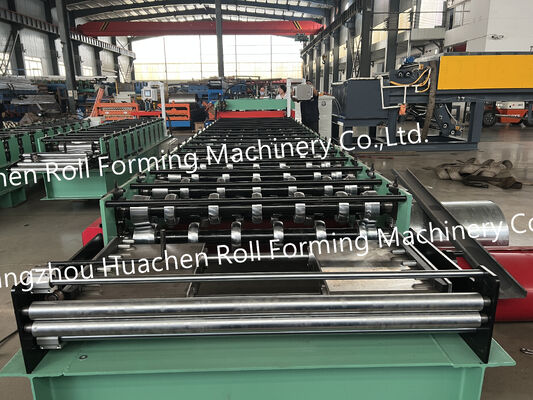

Progressive Forming
The sheet passes through the roller stations in sequence, with the profile formed gradually during continuous operation.

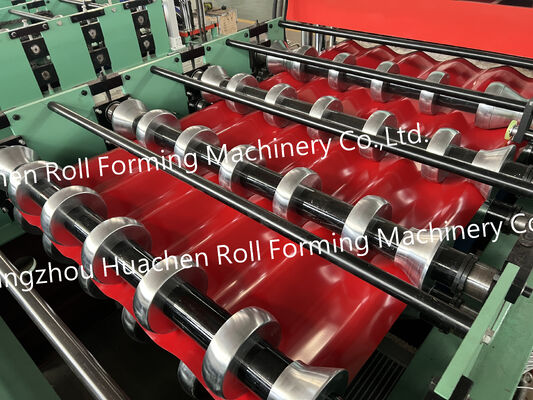

Treated Forming Components
The rollers and shafts are specified as 45# steel with quenching and plating treatment.

Specified Cutting Material
The cutting section uses CR12 material according to the supplied configuration.

Chain Transmission
A chain drive system provides the specified mechanical transmission method.

Application Range

The machine configuration is suitable for production involving:

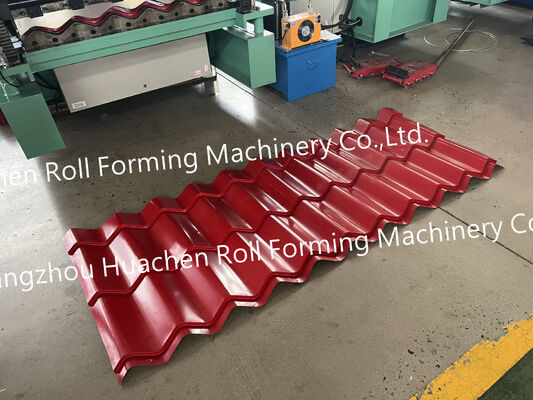

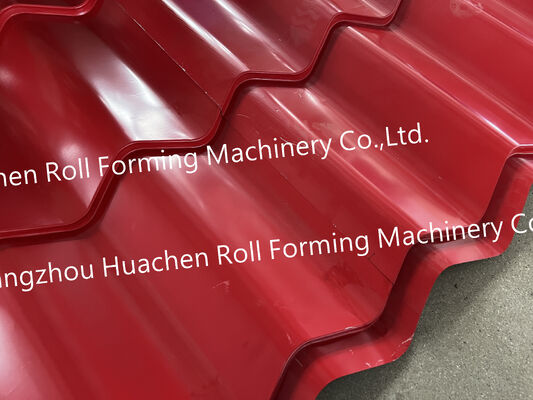

• Color steel roofing tiles
• Metal roofing profiles
• Roofing sheet panels
• Steel construction materials
• Building roof components

Operating Parameters

The specified production speed is 15–20m/min, with a total power of 4+4KW.

Electrical configuration:

380V / 50Hz / 3 Phases

The available power supply at the installation location should be confirmed before commissioning.

Machine Configuration Notes

The exact roller profile and forming arrangement should be matched to the required roofing sheet design. For customized production, a profile drawing or sample can be provided for configuration confirmation.

FAQ

How many roller stations are included?
The machine has 12 Stations.

What are the roller and shaft materials?
They are specified as 45# Steel with Quenching and Plating.

What is the shaft diameter?
The shaft diameter is Φ70mm.

What is the cutter made of?
The specified cutter material is CR12.

What transmission method does the machine use?
It uses Chain Drive.

What is the working speed?
The specified speed is 15–20m/min.

What is the total power?
The total power is 4+4KW.
