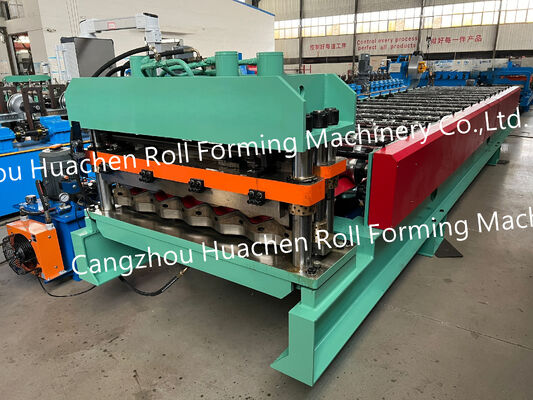

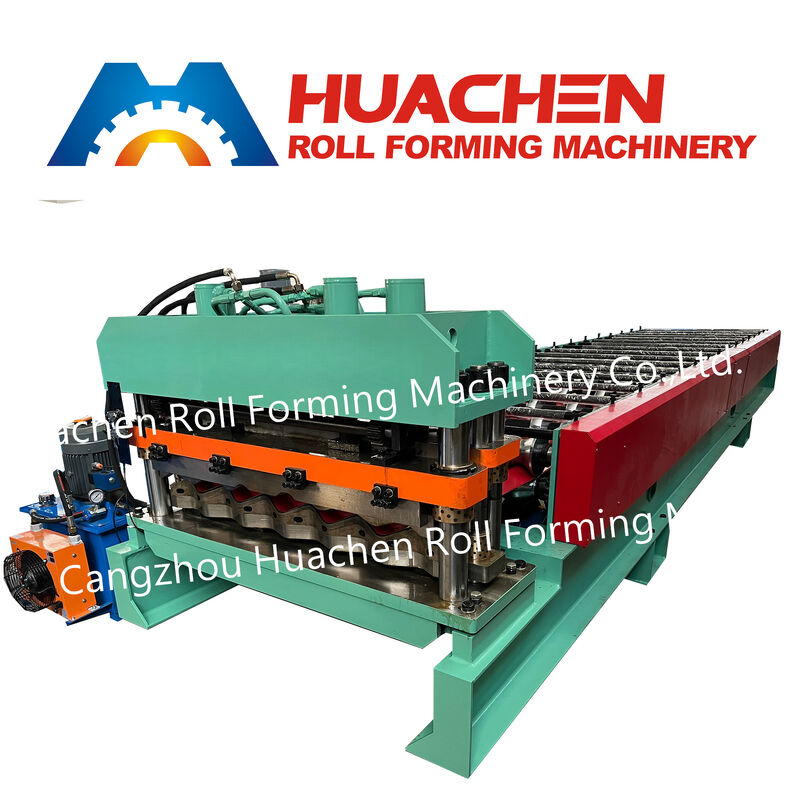

Corrugated Steel Metal Sheet Roof Profile Roll Forming Machine

Main Technical Parameters

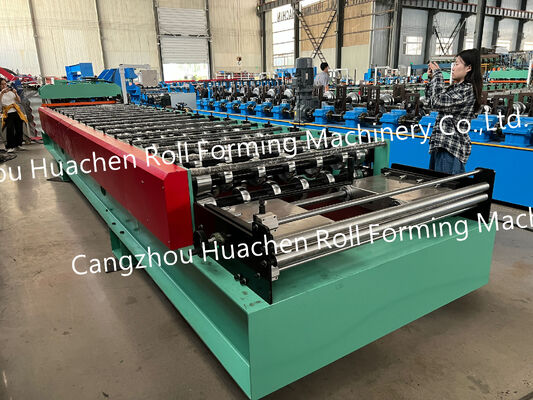

Forming Principle

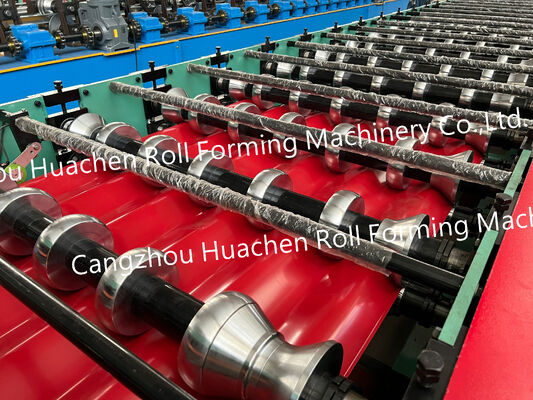

During operation, the steel sheet enters the roller forming section and moves through the 16 stations successively. Each roller stage performs part of the shaping process until the material reaches the required roofing tile profile.

This configuration is intended for continuous metal roofing profile production.

Equipment Configuration

Roller & Shaft Assembly

The rollers and shafts are specified as 45# steel, with quenching and plating treatment applied to the components.

Shaft Specification

The machine uses a Φ70mm shaft diameter.

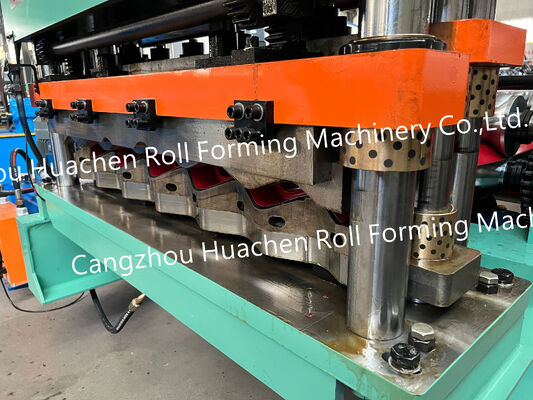

Cutting Section

The specified cutting material is CR12.

Drive Arrangement

A chain drive system is used for mechanical transmission.

Production Data

Applications

The equipment can be used for producing:

• Color steel roofing tiles
• Metal roofing sheets
• Roofing profile panels
• Steel construction materials
• Building roof components

Before Installation

The required roofing profile and raw material specifications should be confirmed before machine production. The electrical supply at the installation location should also match the specified 380V / 50Hz / 3 Phases configuration.

For customized profiles, a technical drawing or finished sample can be used to confirm the forming requirements.

FAQ

What is the number of roller stations?
This model has 16 roller stations.

What steel is used for the rollers and shafts?
The specified material is 45# steel with quenching and plating treatment.

What is the shaft diameter?
The shaft diameter is Φ70mm.

Which cutter material is used?
The specified cutter material is CR12.

What type of transmission is provided?
The machine uses Chain Drive.

What is the production speed?
The specified speed is 15–20m/min.

What is the total power configuration?
The total power is 4+4KW.
