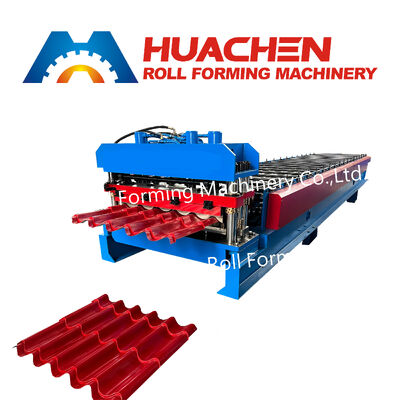

Corrugated Color Steel Roof Sheet Cold Roll Forming Machine for Sale

Main Technical Parameters

Product Overview

Manufacturing Process

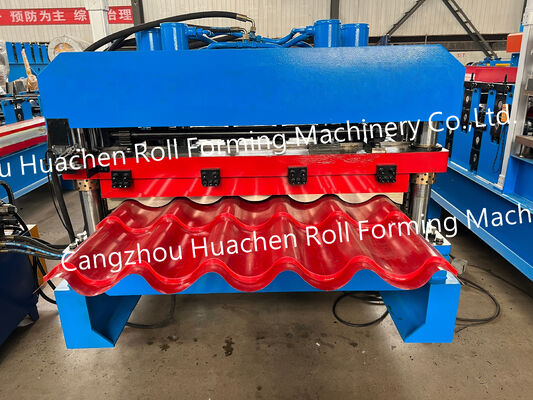

Steel sheet passes through the forming rollers in sequence. Each station contributes to shaping the material until the required roofing profile is obtained. The finished profile depends on the selected roller design and confirmed product specifications.

Key Machine Components

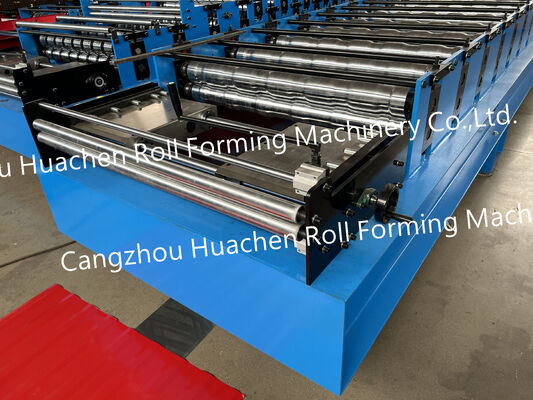

• 18 Forming Stations: A multi-stage roller arrangement for progressive sheet forming.

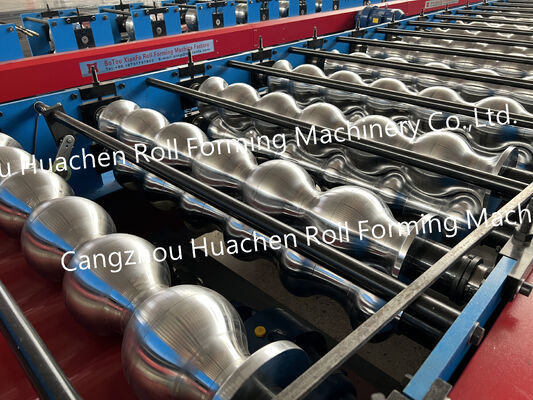

• 45# Steel Rollers and Shafts: Components specified with quenching and plating treatment.
• Φ70mm Shaft: The shaft diameter specified for this machine configuration.
• CR12 Cutter: Cutting component material specified for the machine.
• Chain Drive: Mechanical transmission system used during operation.

Production Applications

This equipment is intended for manufacturers processing steel roofing materials, including:

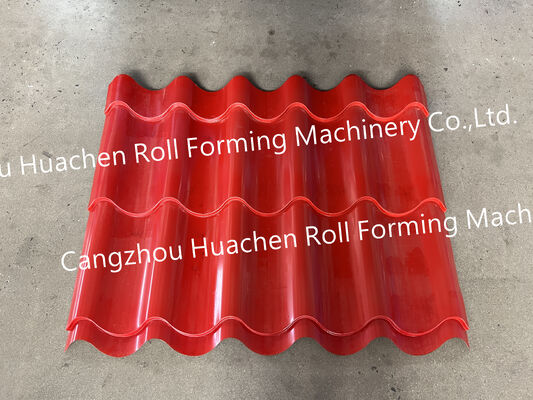

• Color steel roof tiles
• Metal roofing profiles
• Formed roofing sheets
• Building roof panels
• Steel construction materials

The required finished profile should be confirmed before ordering to ensure the machine configuration matches the intended application.

Operating Requirements

The specified production speed is 15–20m/min, with total power of 4+4KW. The machine requires a 380V, 50Hz, three-phase power supply. Buyers should verify compatibility with the power conditions at the installation site.

Frequently Asked Questions

How many forming stations are provided?
The machine is equipped with 18 roller stations.

What material is used for the rollers and shafts?
45# steel with quenching and plating treatment.

What is the shaft diameter?
Φ70mm.

Which cutter material is specified?
CR12.

What transmission system does the machine use?
Chain drive.

What is the operating speed?
15–20m/min.

What is the electrical requirement?
380V / 50Hz / 3 Phases.
