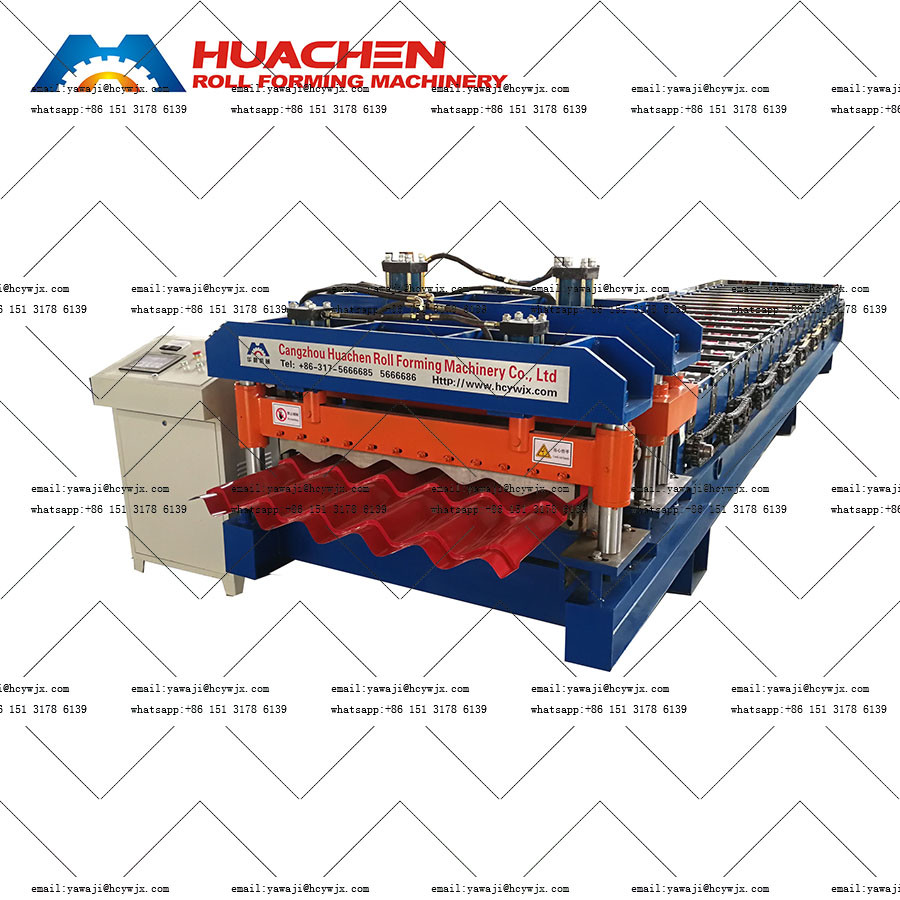

Aluminium Metal Roof Glazed Tile Roll Forming Machine

Product Description

Applicable plate thickness: Generally applicable to 0.2-0.8mm color steel plates. There may be some differences between different models of equipment, but this thickness range can basically meet the production needs of common color steel glazed tiles.
Production speed: The production speed is usually around 5-15 meters per minute. The specific speed depends on factors such as the power of the equipment, the complexity of the forming, and the thickness of the plate. Some high-end forming machines can achieve higher production speeds under conditions such as optimized design and the use of high-performance motors.

Main Technical Parameters

Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

Hydraulic Pump Station


The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi

Feeding Table & Pre-Cutter

Guide the coil come into the correct position and going to the roll forming part.

Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.



Shaft & Rolle



Material is 45# Steel Quenching and Plating.

The processed rollers are smooth, hard and will not rust.

Will not leave any scratches on the sheet when working.



Pressing Section & Cutter

The material of blade is CR12.

After shaping, the metal is cut into individual slats of the required length. Precision cutting ensures uniformity in the final product.



The length accuracy can be controlled within ±1mm. In terms of shape accuracy, the outline and details of the glazed tiles can be accurate to within ±0.5mm, ensuring that the produced glazed tiles are of standard size and regular shape, which is conducive to subsequent installation and use.
