Product Details:
|
| Feature: | Two In One | Warranty: | Life Time |
|---|---|---|---|
| Speed: | 0-2m/min | Name: | Cold Roll Forming Equipment |
| High Light: | rib tile cold roll forming machine,color steel cold roll forming machine,rib tile cold roll forming equipment |
||
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1219mm
3. Rollers: 12 rows
4. Dimensions: 6.6*1.55*1.51m
5. Power: 5.5+5.5kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description

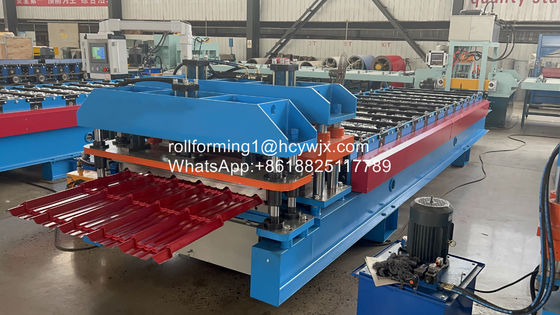

Step Tile Glazed Tile Roll Forming Machine Main parameter
|
No. |
Main parameter of Step Tile Glazed Tile Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1219mm |
|
3 |
Rollers |
12rows |
|
4 |
Dimensions |
6600*1550*1510m |
|
5 |
Power |
5.5+5.5kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
4m/min |
|
8 |
Diameter of the roller |
Φ80mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting
Application
This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
Competitive Advantage
1. noiseless running
2. good quality
3. high grade steel
4. maintenance-free
5. easy to use
