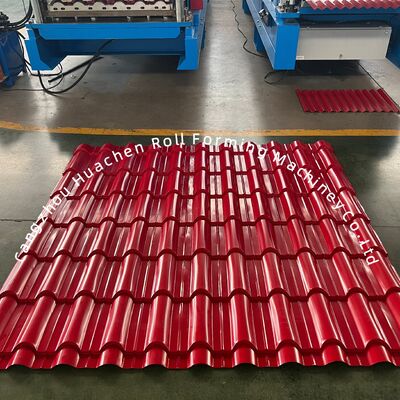

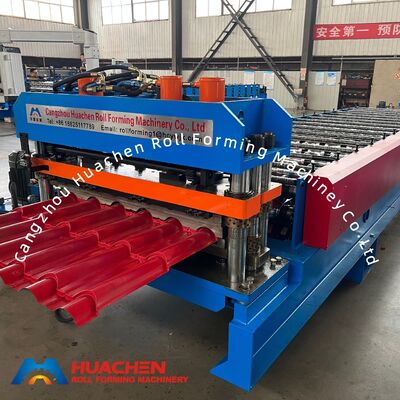

1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles

1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles
1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles 1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles 1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles

Large Image :  1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC 30 - 190 - 950
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30 days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Contact Now

1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 1200mm Rolller Stations: 15Stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: Φ70mm
Cutter Material: CR12 Drive Type: Chain Drive
Speed: 4m/min Total Power: 5.5+5.5KW
Voltage: 380V 50Hz 3Phases
Highlight:

roll forming equipment

,

cold roll forming machine

PPGI/GI Roof Tile Manufacturing Machine - Material Width 1200mm, 18 Rollers
Rib 40 MM Glazed Tile Roll Forming Machine Material Width 1220 mm for PPGI and GI materials.
Main Technical Parameters
Parameter Specification
The drive motor 5.5 kw
Material of the coil GI and PPGI
Machine length 9380 mm
Voltage 220V 50Hz 3 phases
Thickness 0.3 - 0.6 mm
Component & Technical Parameters
1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles 0
5T Manual Decoiler

This part is used to support coil and make the coil rotate. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.

1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles 1
Feeding Table & Pre-Cutter

Guides the coil into correct position for roll forming. Includes hand pull cutting device for pre-cutting when changing color or thickness.

1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles 2
Shaft & Roller

Material: 45# Steel with quenching and plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch sheets during operation.

1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles 3
Hydraulic Pump Station

Drives the cutter for cutting operations. Uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles 4
Touch Screen Control Cabinet

Features automatic and manual modes. Allows setting of unit length and quantity on touchscreen. Simple and easy to operate system.

Electrical Component Brands:

  • VFD: Delta
  • Circuit breaker: Delixi
  • Contactor: Delixi
  • Relay: Xinling
  • PLC: Delta
  • Transformer: Delixi
1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles 5
Pressing Section & Cutter

Blade and pressing mould material: CR12. Features high strength, excellent hardenability, and superior wear resistance.

1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles 6
Output Table

Used to collect formed products. Equipped with rollers to facilitate product forwarding without scratching.

Spare Parts
Chains: 2 Sets
Solenoid Valve: 1 Set
Travel Switch: 2 Sets
Open-End Wrenches: 2 Sets
Hexagon Wrench: 2 Sets
Counter: 1 Set
Wrench: 2 Sets
Oil Seals: 1 Set
Automatic Control System Operation
  • Inverter controls host's positive and negative running with speed controlled by high-speed/low-speed switch. Always set to high speed in automatic operation.
  • Oil pump switch controls start/stop of oil pump. Automatically starts to provide pressure for hydraulic system.
  • Before starting operation, turn on oil pump to provide hydraulic system pressure.
  • After oil pump starts, verify pump running direction matches arrow direction. If not, change any three of the three phases in pump motor.
  • Lower cut and return buttons control cutter operation. If buttons are unresponsive, check hydraulic oil level and add oil if necessary.
Technical Support & Troubleshooting
Pulse Length Measurement Issues

If setting value remains unchanged, produced plate size should be consistent. Pulse coefficient can be adjusted if needed.

If plate sizes vary:

  • Check counter wheels for proper installation, slipping, or dangling
  • If no issues found, counter may be damaged - test by manually turning counter 10 times and recording value
Automatic Cutter Lift Failure
  • Check oil pump filter for blockage
  • Inspect oil pump and motor connection keys for damage
  • Check solenoid valve for sticking and directional issues
Cutter Cutting Fault Solutions

Knife keeps going down with pump blocked:

  • Check lower limit adjustment or switch damage
  • Solenoid valve stuck - turn off pump, press cut button until click sound, then turn on pump to raise knife

Knife keeps going up with pump blocked:

  • Check upper limit adjustment or switch damage
  • Verify K1 and K2 connections
  • Solenoid valve stuck - turn off pump, press cut button until click sound, then turn on pump to raise knife
1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles 7 1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles 8
