Fully Automatic Color Steel Tile Press Machine Colored Steel Glazed Tile Roll Forming Machine

Fully Automatic Color Steel Tile Press Machine Colored Steel Glazed Tile Roll Forming Machine
Fully Automatic Color Steel Tile Press Machine Colored Steel Glazed Tile Roll Forming Machine Fully Automatic Color Steel Tile Press Machine Colored Steel Glazed Tile Roll Forming Machine Fully Automatic Color Steel Tile Press Machine Colored Steel Glazed Tile Roll Forming Machine Fully Automatic Color Steel Tile Press Machine Colored Steel Glazed Tile Roll Forming Machine Fully Automatic Color Steel Tile Press Machine Colored Steel Glazed Tile Roll Forming Machine

Large Image :  Fully Automatic Color Steel Tile Press Machine Colored Steel Glazed Tile Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: 25-204-1000-1219
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 40GP Container
Delivery Time: 30days
Payment Terms: L/C,T/T
Supply Ability: 60 Sets Per Month
Contact Now

Fully Automatic Color Steel Tile Press Machine Colored Steel Glazed Tile Roll Forming Machine

Description
Panel Thickness: 0.3-0.6mm Motor Power: 4+4KW
Machine Frame: 350 H Beam Cutting Method: Hydraulic Cutting
Decoiler: Hydraulic/manual Decoiler Roller Material: Roll Forming Machine
Production Capacity: Roll Forming Machine Condition: New

Main Technical Parameters

Roller Stations

 12Stations

Roller ; Shaft Material

45# Steel Quenching and Plating

Diameter of Shaft

Φ70mm

Cutter Material

CR12

Drive Type

Chain Drive

Machine Speed

15-20m/min

Total Power

4+4KW

Voltage

380V 50Hz3Phases

Product Overview

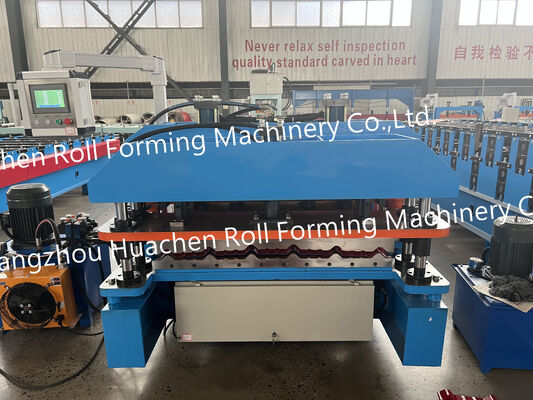

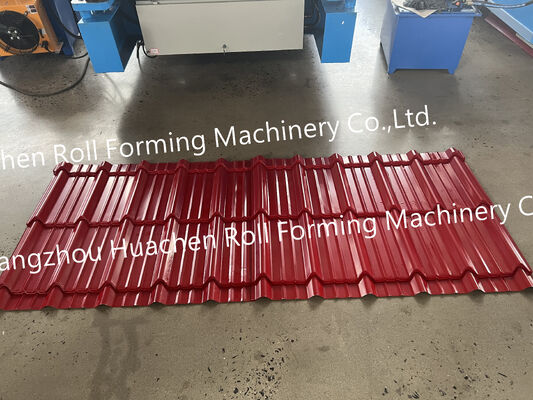

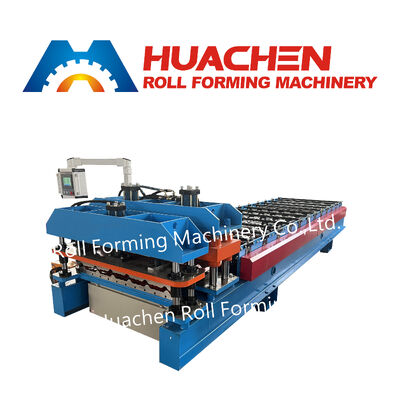

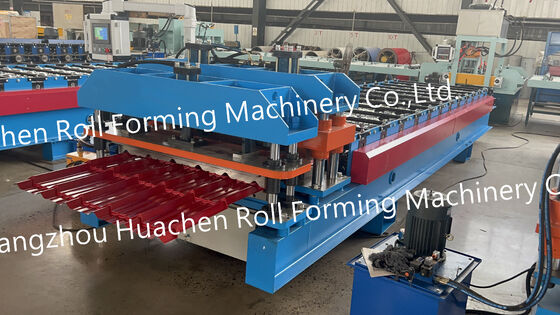

The Fully Automatic Color Steel Tile Roll Forming Machine is designed for continuous production of color steel roofing tiles and glazed tile profiles. The machine uses a multi-station roll forming system to gradually shape steel coils into the required roofing profile.

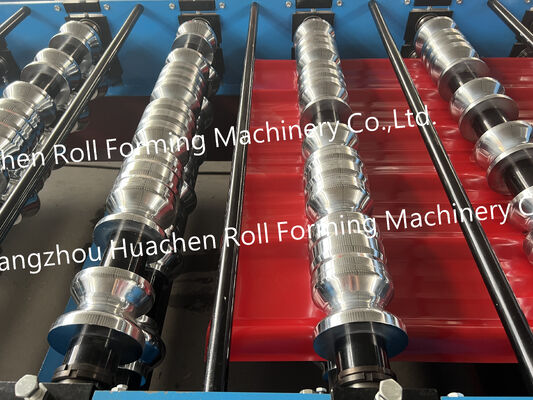

Configured with 12 roller stations, the machine provides a continuous forming process for steel roofing production. The rollers and shafts are manufactured from 45# steel with quenching and plating treatment, while the main shaft has a diameter of Φ70 mm.

The cutting system uses CR12 cutter material.

With a forming speed of 15–20 m/min, chain drive transmission, and a total power configuration of 4+4 kW, this machine is suitable for manufacturers producing color steel roofing sheets in continuous production environments
