High-end manufacturing galvanized sheet roofing steel IBR roof panel forming roller press

Main Technical Parameters

Product Overview

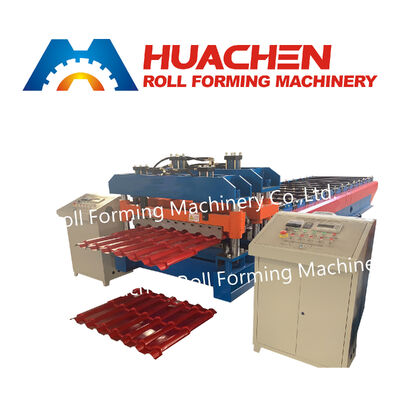

The Wall Panel Roll Forming Machine is a highly efficient industrial solution engineered for manufacturing wall panels used across diverse construction applications. The 12 Station Color Steel Tile Roll Forming Machine is designed for continuous forming of color steel roofing tile profiles. The steel sheet is gradually shaped through a multi-stage roller system to achieve the required roof tile profile.

Applications

This roll forming machine is suitable for:

• Color steel tile production
• Metal roofing sheet manufacturing
• Roofing profile forming
• Steel structure building materials
• Construction material processing

Product Advantages

12-Station Forming System
The roller section uses 12 forming stations to progressively shape the steel sheet into the required profile.

45# Steel Components
The rollers and shafts are made from 45# steel with quenching and plating treatment.

CR12 Cutter
The cutting unit is configured with CR12 cutter material according to the supplied specification.

Chain Drive
The machine uses a chain drive system for power transmission during the forming process.

Continuous Production
With a specified speed of 15–20m/min, the equipment is configured for continuous roofing profile production.

Manufacturing & Quality

Key machine components are configured according to the confirmed technical specifications, including the roller stations, material, shaft diameter, cutter, drive system, speed, power, and voltage.

Before delivery, the machine configuration and main components can be checked against the customer's confirmed requirements.

Why Choose This Machine?

When purchasing a color steel tile roll forming machine, buyers should consider the required profile, material specifications, forming station quantity, production speed, cutting system, and local power supply.

This 12-station configuration provides a clear technical basis for evaluating equipment for color steel roofing profile production.

FAQ

What is this machine used for?
It is designed for continuous forming of color steel roofing tile profiles.

How many roller stations does it have?
This model has 12 roller stations.

What material are the rollers and shafts made of?
They use 45# steel with quenching and plating treatment.

What is the production speed?
The specified speed is 15–20m/min.

What power supply is required?
The specified electrical supply is 380V / 50Hz / 3 Phases.
