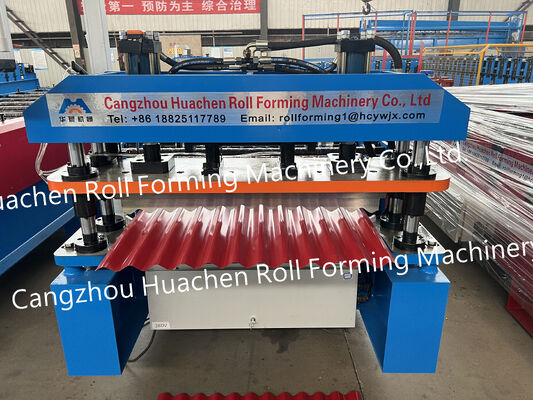

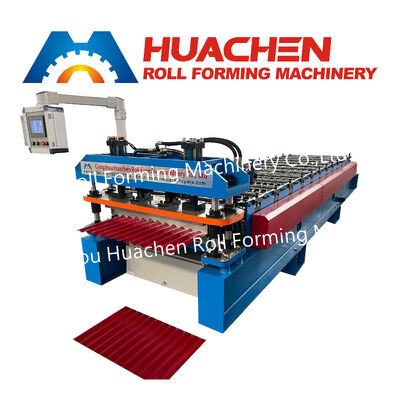

Metal Sheets Roofing Machine Tile Making Machine Corrugated and Trapezoid Roofing Tile Roll Forming Machine

Main Technical Parameters

Product Overview

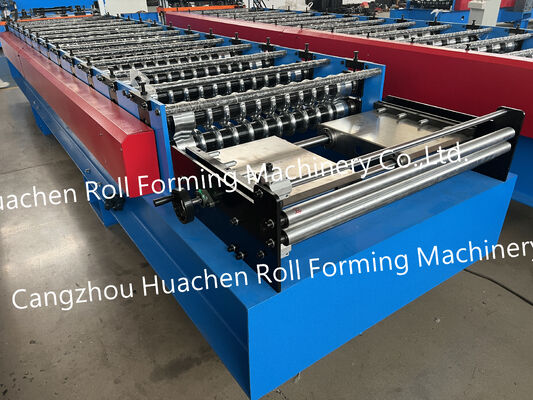

The Fully Automatic Color Steel Tile Roll Forming Machine is designed for continuous production of color steel tile and metal roofing profiles. The machine is equipped with 12 roller stations for progressive roll forming and uses a chain drive transmission system.

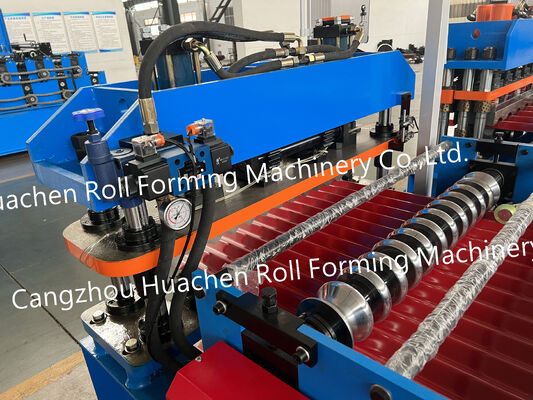

The rollers and shafts are made from 45# steel with quenching and plating treatment, with a Φ70 mm shaft diameter. The cutting system uses CR12 cutter material. The specified forming speed is 15–20 m/min, with a total power configuration of 4+4 kW.

The machine requires a 380 V / 50 Hz / 3-Phase power supply and is configured for industrial color steel tile production applications.

45# Steel Rollers and Shafts

The machine uses 45# steel for both the rollers and shafts.

The roller material is specified as high-quality 45# steel, supporting the machine's forming configuration. The shafts are also manufactured from 45# steel, providing a defined material specification for the main shaft components.

For buyers comparing different wall panel roll forming machines, roller and shaft material are important technical specifications to review alongside the machine frame and forming requirements.

350 H Beam Machine Frame

The machine is equipped with a 350 H Beam frame.

The robust frame structure provides the main support for the roll forming system. Machine frame specifications are particularly relevant when evaluating the mechanical configuration and installation requirements of industrial roll forming equipment.

Hydraulic or Manual Decoiler

The Wall Panel Roll Forming Machine is available with either a hydraulic decoiler or manual decoiler.

The choice of decoiler can be made according to the production setup and material handling requirements. Buyers can therefore select the appropriate decoiler configuration when specifying the machine.

Wall Panel Production

This machine is intended for wall panel roll forming applications. It can be used for producing metal wall panel profiles and related components according to the required profile design.

For projects involving specific wall panel shapes, dimensions, or material specifications, the final roll forming configuration should be confirmed according to the required finished profile.

Applications

The machine can be used in applications related to:

• Metal wall panel production
• Wall panel profile manufacturing
• Hanging board panel production
• Metal building panel components
• Related roll formed wall profile production

The specific application depends on the required profile, material, and machine configuration.

Machine Configuration at a Glance

The main configuration includes:

• 45# steel rollers
• 45# steel shafts
• 350 H Beam machine frame
• Hydraulic or manual decoiler options
• Roll forming machine configuration for wall panel production

These specifications provide a practical basis for buyers evaluating a Wall Panel Roll Forming Machine for metal panel manufacturing applications.
