Main Technical Parameters
|
Forming Roller Stations
|
12Stations
|
|
Roller & Shaft Material
|
45# Steel Quenching and Plating
|
|
Diameter of Shaft
|
Φ70mm
|
|
Cutter Tool Material
|
CR12
|
|
Drive Type
|
Chain Drive
|
|
Machine Speed
|
15-20m/min
|
|
Total Power
|
4+4KW
|
|
Voltage
|
380V 50Hz3Phases
|
Product Overview

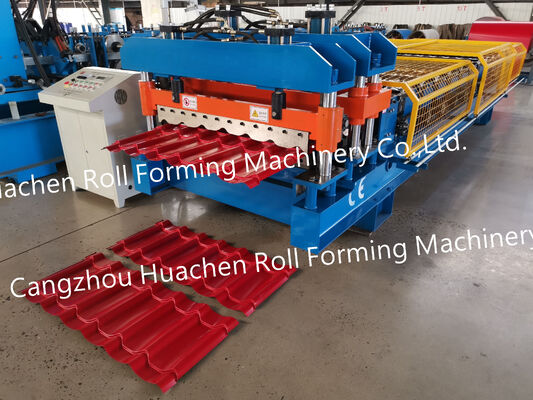

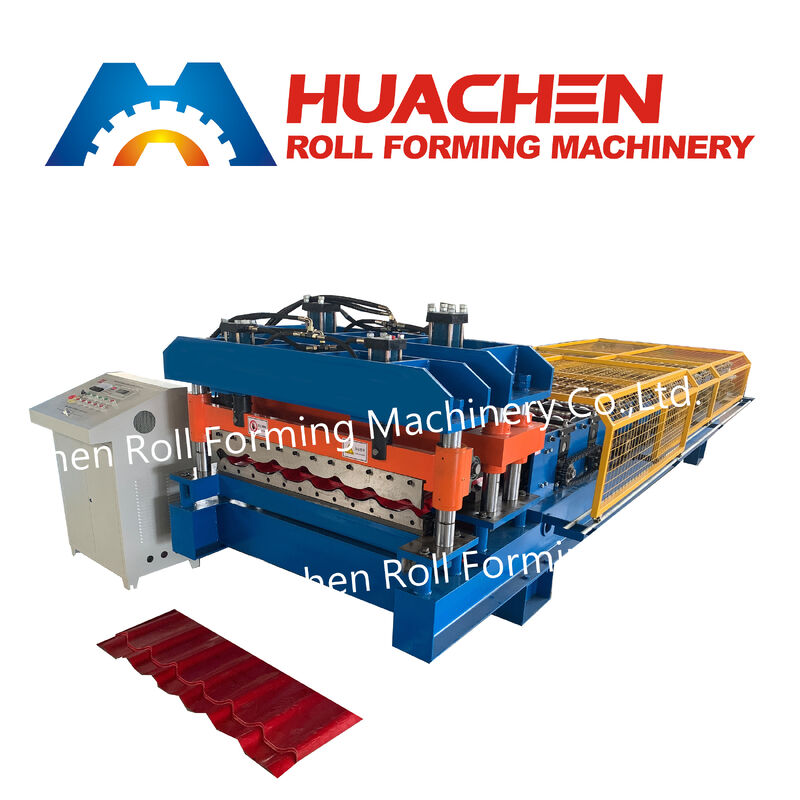

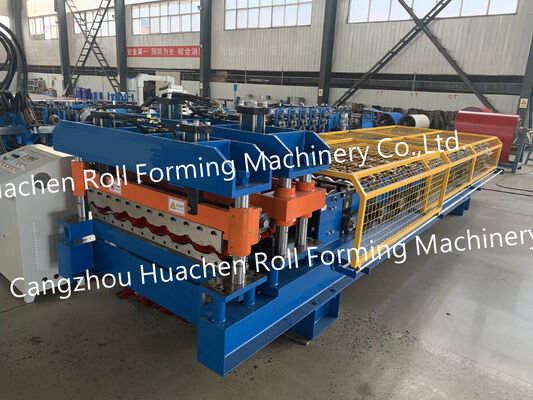

The Wall Panel Roll Forming Machine is a highly efficient industrial solution engineered for manufacturing wall panels used across diverse construction applications.The 12 Station Color Steel Tile Roll Forming Machine is engineered for continuous shaping of color steel roofing tiles. The steel sheet passes through a sequence of forming rollers, gradually taking the required roofing profile.
Applications
Suitable for manufacturing:
- Color steel roofing tiles
- Metal roofing panels
- Steel roofing profiles
- Construction roofing materials
- Metal profile sheets
Product Advantages
Progressive Forming

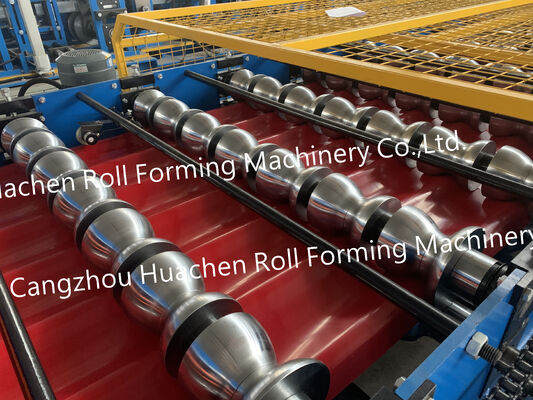

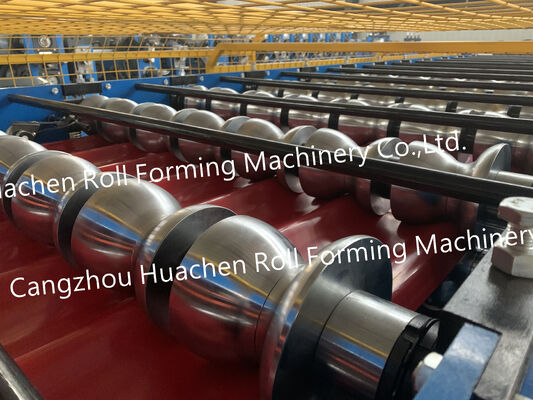

The 12-station roller arrangement forms the steel sheet through successive shaping stages.
Durable Roller & Shaft Material
45# steel with quenching and plating treatment is used for the rollers and shafts.
CR12 Cutting System
The machine is equipped with a CR12 cutter according to the specified configuration.
Chain Drive Transmission
A chain drive system is used for mechanical power transmission.
Continuous Production
The specified operating speed of 15–20m/min supports continuous roofing profile forming.
Quality & Manufacturing
The machine configuration is determined according to the confirmed technical requirements, including roller station quantity, component materials, shaft diameter, cutter material, drive type, speed, power, and voltage.
The main machine specifications can be checked before delivery to ensure consistency with the confirmed order.
Why Choose This Roll Forming Machine?
For a suitable roofing roll forming solution, buyers should evaluate the required profile, steel material, forming stations, production speed, cutting method, and electrical supply.
This 12 Station Color Steel Tile Roll Forming Machine provides a defined configuration for continuous color steel roofing profile production.
FAQ
How many forming stations does the machine have?
It has 12 roller stations.
What material is used for the rollers and shafts?
They are made from 45# steel with quenching and plating treatment.
What is the shaft diameter?
The shaft diameter is Φ70mm.
What cutter material is used?
The cutter material is CR12.
What is the machine speed?
The specified speed is 15–20m/min.
What is the required power supply?
The machine uses 380V / 50Hz / 3 Phases.
