Galvanized steel double-layer metal roof Ibr box-shaped profile roof panel cold profile manufacturing rolling forming machine

Main Technical Parameters

Product Overview

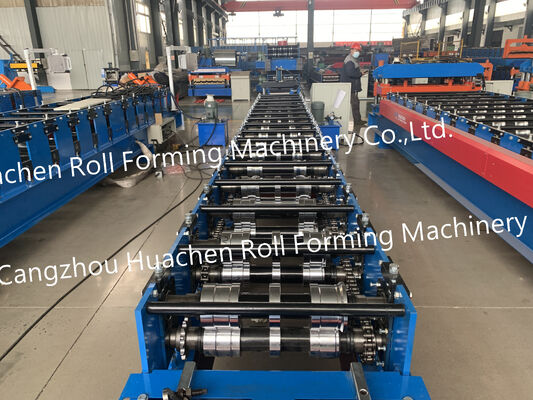

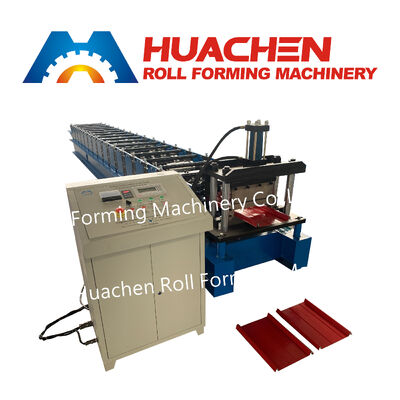

The Wall Panel Roll Forming Machine is a highly efficient industrial solution engineered for manufacturing wall panels used across diverse construction applications. The 16-Station Color Steel Tile Roll Forming Machine is developed for the continuous forming of color steel roofing tile profiles. The machine adopts a 16-station roller forming section, enabling the steel sheet to pass through multiple forming stages and gradually achieve the required profile shape.

Forming Section Design

The machine is equipped with 16 roller stations in the forming area. The steel material is guided through each station in order, and the profile is gradually shaped during the continuous roll forming process.

The number of forming stations is an important factor when selecting equipment for different color steel tile profile requirements.

Roller and Shaft Construction

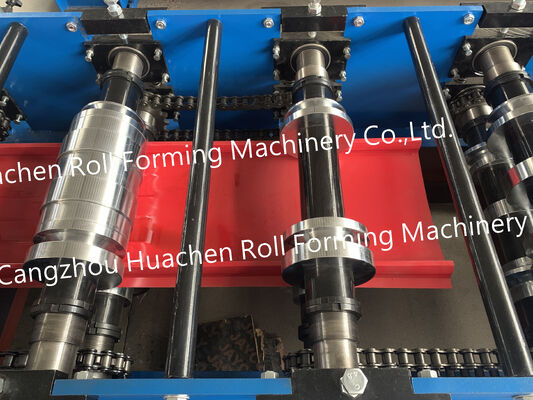

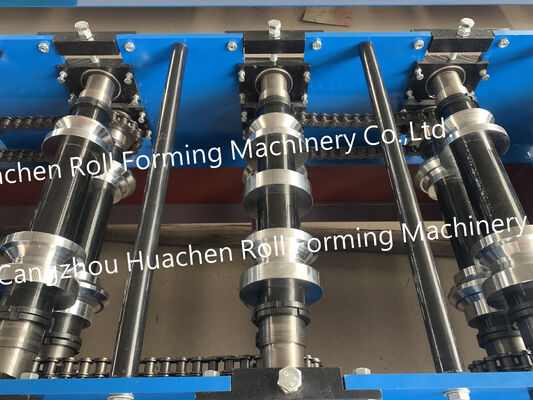

The forming rollers and shafts are manufactured from 45# steel.

According to the machine specification, these components receive quenching and plating treatment. The system is designed with a Φ70 mm shaft diameter, which defines an important structural parameter of the forming unit.

Drive and Cutting Configuration

The machine adopts a chain drive system for transmission.

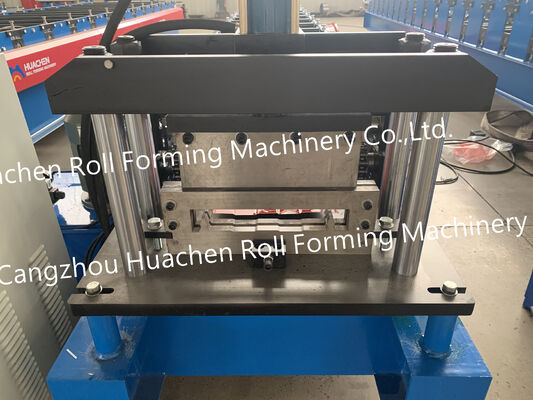

The cutting unit uses CR12 cutter material. The drive method and cutter specification are key parts of the equipment configuration and can be considered according to the required production application.

Machine Operating Speed

The specified machine speed is 15–20 m/min.

This parameter provides a reference for production planning and equipment evaluation. Actual operation may depend on the selected profile design and production conditions.

Power Supply Requirements

The machine is configured with 4+4 kW total power.

The electrical requirement is 380 V / 50 Hz / 3 Phases. Before installation, users should confirm that the available power supply matches the machine specification.

Application Fields

The 16-Station Color Steel Tile Roll Forming Machine is designed for continuous production of color steel roofing tile profiles.

Typical application areas include:

• Color steel tile manufacturing
• Roofing profile production
• Metal sheet forming
• Roofing material processing
• Building profile manufacturing

The final equipment configuration should be selected according to the required finished profile and production requirements.

Main Configuration Overview

The machine includes:

• 16 roller stations
• 45# steel rollers and shafts
• Quenching and plating treatment
• Φ70 mm shaft diameter
• CR12 cutter
• Chain drive transmission
• 15–20 m/min machine speed
• 4+4 kW total power
• 380 V / 50 Hz / 3-Phase electrical supply

These specifications provide a clear technical reference for customers evaluating a 16-Station Color Steel Tile Roll Forming Machine for roofing profile production.
