Product Description

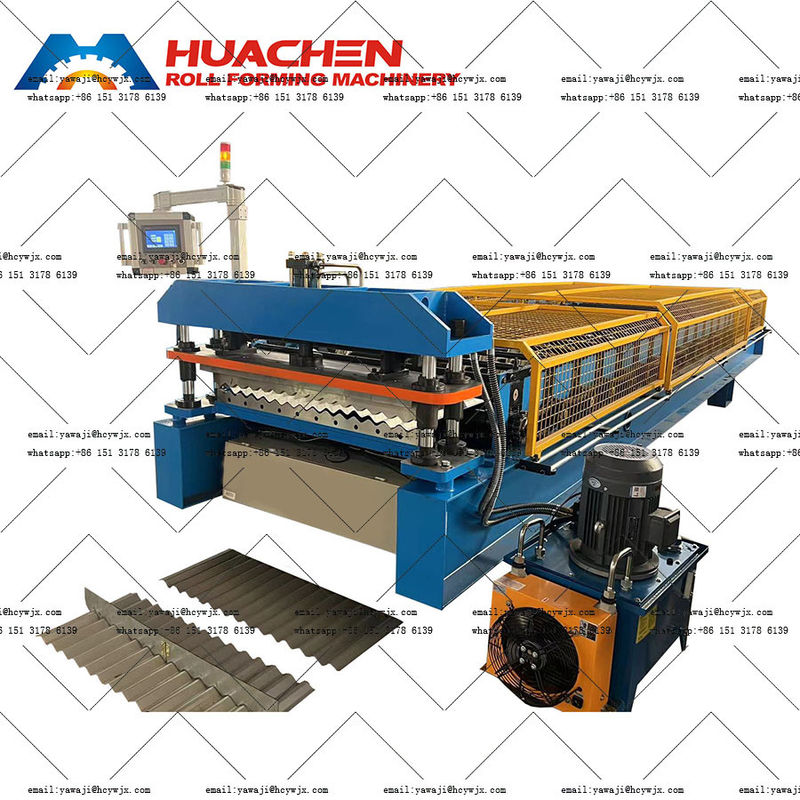

Arc tile pressing machine is a mechanical equipment used to process metal sheets to form arc shapes. The chain drives each roller to rotate through the motor, so that the metal sheet is gradually bent and formed between the rollers. The hydraulic part drives the mold up and down by the hydraulic cylinder to roll the sheet, and the shearing part drives the cutter up and down by the hydraulic cylinder to cut the sheet according to the set size.
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Main Technical Parameters
| Material |
Type |
PPGI/GI |
| Thickness |
0.3-0.6mm |
| Width |
1220mm |
| Roller Stations |
22Stations |
| Roller & Shaft Material |
45# Steel Quenching and Plating |
| Diameter of Shaft |
Φ70mm |
| Cutter Material |
CR12 |
| Drive Type |
Chain Drive |
| Speed |
15-20m/min |
| Total Power |
4+4KW |
| Voltage |
380v 50Hz 3phases |
Component & Technical Parameters
5T Manual Decoiler
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
The plate can be accurately aligned with the feed port of the tile press, ensuring that the tile press rolls the plate evenly and accurately, which helps to improve the working efficiency of the tile press and the stability of product quality.
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.
The surface of the feed table is usually made of smooth, wear-resistant materials or coatings that will not scratch the board, avoiding scratches, abrasion and other damage to the board surface during the board conveying and loading process, and protecting the surface quality and coating integrity of the board.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi
Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
The pressure, speed and other parameters of the cutter can be adjusted according to the different materials and thicknesses of the plates to achieve effective cutting of various materials (such as color steel plates, aluminum plates, etc.) and plates of different thicknesses, making the tile press more adaptable and versatile.
