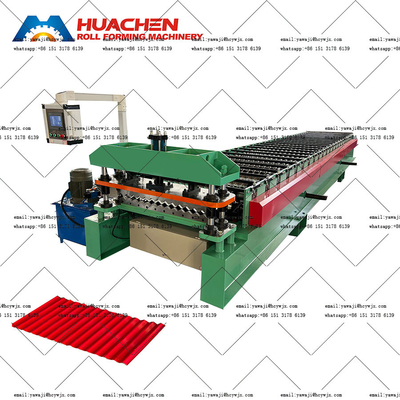

Product Description
The arc tile pressing machine uses advanced molds and hydraulic systems to accurately control the curvature of the tile. It can bend metal sheets according to the preset curvature. The arc tiles after forming have uniform curvature, precise size and small error range. For example, in the application of building roofs, the precisely formed arc tiles can be tightly spliced, effectively preventing rainwater leakage and improving the waterproof performance of the roof.
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Main Technical Parameters
| Material |
Type |
PPGI/GI |
| Thickness |
0.3-0.6mm |
| Width |
1220mm |
| Roller Stations |
20Stations |
| Roller & Shaft Material |
45# Steel Quenching and Plating |
| Diameter of Shaft |
Φ70mm |
| Cutter Material |
CR12 |
| Drive Type |
Chain Drive |
| Speed |
15-20m/min |
| Total Power |
4+4KW |
| Voltage |
220V 60Hz 3Phases |
Component & Technical Parameters
5T Manual Decoiler
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.
Shaft & Roller
Material is 45# Steel Quenching and Plating.The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Hydraulic Pump Station
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi
Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
Working Principle
The metal coil is unrolled from the unwinding system and enters the forming machine through the feed guide platform.
In the forming machine, the plate passes through each roller in turn, and the roller applies a gradually changing pressure to the plate, so that it gradually bends into an arc shape according to a predetermined trajectory.
The formed arc tile moves forward with the operation of the main machine. When it reaches the preset length, the computer control cabinet sends a signal, and the hydraulic station drives the forming shearing device to cut the tile.
The cut arc tile is transported to the designated position to complete a production cycle, and this cycle is repeated to achieve continuous production.
