High Speed Chain Transmission Corrugated Forming Machine For Wall And Siding Panel

1Set
MOQ
High Speed Chain Transmission Corrugated Forming Machine For Wall And Siding Panel
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Corrugated Ironing Wall Panel Roll Forming Machine
Usage: Wall/Roof
Machine Power: 4+4KW
Speed: 15-20m/min
Highlight:

chain transmission corrugated forming machine

,

1mm corrugated forming machine

,

1mm corrugated panel roll forming machine
Basic Infomation
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: CE
Model Number: HC18-76-836-1000
Payment & Shipping Terms
Packaging Details: Main machine is nude, the computer control box is packed by carton box.
Delivery Time: 30Days
Payment Terms: L/C,T/T
Supply Ability: 20 Sets/Month
Product Description

High Speed Corrugated Wall And Siding Panel Roll Forming Machine , Metal Wall Siding Sheet Making Machine


Wall and Siding Panel Roll Forming Machine Technical Parameter

Item NO


Description


Offered specification
1.0 Roll forming machine
1.1 Rolling speed UP to 15m/min(not include cutting time)
1.2 Rolling thickness 0.3-0.6mm
1.3 Raw material Color painted coils
1.6 Dimension About 8000×1600×1200(mm)
1.7 Effective width 836mm
1.8 Feeding coil width 1000mm
1.9 Roller stations

About 12 stations
1.10 Roller material 45#forge steel, coated with chrome
1.11 Shaft diameter Φ70mm
1.12 Transmission By chain 1.2 inch
1.13 Material of chain 45# forged steel with frequency quenching, 12A
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Tolerance 10m+-1.5mm
1.16 Hydraulic station 4KW


Main Components

No Name Quantity
1 5 ton passive de-coiler 1 set
2 Main roll forming machine 1 set
3 Control box 1 unit
4 Hydraulic station 1 unit
5 Out tables 2 units


Working Flow of Roll Forming Machine

De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→Run out table

High Speed Chain Transmission Corrugated Forming Machine For Wall And Siding Panel 0

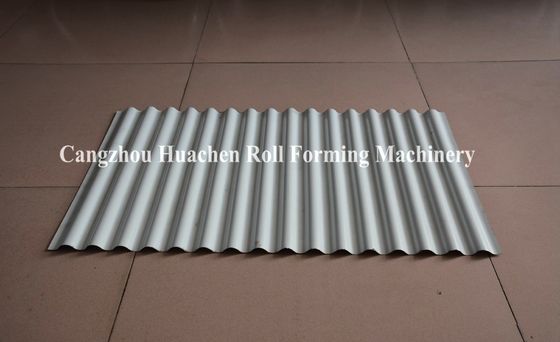

Profile of Product

High Speed Chain Transmission Corrugated Forming Machine For Wall And Siding Panel 1

Tag:

roof panel roll forming machine

roof tile roll forming machine

chain transmission corrugated forming machine
