Product Details:
|
| Material: | PPIG IG Aluminum | Thickness: | 0.3-0.6mm |
|---|---|---|---|
| Speed: | 15m/min | Color: | Blue |
| Width: | 1100mm | Roller Stations: | 25/12stations |
| Roller Shaft Material: | 45#steel With Chrome Treatment | Diameter Of Shaft: | ∅70mm |
| Cutter Material: | CR12 | Total Power: | 5.5+5.5kw |
| Voltage: | 220v 60Hz 3phases | ||
| High Light: | PPGI Corrugated Tile Roll Forming Machine,PPGI Roof Roll Forming Machine,Corrugated Tile Roll Forming Machine |
||
Product Description

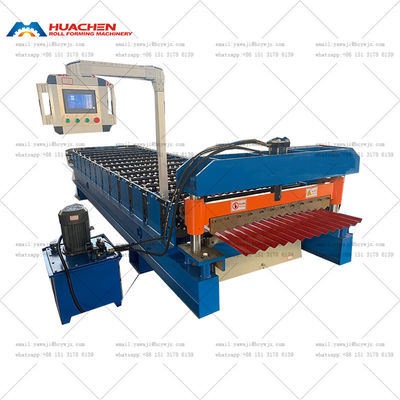

Corrugated Tile Panle Roll Forming Machine For Ppgi Roof Roll Forming Machine
Metal corrugated Tile Roof Roll Forming Machine
The corrugated tile forming machine includes: forming machine, hydraulic station, unloading rack, forming shear, control box and unloading rack.
Advantages: light weight, high strength, heavy load, good earthquake resistance
The antique tiles rolled by the die-cutting and tile forming machine have the characteristics of beautiful appearance, simple and elegant shape, elegant and unique, and noble taste.

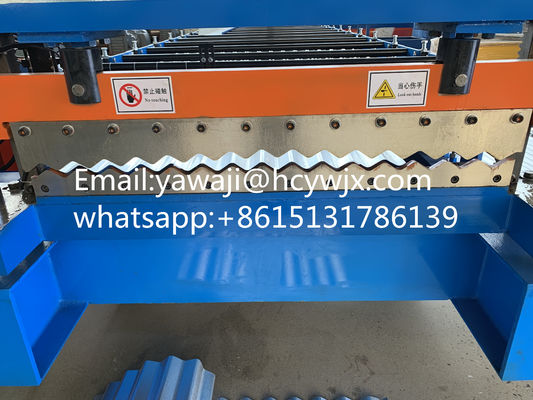

Finished Products Showing
Product Parameter
| Material | Type | PPGI/GI/Aluminum |
| Thickness | 0.3-0.6mm | |
| Width |
Corrugated: 1100mm |
|
| Roller Stations | 25Stations | |
| Roller & Shaft Material | 45# Steel with Chrome Treatment | |
| Diameter of Shaft | Φ70mm | |
| Cutter Material | CR12 | |
| Speed | 4m/min | |
| Total Power | 5.5+5.5KW | |
| Voltage | 380V 50Hz 3Phases | |
| NO. | NAME |
| 1 | Single layer roll forming machine |
| 2 | Duoble layer roll forming machine |
| 3 | Trapezoidal roll forming machine |
| 4 | Glazed tile roll forming machine |
| 5 | Currugated roll forming machine |
| 6 | Floor deck roll forming machine |
| 7 | Roll shutter door forming machine |
| 8 | C/Z/Uprofile steel forming machine |
| 9 | Ridge cap roll forming machine |
| 10 | Downspout forming machine |
| 11 | Keel roll forming machine |
| 12 | Heat retaining sandwich panel |
| 13 | Highway guardrail roll forming machine |
| 14 | Carrige board roll forming machine |
| 15 | High-frequency pipe welder |
| 16 | Hydraulic full-automatic decoiler and accessory equipments |
| 17 | Color steel roll forming machine |
| 18 | Joint-hidden type forming machine |
| 19 | Colorfull stone-coated steel |
| 20 | No-girder arched roll forming machine |
| 21 | Standing seam arching machine |
| 22 | Hydraulic crimping curving machine |
| 23 | Steel coil slitting roll forming machine |
| 24 | Windshield dust-controlling board producing line |
| 25 | Some others can be made on request |
Why Book With Us?
1.We have 20 years of experience in production and sales of tile presses
2.We know the commonly used tile types in each region and can recommend them to customers
3.We have an excellent design and production team that can design and manufacture according to customer needs.
4.We have our own company and welcome customers at any time
5.We can help you contact the shipping company and we can also deliver to your door if you need.
