4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations

4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations
4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations
4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations 4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations

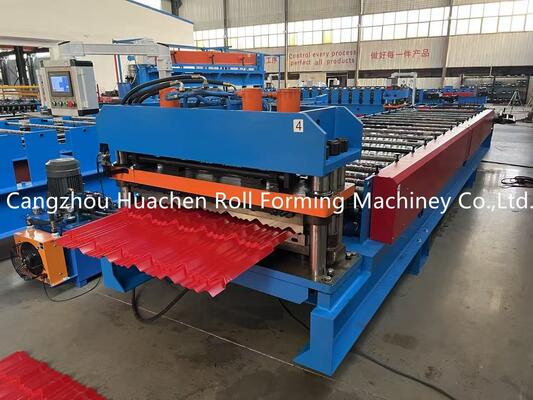

Large Image :  4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC25-196-1000-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30 days
Payment Terms: T/T,L/C
Supply Ability: 20 sets/month
Contact Now

4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 1000mm,1200mm Roller Stations: 12Stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: Φ70mm
Cutter Material: CR12 Drive Type: Chain Drive
Speed: 4m/min Total Power: 5.5+5.5KW
Voltage: 380V 50Hz 3Phases
Highlight:

roll forming equipment

,

cold roll forming machine

4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine 1200mm Coil Width

Dominica style 1200mm coil width glazed tile metal roofing roll forming machine

Main Technical Specifications
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1000mm, 1200mm
Roller Stations 12 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 4 m/min
Total Power 5.5 + 5.5 KW
Voltage 380V 50Hz 3 phases
Component & Technical Parameters
5T Manual Decoiler
4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations 0
This component supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.
Feeding Table & Pre-Cutter
4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations 1
Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.
Shaft & Roller
4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations 2
Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.
Hydraulic Pump Station
4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations 3
Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.
Touch Screen Control Cabinet
4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations 4
Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.
Pressing Section & Cutter
4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations 5 4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations 6
Blade and pressing mould material is CR12. Features high strength, excellent hardenability, and superior wear resistance.
Output Table
4 KW Hydraulic Cutter Glazed Tile Roll Forming Machine with 1200mm Coil Width and 12 Stations 7
Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.
Spare Parts
Component Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Troubleshooting Guide
1. Oil pump cannot start, manual cannot work:
  • Zero line not fixed - voltmeter shows more than 200V normal, over 200V indicates zero line fault
  • Emergency stop button locked - rotate clockwise to release
2. Oil pump can be started but cannot be manually operated:
  • Hand auto button not in manual position or damaged
3. Manual normal but no automatic:
  • Automatic hand knob not in automatic position or damaged
  • Start button damaged
  • Knife not reversed at upper limit or upper and lower limits
  • Mold not reversed at upper limit or upper and lower limits
  • Data setting error
4. Knife keeps going up and pump is blocked:
  • Upper limit improperly adjusted or switch damaged
  • K1 and K2 reversed
  • Solenoid valve stuck - turn off oil pump and press knife to cut off, when hearing "click" sound, turn on pump and raise knife to upper limit position
5. Knife keeps moving downwards and holds pump:
  • Lower limit adjustment improper or switch damaged
  • Solenoid valve stuck - turn off oil pump and press knife to cut off, when hearing "click" sound, turn on pump to raise knife to upper limit position
6. Mold keeps going upwards and holds oil pump:
  • Upper limit improperly adjusted or switch damaged
  • K3 and K4 reversed
  • Solenoid valve stuck - turn off oil pump and press down on lift and pressure type respectively, when hearing "click" sound, turn on pump to raise mold to upper limit position
7. Mold keeps going downwards and holds pump:
  • Lower limit adjustment improper or switch damaged
  • K3 and K4 reversed
  • Solenoid valve stuck - turn off oil pump and press down pressure boosting type, when hearing "click" sound, turn on pump and raise knife to upper limit position
Additional Specifications
Parameter Value
Appearance Size 8580 × 1550 × 1510 mm
Total Power 4 + 5.5 KW
Thickness of Raw Material 0.3 - 0.6mm
Productivity 0 - 2 m/min
Diameter of Shaft Φ70mm
