5.5kw High Speed Glazed Tile Roll Forming Machine with 12 Stations for Roof Tile Manufacturing

Name: 5.5kw High Speed Glazed Tile Roll Forming Machine with 12 Stations for Roof Tile Manufacturing
Brand: Cangzhou Huachen Roll Forming Machinery Co., Ltd.
SKU: HC28-200-1000
Price: 35,950.00 USD
Availability: InStock

All Products

Glazed Tile Roll Forming Machine
(132)

Roofing Sheet Roll Forming Machine
(166)

Double Layer Roll Forming Machine
(231)

Wall Panel Roll Forming Machine
(51)

Ridge Cap Roll Forming Machine
(58)

Door Frame Roll Forming Machine
(29)

Shutter Door Roll Forming Machine
(57)

Floor Deck Roll Forming Machine
(57)

Downspout Roll Forming Machine
(32)

Slitter Cutter Machine
(30)

Cold Roll Forming Machine
(22)

CZ Purlin Roll Forming Machine
(59)

Gutter Roll Forming Machine
(50)

Stone Coated Roof Tile Machine
(11)

Highway Guardrail Forming Machine
(14)

Sandwich Panel Roll Forming Machine
(8)

Roof Sheet Crimping Machine
(12)

Corrugated Roll Forming Machine
(19)

Stud And Track Roll Forming Machine
(55)

Best Products

CE Steel Glazed Tile Roll Forming Machine 380V

Glazed Steel Tile Roll Forming Machine 220V 60Hz 3 Phase

2m/Min PLC Control Antique Glazed Tile Roll Forming Machine

Customer Reviews

Machine easy to use. The boss is very nice.

—— Mr.Angolon From Europe

This is a good manufacturer, a good English communicater, and I like your machines. It is good quality, and pretty!

—— Mr.Mark From Africa

Nice supplier! I like your swift delivery and quick production cycle, will keep in touch with you guys.

—— Mr.Jack From America

I'm Online Chat Now

5.5kw High Speed Glazed Tile Roll Forming Machine with 12 Stations for Roof Tile Manufacturing

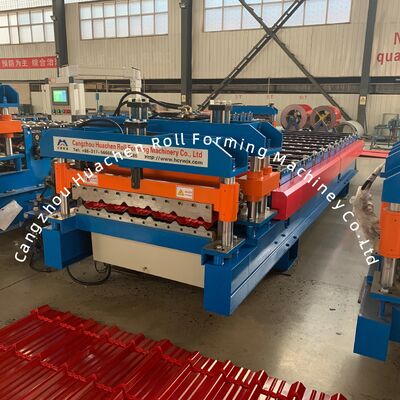

Large Image : 5.5kw High Speed Glazed Tile Roll Forming Machine with 12 Stations for Roof Tile Manufacturing

Product Details:

Place of Origin:	China
Brand Name:	HC
Certification:	CE
Model Number:	HC28-200-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time:	25-30 days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/month

Contact Now

5.5kw High Speed Glazed Tile Roll Forming Machine with 12 Stations for Roof Tile Manufacturing

Description

Material Type:	PPGI/GI	Material Thickness:	0.3-0.6mm
Material Width:	1220mm	Roller Stations:	12Stations
Roller & Shaft Material:	45# Steel Quenching And Plating	Diameter Of Shaft:	Φ70mm
Cutter Material:	CR12	Drive Type:	Chain Drive
Speed:	15-20m/min	Total Power:	5.5+5.5KW
Voltage:	380V 50Hz 3Phases(can Be Customized)
Highlight:	roll forming equipment , cold roll forming machine

5.5kW Glazed Tile Forming Machine - High Speed Roof Tile Manufacturing Machine

5.5 kW Servo Motor Glazed Tile Roll Forming Machine with high speed operation of 4 m/min

Main Technical Parameters

Parameter	Specification
Material Type	PPGI/GI
Thickness	0.3-0.6mm
Width	1220mm
Roller Stations	12 Stations
Roller & Shaft Material	45# Steel Quenching and Plating
Diameter of Shaft	Φ70mm
Cutter Material	CR12
Drive Type	Chain Drive
Speed	15-20m/min
Total Power	5.5+5.5KW
Voltage	380V 50Hz 3Phases (can be customized)

Component & Technical Parameters

Component	Description
5T Manual Decoiler	Supports coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable). Equipped with brake device to prevent machine damage from impact during operation.
Feeding Table & Pre-Cutter	Guides coil into correct position for roll forming. Includes hand pull cutting device for pre-cutting when changing color or thickness.
Shaft & Roller	Material: 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch sheets during operation.
Hydraulic Pump Station	Drives cutter for cutting operations. Uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.
Touch Screen Control Cabinet	Features automatic and manual modes. Allows setting of unit length and quantity on touchscreen. Simple and easy to operate system. Electrical components: VFD (Delta), Circuit breaker (Delixi), Contactor (Delixi), Relay (Xinling), PLC (Delta), Transformer (Delixi).
Pressing Section & Cutter	Blade and pressing mould material: CR12. Features high strength, excellent hardenability, and superior wear resistance.
Output Table	Collects formed products. Equipped with rollers to facilitate product forwarding without scratching.

Spare Parts Included

Part	Quantity
Chains	2 Sets
Solenoid Valve	1 Set
Travel Switch	2 Sets
Open-End Wrenches	2 Sets
Hexagon Wrench	2 Sets
Counter	1 Set
Wrench	2 Sets
Oil Seals	1 Set

Installation Guidelines

Important: The mold used in the tile press equipment requires one upper mold and six lower molds of the same size.

Mold Installation Procedure:

Install upper and lower molds first - lower mold mounts directly on hexagonal wheel worktable
Upper mold installs on bottom surface of slide with appropriate thickness plate
Ensure even gap around all four sides when upper and lower molds are closed
Distance between upper and lower mold should equal required blank thickness
Use above model as reference for workbench indexing
Install remaining five lower molds
Begin pressing operation after all molds are installed

Pre-Operation Checklist:

Check all connections for firmness
Verify installation bolts and nuts are tightened
Fill left and right chassis with lubrication oil
Conduct test run and observe for vibration, noise, and oil window performance
Ensure all moving parts coordinate properly
Install mold only after successful test run

Safety Warning: When installing mold, always cut power and manually move motor belt or large gear to position worktable. Raise carriage to highest point and use support object between table and slide bottom surface to prevent accidents from natural fall of anti-skid seat.
