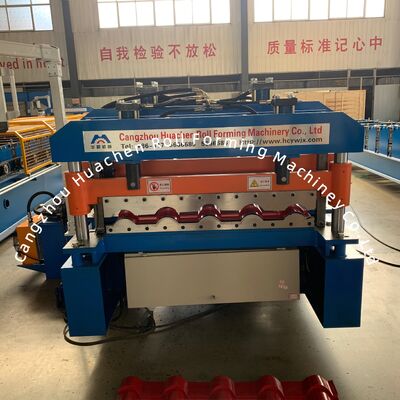

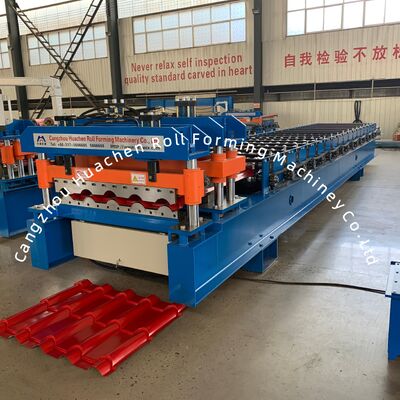

Color Steel Plate Aluminium Glazing Roofing Tile Forming Machine 18 Rows
Main Technical Parameters
| Parameter |
Specification |
| Material Type |
PPGI/GI |
| Thickness |
0.3-0.6mm |
| Width |
1219mm |
| Roller Stations |
18 Stations |
| Roller & Shaft Material |
45# Steel Quenching and Plating |
| Diameter of Shaft |
Φ70mm |
| Cutter Material |
CR12 |
| Drive Type |
Chain Drive |
| Speed |
4 m/min |
| Total Power |
5.5 + 5.5 KW |
| Voltage |
380V 50Hz 3 phases |
Component & Technical Parameters
5T Manual Decoiler
This component supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.
Feeding Table & Pre-Cutter
Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.
Shaft & Roller Assembly
Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.
Hydraulic Pump Station
Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

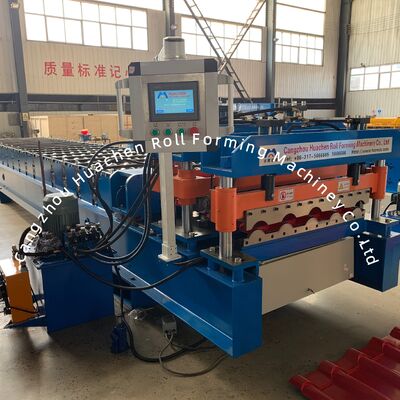

Touch Screen Control Cabinet
Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.
Pressing Section & Cutter
Output Table
Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.
Spare Parts
| Component |
Quantity |
| Chains |
2 Sets |
| Solenoid Valve |
1 Set |
| Travel Switch |
2 Sets |
| Open-End Wrenches |
2 Sets |
| Hexagon Wrench |
2 Sets |
| Counter |
1 Set |
| Wrench |
2 Sets |
| Oil Seals |
1 Set |
Main Roll Forming Machine Specifications
Material of rollers: 45# steel, roller surfaces polishing, hard plating. The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Hydraulic System and Computer Control Cabinet
Hydraulic oil: 40# hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use. PLC: EURA (Can customize as customer require).
