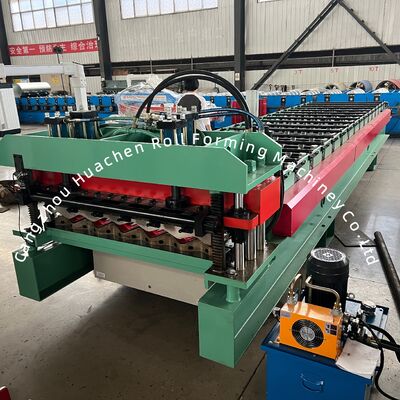

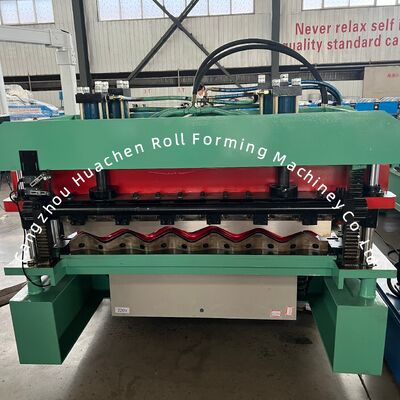

16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive

16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive
16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive
16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive 16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive 16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive 16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive

Large Image :  16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC40-200-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Contact Now

16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive

Description
Material Type: PPGI/GI Material Width: 1220mm
Material Thickness: 0.3-0.6mm Roller Stations: 16Stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: Φ70mm
Cutter Material: CR12 Drive Type: Chain Drive
Speed: 4m/min Total Power: 5.5+5.5KW
Voltage: 380V 50Hz 3Phases(can Be Customized)
Highlight:

roll forming equipment

,

cold roll forming machine

Great Building Material Aluminum Roof Glazed Tile Roll Forming Machine

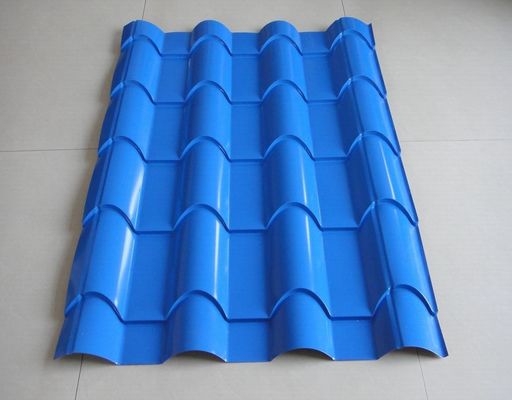

The glazed tile roofing sheet machine is used to manufacture glazed tile roofing sheets for various applications including house roofing, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different types of greenhouses. Equipment can be custom designed and manufactured according to customer specifications.

Production Process
  • Uncoiling
  • Feeding material into machine
  • Roll forming
  • Measuring length
  • Step formed
  • Auto cutting
  • Products receiving
Technical Specifications
ParameterSpecification
Material TypePPGI/GI
Thickness0.3-0.6mm
Width1220mm
Roller Stations16 Stations
Roller & Shaft Material45# Steel Quenching and Plating
Diameter of ShaftΦ70mm
Cutter MaterialCR12
Drive TypeChain Drive
Speed4 m/min
Total Power5.5 + 5.5 KW
Voltage380V 50Hz 3 phases
Machine Components
5T Manual Decoiler
16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive 0

Supports coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable). Equipped with brake device to prevent machine damage from impact during operation.

Feeding Table & Pre-Cutter
16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive 1

Guides coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

Shaft & Roller Assembly
16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive 2

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.

Hydraulic Pump Station
16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive 3

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling. Solenoid valve brand: Huade.

Touch Screen Control Cabinet
16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive 4

Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

Pressing Section & Cutter
16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive 5

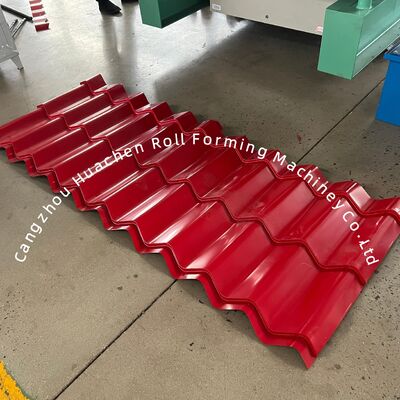

Output Table
16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive 6

Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.

Included Spare Parts
ComponentQuantity
Chains2 Sets
Solenoid Valve1 Set
Travel Switch2 Sets
Open-End Wrenches2 Sets
Hexagon Wrench2 Sets
Counter1 Set
Wrench2 Sets
Oil Seals1 Set
Additional Machine Photos
16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive 716 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive 816 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive 9
Key Advantages
Professional Expertise
15 years' rich experience! Specialized in roll forming machine since 1998. Continuous quality improvements.
Competitive Pricing
Save your money from every part! Low labor cost, convenient transportation, and complete supporting industries.
PLC Control System
Ensuring high accuracy and easy operation! Full automatic operation with simple length and quantity input.
Custom Solutions
OEM/ODM services available! Customer designs, colors, and logos are accepted with expert implementation.
Comprehensive Warranty
One-year warranty with lifetime service! Replacement parts provided free of charge for quality-related issues during warranty period.
Our Services
  • One-Year Product Warranty
  • Training and Installation Available
  • Technical Support for the Entire Machine Lifecycle
Frequently Asked Questions
Can you make the machine according to my design or photo type?

Yes. We have an experienced team to work out the most suitable design and production plan for the machine.

How can we be assured that you will deliver us quality machine with spare parts?

1. Customers can send technical people to our factory for quality checking.
2. We can send technicians to the buyer's factory for machine installation.

What is your guarantee policy?

Within the one-year period, we supply replacement parts free of charge for any damaged parts caused by quality problems. After two years, parts are available at factory cost.
