Product Details:
|
| Usage: | Stud And Track | Type: | Cold Roll Forming Machine |
|---|---|---|---|
| Thickness: | 1-2mm | Capacity: | 10m/min |
| Power: | 4.5+3kw | ||
| High Light: | metal roll forming machines,Plate roll forming machine |
||

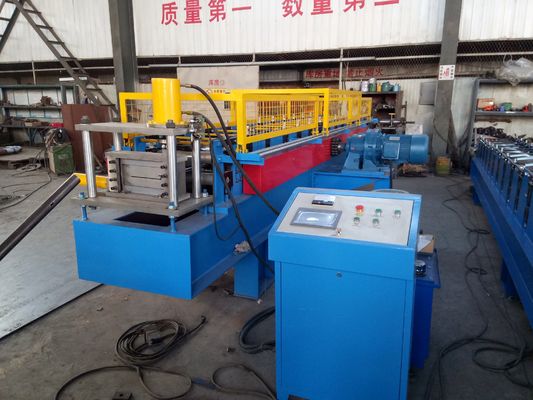

Width adjustable steel L profile cold roll forming machine with yellow safe cover
| Machine Description | Quantity | Delivery time | Container Type |
|
| light weight steel frame automatic c channel roll forming machine | 1 SET |
45 working days after receiving deposit |
One 20GP |
light weight steel frame automatic c channel roll forming machine Process Flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
| Product name | light weight steel frame automatic c channel roll forming machine | |||
| NO. | Items | Parameters | Remark | |
| 1 |
Suitable Material |
Type | GI/PPGI/AL | |
| Thickness | 1-2mm | |||
| 2 |
Product Specifications |
Length | Any length | |
| Length Tolerance | ±2mm/6m | |||
| 3 | Working Speed | 10 m/min | Standard machine | |
| 4 | Control System | Mitsubishi/Siemens PLC& transducer | Custom | |
| 5 | Total Power | 6KW | ||
| 6 | Total Weight | About 3T | Up to final design | |
Components of ceiling c channel forming machine :
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |
Forming device
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain
transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when
it is working
Feature : Ensure stability , precision and lifetime.
| No. | Main parameter of ceiling c channel forming machine | |
| 1 | Length of the main part | 3000*800*1400mm |
| 2 | Weight of main part | About 3 t |
| 3 | Voltage | 380V/50HZ3Phase (as customer’s request) |
| 4 | Roller fixer | Guide column |
| 5 | Frame |
Middle plate welded Memorial arch frame type |
| 6 | Frame thickness | 25mm |
| 7 | Drive mode | Gear or chain |
| 8 | Material of rollers | 45# steel with tempering |
| 9 | Material of shafts | 45# steel with tempering |
| 10 | Diameter of shafts | φ80mm |
| 11 | Number of rollers | 15 rollers |
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr
ain your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary th
ings.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
