Product Details:
|
| Profile: | Omega | Thickness: | 0.8-1.2mm |
|---|---|---|---|
| Speed: | 8-10m/min | ||
| High Light: | metal roll forming machines,sheet metal forming equipment |
||

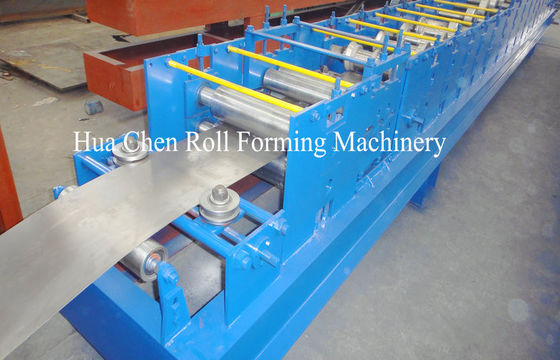

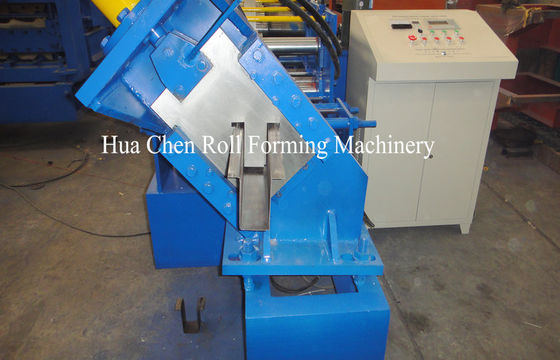

U Shape Purlin Roll Forming Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate:210mm
3. Rollers: 13 rows
4. Dimensions: 6.6*1.35*1.51m
5. Power: 5.5+4kw
6. Rolling material: shaft bearing steel(quenching)
7. Thickness of the plate:0.8-1.2mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Keel Roll Forming Machine Main parameter
|
No. |
Main parameter of Keel Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
210 mm |
|
3 |
Rollers |
13 rows |
|
4 |
Dimensions |
6600*1350*1510mm |
|
5 |
Power |
5.5+4kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
7 |
Thickness of the plate |
0.8-1.2 mm |
|
8 |
Productivity |
20m/min |
|
9 |
Diameter of the roller |
Φ50mm |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Material of the cutting plate |
Cr12 |
|
12 |
Hydraulic |
40# |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Competitive Advantage
1. elegant appearance
2. high quality steel structure
3. One year free guarantee
4. lifelong maintain
5. Panasonic PLC
