Home /Products/Cold Roll Forming Machine/Carry Channel U38x12 Roll Forming Machine

Carry Channel U38x12 Roll Forming Machine

1set
MOQ
19500USD
Price
Carry Channel U38x12 Roll Forming Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Material: GI/PPGI
Thickness: 0.45-0.55mm
Capacity: 40m/min
Name: 40m/min Roll Forming Machine
Highlight:

Carry Channel Roll Forming Machine

,

U38x12 Roll Forming Machine

,

40m/min Roll Forming Machine
Basic Infomation
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC C/U
Payment & Shipping Terms
Packaging Details: Main machine is nude,the computer control box is packed by carton box.
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Supply Ability: 20 sets/month
Product Description

Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate: C100mm U61mm

3. Rollers: 11rows

4. Dimensions: 6.1*1.15*1.51m

5. Power: 7.5+4+1.KW

6. Rolling material: shaft bearing steel(quenching)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control



Description:

Keel Roll Forming Machine Main parameter

No.

   Main parameter of Keel Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

C100mm  U61mm

3

Rollers

11rows

4

Dimensions

6100*1150*1510mm

5

Power

7.5+4+1.KW

6

Rolling material

shaft bearing steel(quenching)

7

Thickness of the plate

0.3-0.6 mm

8

Productivity

20m/min

9

Diameter of the roller

Φ50mm

10

Voltage

380V 50Hz 3phases

11

Material of the cutting plate

Cr12

12

Hydraulic

40#

13

Processing precision

Within 1.00mm

14

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

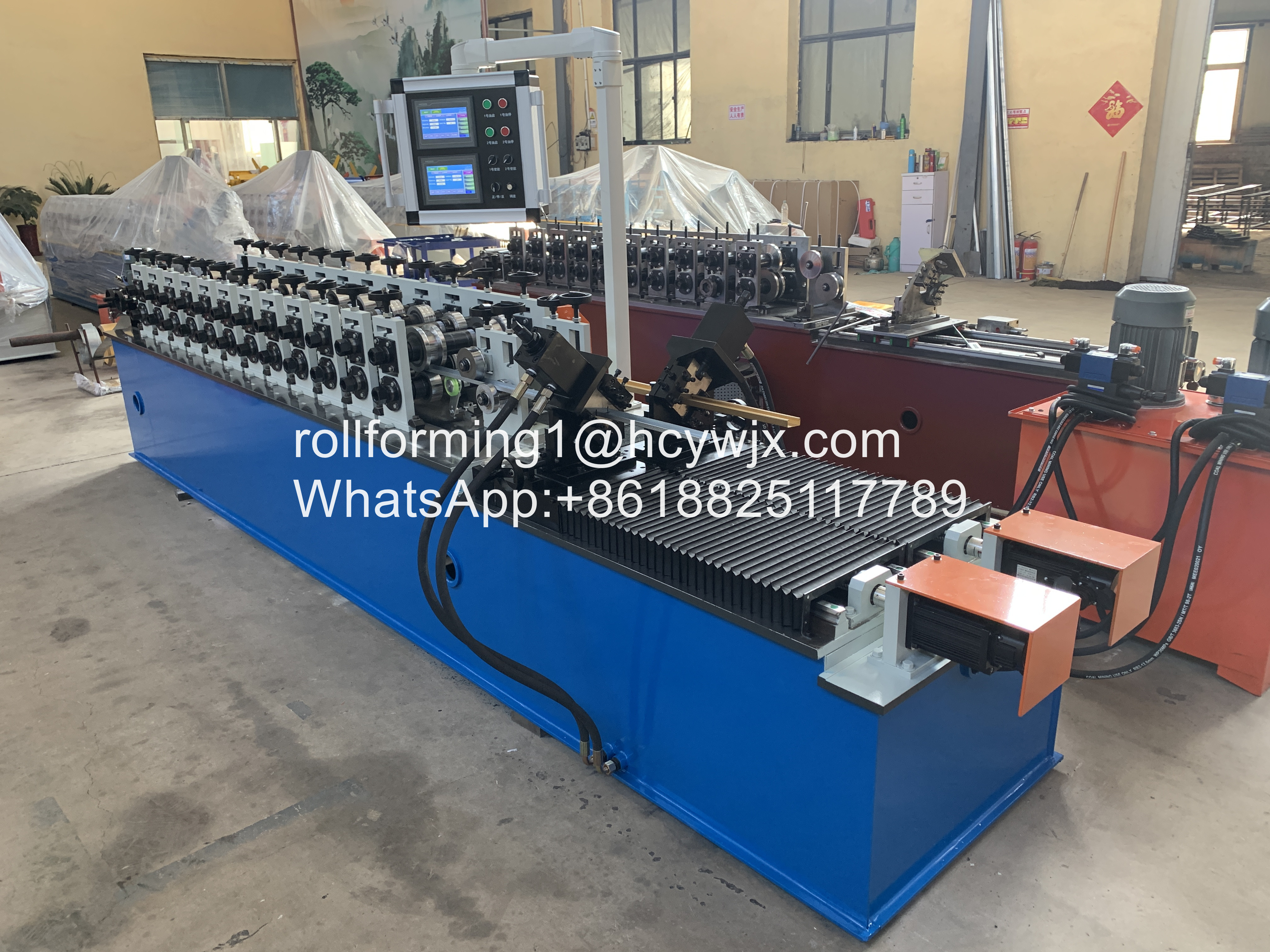

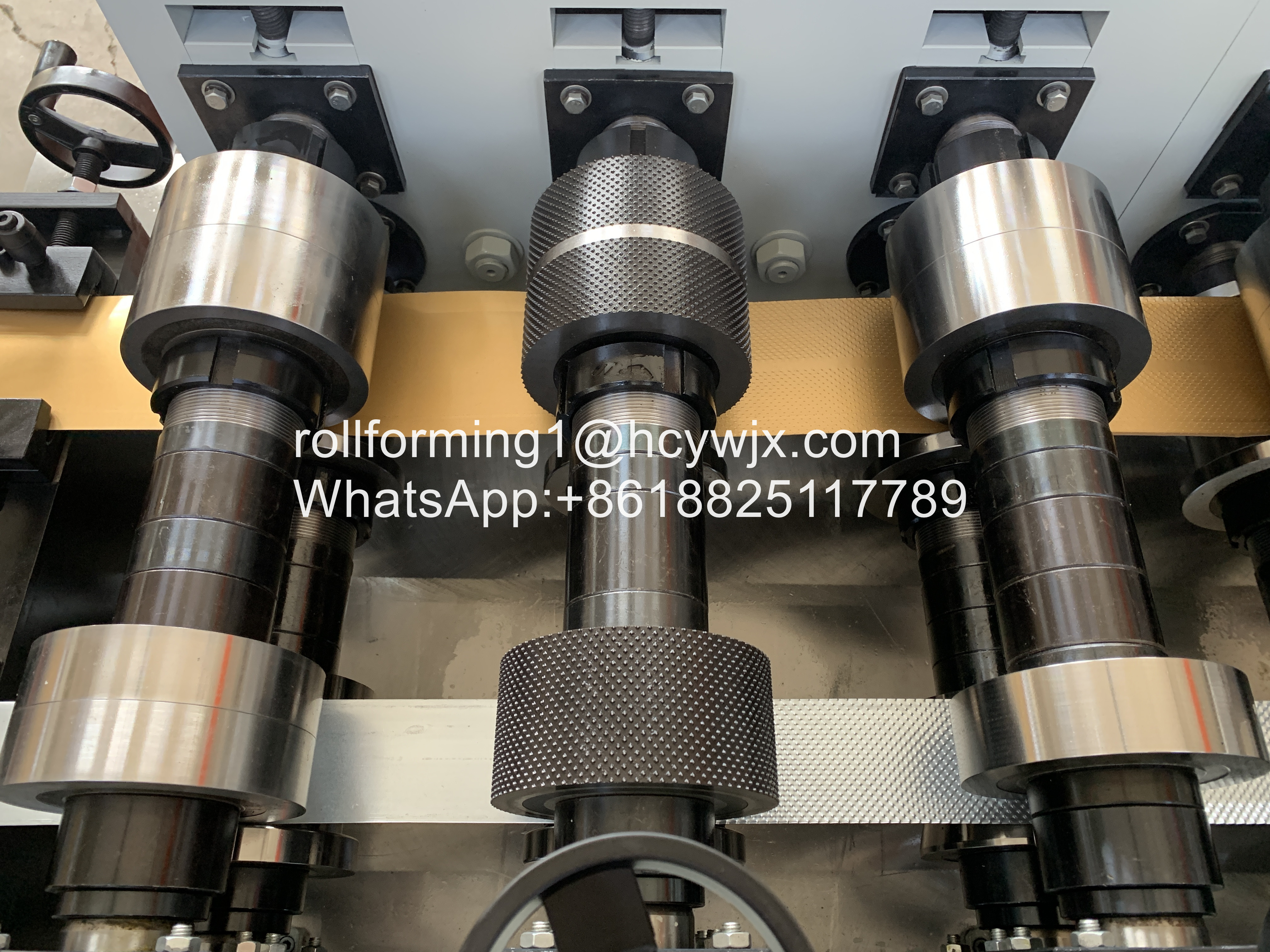

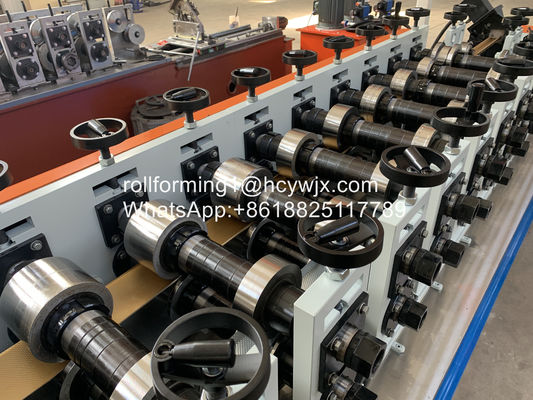

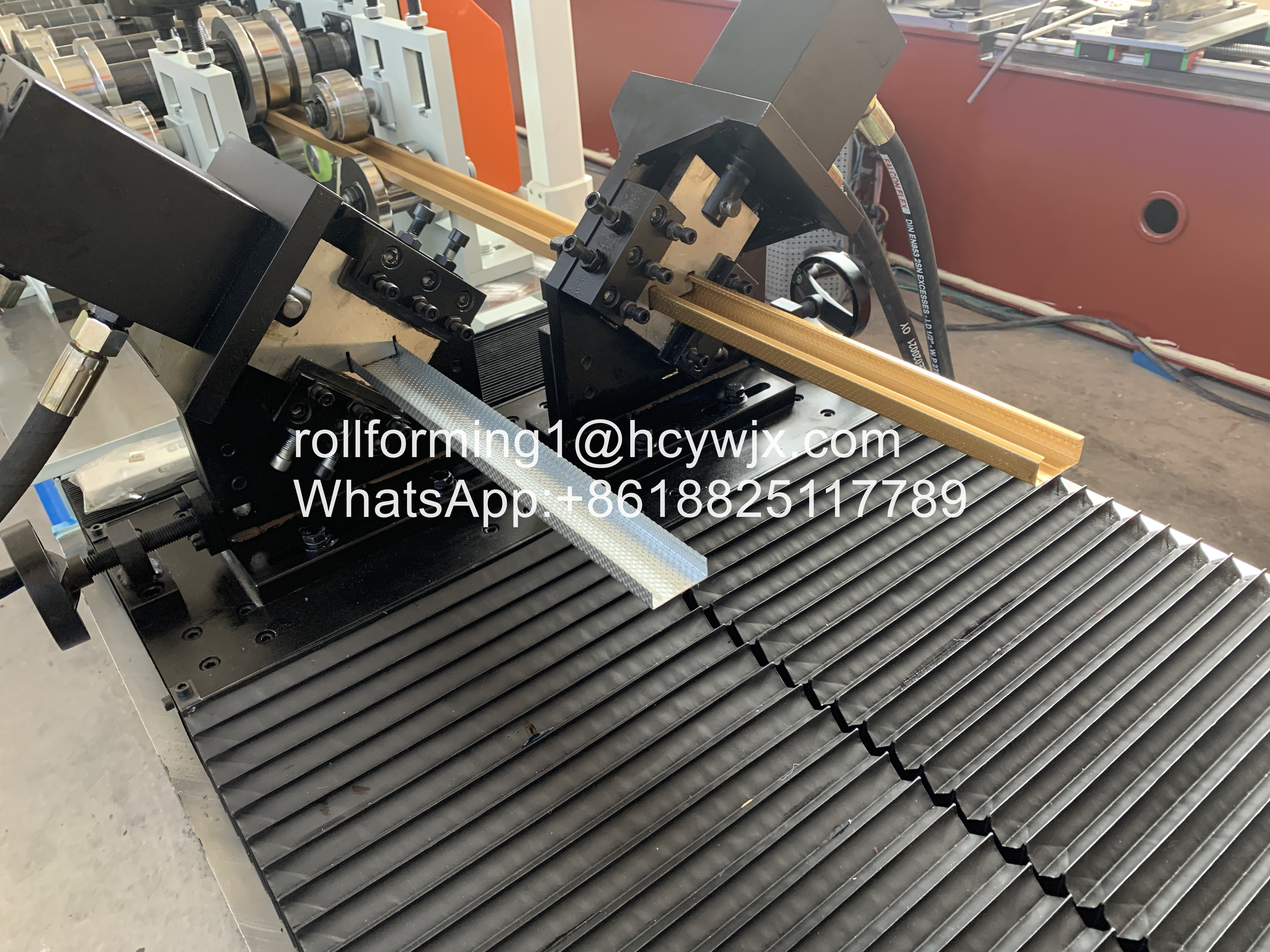

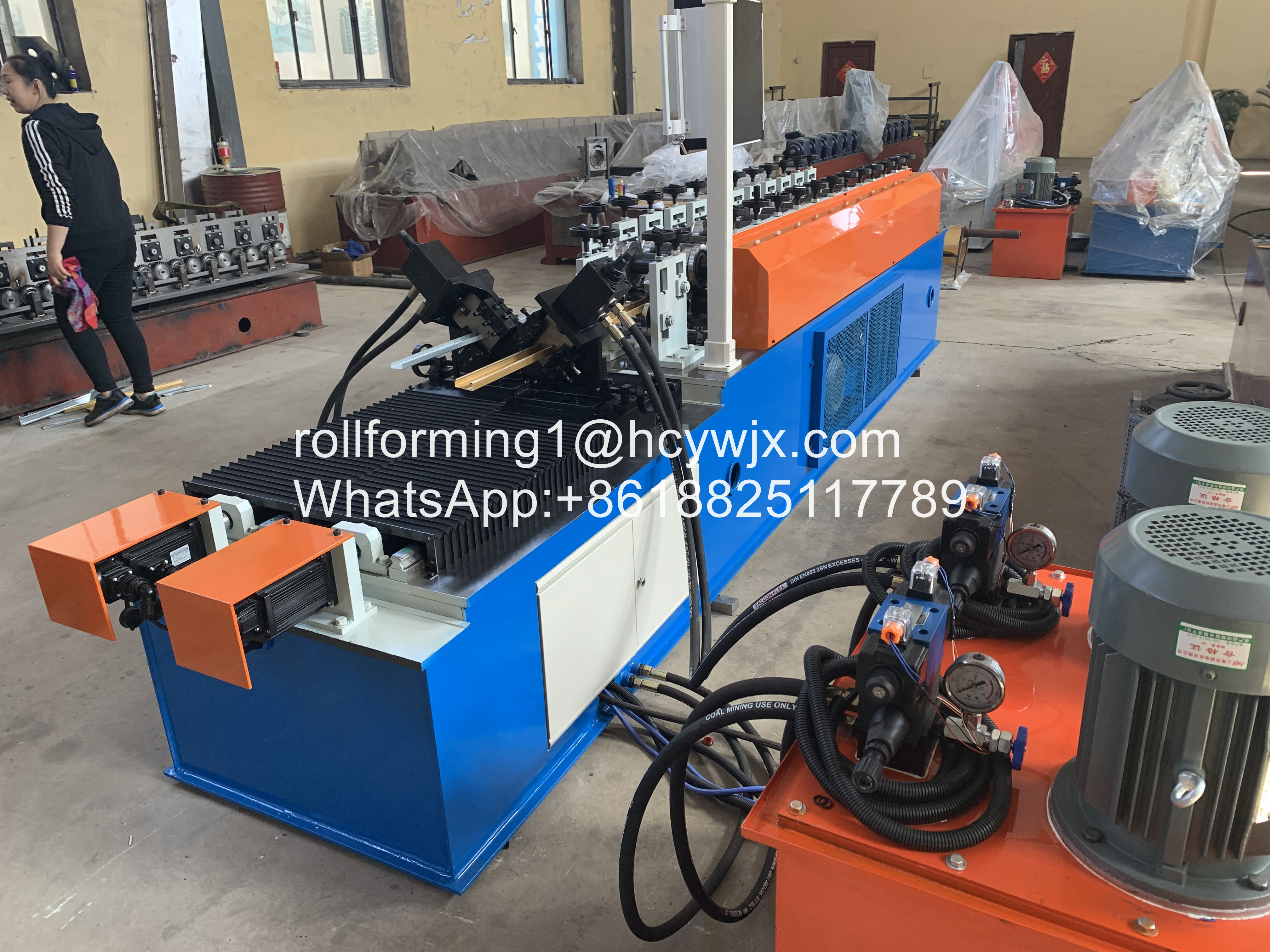

Carry Channel U38x12 Roll Forming Machine 0

Carry Channel U38x12 Roll Forming Machine 1

Carry Channel U38x12 Roll Forming Machine 2

Competitive Advantage

1. ISO/CE certification

2. 20sets/ month

3. high-speed production

4. easy operate, easy maintain

5.One year free warranty

Carry Channel U38x12 Roll Forming Machine 3
