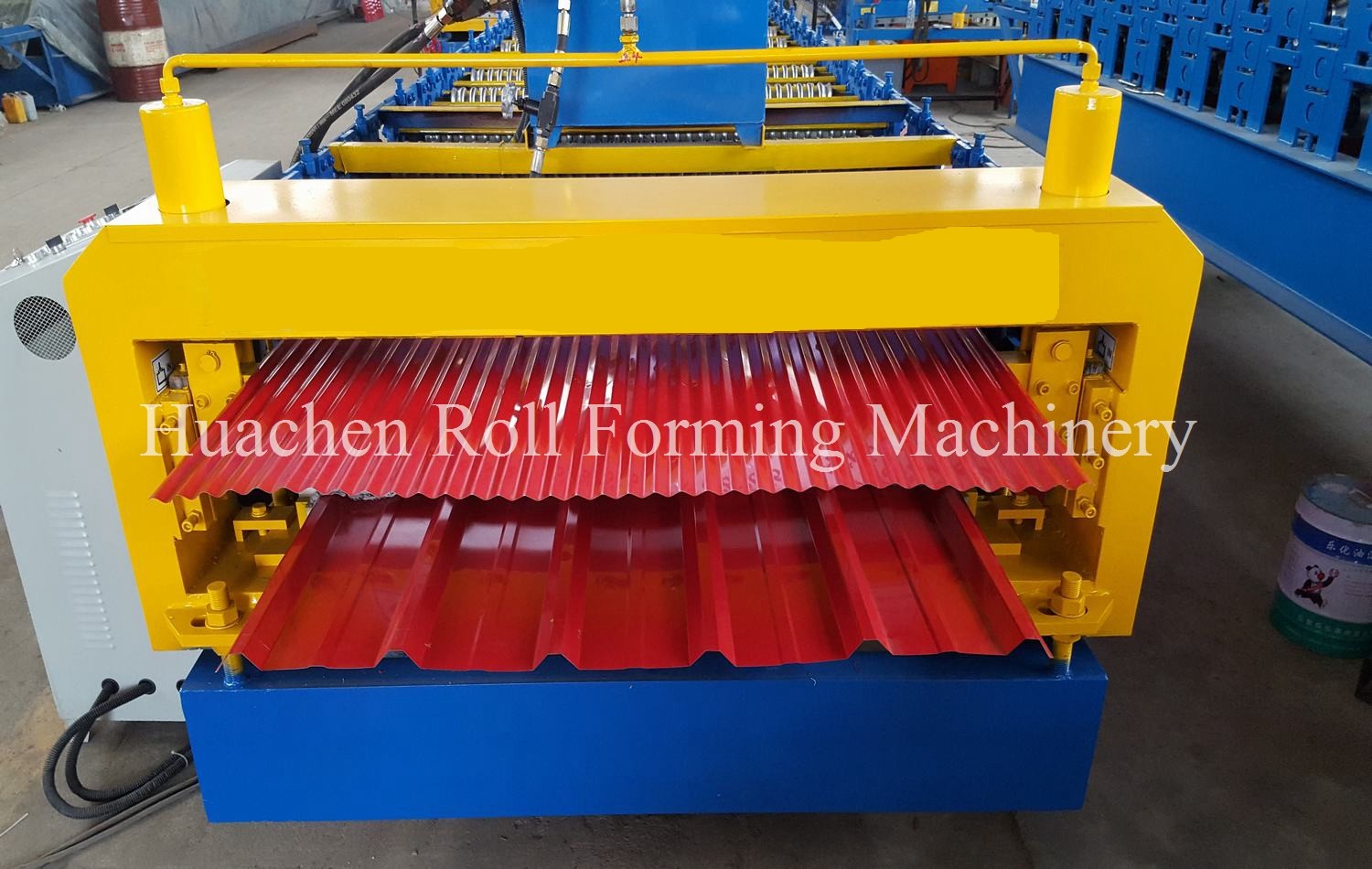

High Speed Double Layer Roll Forming Machine Panasonic PLC Control System

High Speed Double Layer Roll Forming Machine Panasonic PLC Control System
High Speed Double Layer Roll Forming Machine Panasonic PLC Control System
High Speed Double Layer Roll Forming Machine Panasonic PLC Control System High Speed Double Layer Roll Forming Machine Panasonic PLC Control System

Large Image :  High Speed Double Layer Roll Forming Machine Panasonic PLC Control System

Product Details:
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO/CE
Model Number: HC25-8
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 12000-17000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

High Speed Double Layer Roll Forming Machine Panasonic PLC Control System

Description
Power(W): 5.5KW Warranty: 18 Month
Cutting Method: Hydraulic Cut Per Month: 30 Sets
High Light:

sheet metal roll forming machines

,

corrugated roll forming machine

Double layer cold roll forming machine



Production Flow

Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products







Product Description



decoiler Manual type/ Hydraulic type
main roll forming machines

Steps: 14 stations

Roller Material: 45# steel Voltage: 380V/50Hz.

Line speed: 2- 4m/min

computer control cabinet PLC TOUCH OR TEST
hydraulic System 5.5kw
cutting mechanism mould cutting
counter One counter gauges length, pulses, and decides length
of output table It used to load the forming plate





Model Cover width(mm) Coil width(mm) Wave height(mm) Wave height(mm)
FX840 840 1000 35 125
FX860 860 1000 30 280
FX900 900 1000 21 215
FX910 910 1000 15 225
aFX1050 1050 1200 25 210
Design Double

One machine can make two type machine make in Double.

Also can design as customers requsdt.





Detail part photo
High Speed Double Layer Roll Forming Machine Panasonic PLC Control System 0High Speed Double Layer Roll Forming Machine Panasonic PLC Control System 1
After-Sales Service

1. we can produce the special machine,send your drawing to us,we can design for you.



2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.



3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.



The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.



4. engineers available to service machinery overseas.



5. if you come to visit our factory,we can book the room for you, car pick up to send.



Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!



The real data, the most professinal foreign trade team, your best trustable partner.
