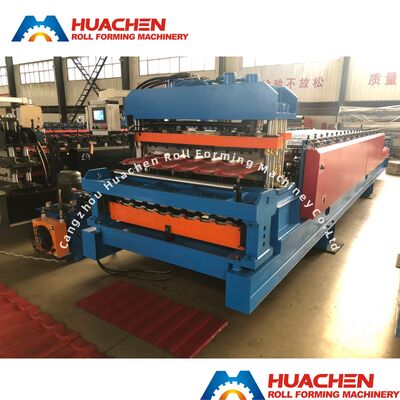

High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching

High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching
High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching
High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching

Large Image :  High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC20-18-1250
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Contact Now

High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 1250mm Roller Stations: Upper: 12 Stations; Down: 15 Stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: φ70mm
Cutter Material: Cr12 Drive Type: Chain Drive
Speed: 15m/min Total Power: 5.5+5.5kw
Voltage: 380V 50Hz 3phases(Customizable)
Highlight:

sheet metal roll forming machines

,

corrugated roll forming machine

High Speed Double Layer Corrugated Roll Forming Machine Panasonic PLC Control System
Product Overview

Double layer roll forming machine capable of forming limited site areas in two sections with quick product transformation. This affordable solution combines two models into one unit, reducing plate replacement time and increasing output rate.

Technical Specifications
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1250mm
Roller Stations Upper: 10 Stations; Down: 15 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (can be customized)
Component Details
Component Description & Specifications
5T Manual Decoiler High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching 0 Supports coil and enables rotary movement.
  • Bearing capacity: 5T
  • Inner diameter: 470-530mm (adjustable)
  • Equipped with brake device to prevent machine damage
Feeding Table & Pre-Cutter High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching 1 Guides coil into correct position and directs to roll forming section. Includes hand pull cutting device for convenient pre-cutting during material changes.
Shaft & Roller High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching 2 Material: 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and prevent sheet scratching.
Hydraulic Pump Station High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching 3 Drives cutter for cutting operations. Uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling. Solenoid valve brand: Huade.
Touch Screen Control Cabinet High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching 4 Features automatic and manual modes. Allows setting unit length and quantity via touchscreen.
  • VFD: Delta
  • Circuit breaker: Delixi
  • Contactor: Delixi
  • Relay: Xinling
  • PLC: Delta
  • Transformer: Delixi
Pressing Section & Cutter High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching 5 Blade material: CR12. Features high strength, excellent hardenability, and superior wear resistance.
Output Table Collects formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.
Spare Parts Inventory
Part Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set

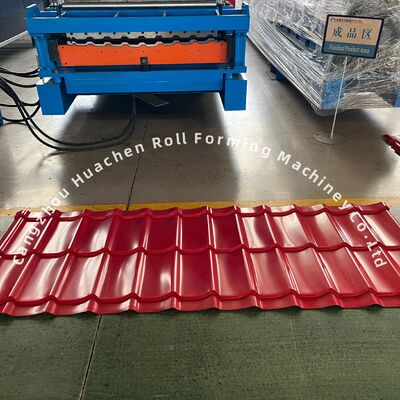

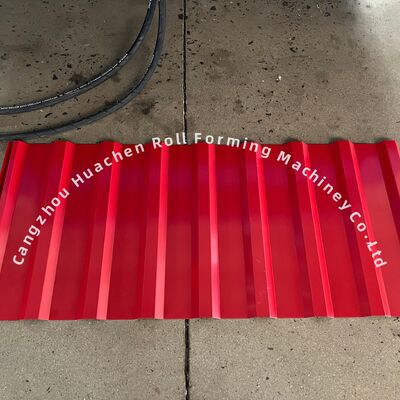

Product Images
High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching 6 High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching 7 High Speed 15m/min Double Layer Corrugated Roll Forming Machine with Panasonic PLC Control and 45# Steel Quenching 8
Why Choose Our Roll Forming Machine
  • Custom design and manufacturing of all roll forming machines according to customer specifications
  • Over 13 years of industry experience producing durable, high-performance equipment
  • Optimal balance of quality and price with accurate measurement and easy operation
  • Comprehensive services including technical guidance, production, installation, debugging, and maintenance
  • Global export presence with high reputation for quality and competitive pricing
